MODEL: SO69S | PRODUCT CODE: 54288 | 08/2016
Installation Cont.
Securing Oven to Cabinet
1. Ensure that the cabinet recess is made to the
correct dimensions as shown in Fig. 1 and Fig. 2.
2. Ensure that the cavity in which the oven will be
installed has adequate ventilation per Fig. 1 and Fig. 2

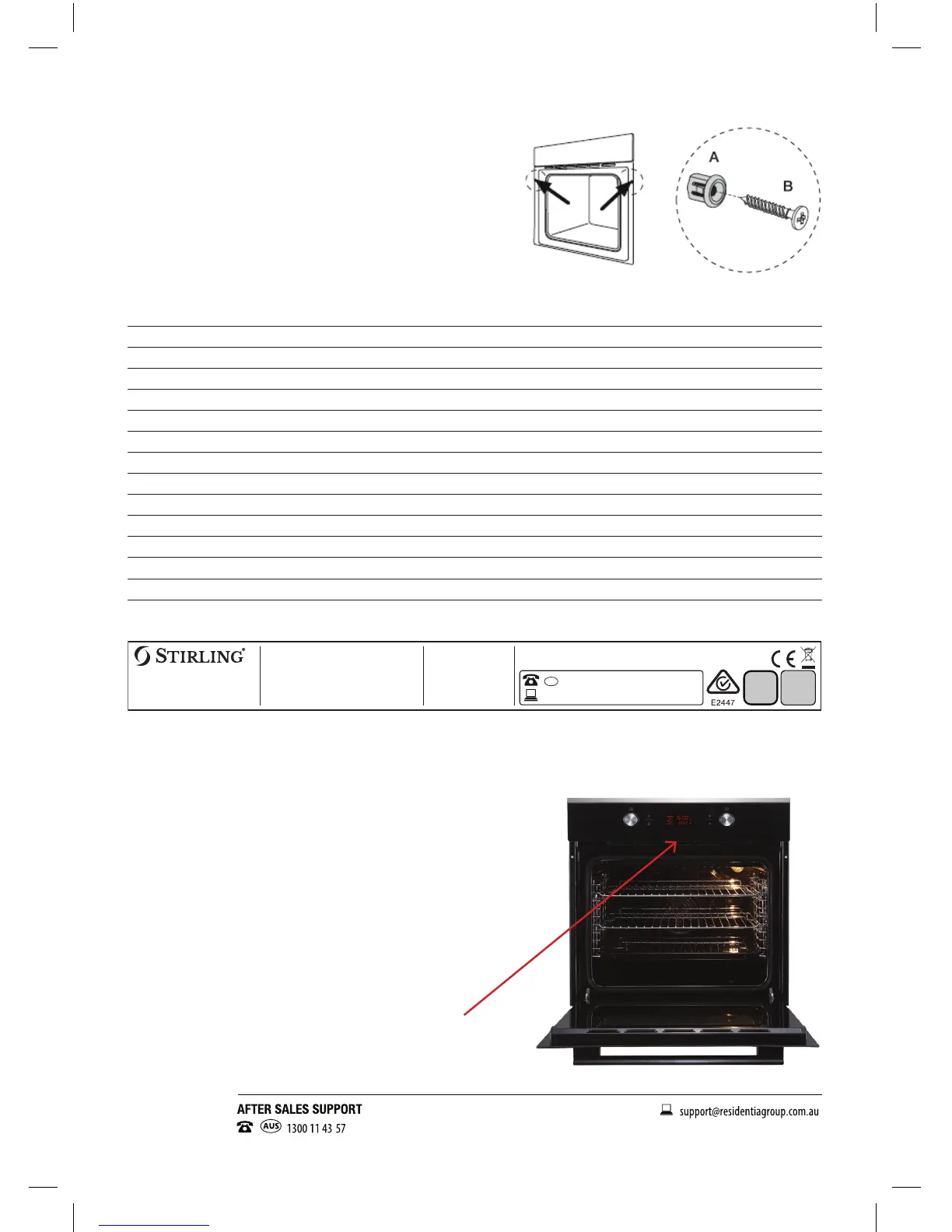

3. Fit the oven into the cabinet recess and secure
to the cabinet using the distance spacers (A) and
installation screws (B) (Fig. 3).
Specifi cation
Oven Capacity 65L usable capacity
Dimensions Refer to Fig 1.
Weight 34kg
Shelf Positions 9
Oven Door Triple glazed, removable
Oven Light Bulb 25W, 300°C, screw type pigmy
Accessories 1 × Baking tray with grill insert, 2 × oven shelves
SS side racks (already assembled)
Oven Functions 9
Oven Temperature Range 50°C to 250°C
Timer Programmable
Rated Voltage / Frequency 220–240V, 50/60Hz
Total Rated Mains Power 3.0 kW
Rating Label
SO69S
220-240V~
50/60Hz
3.0 kW
MODEL:
RATED VOLTAGE:
RATED FREQUENCY:
MAX:
CAUTION:
OBSERVE INSTALLATION
INSTRUCTIONS
BEFORE CONNECTING
TO THE MAINS!
W
2
Cooling Fan Operation
When cooking is nished, in a paused or a waiting
state and if the oven’s temperature is over 75° C, the
cooling fan will continue to operate for an additional 15
minutes. The cooling fan will turn off once the oven’s
temperature becomes lower than 75° C.
There is a ventilation opening just underneath the
control panel where the cooling fan air will be exerted.
Ventilation Slots
Fig. 3
