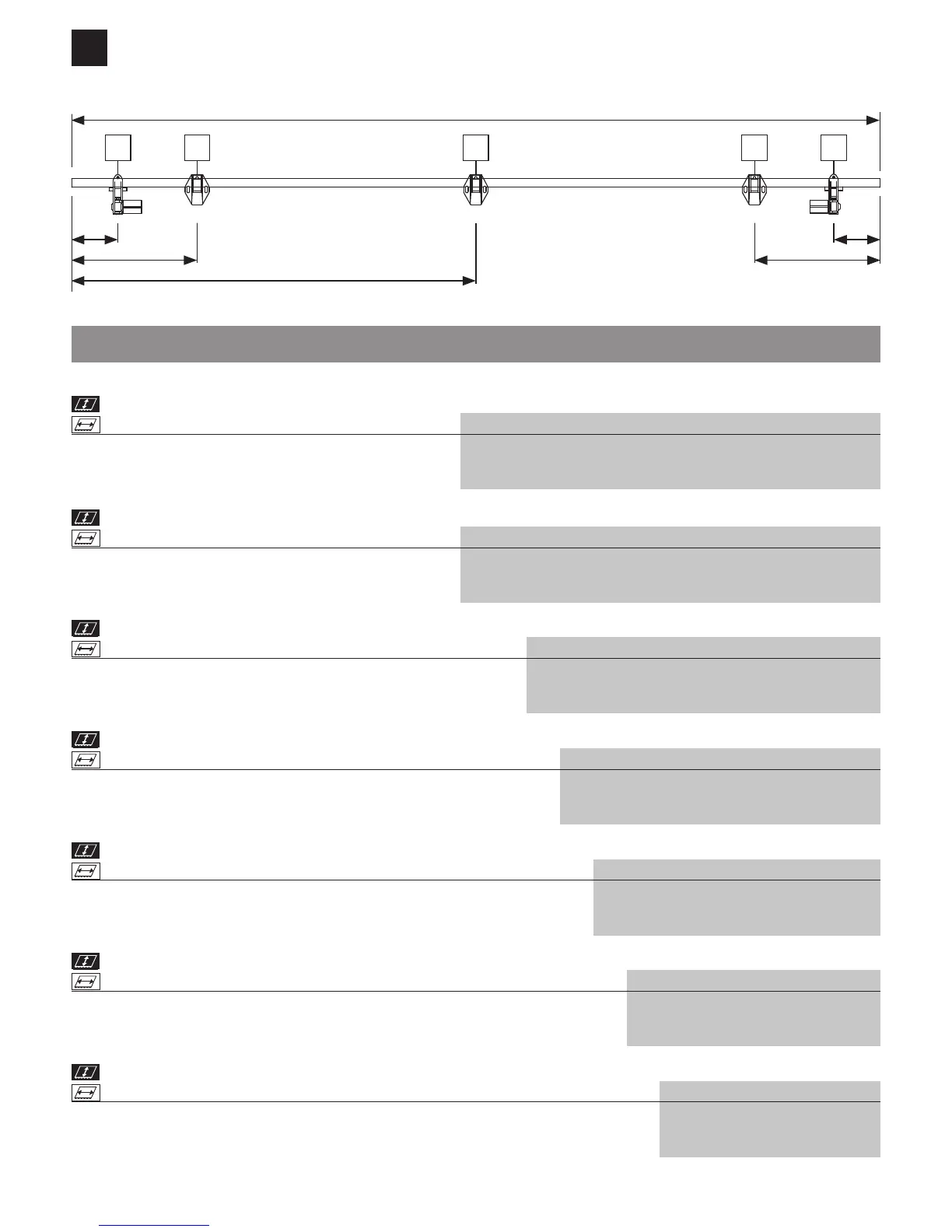

Stobag Select - Fixing Bracket Distribution: 2 Folding Arms (Select-Plus); Select-Plus S8133

www.stobag.com
- 16 -
10
b
c
K1
A1
a
K1
b
a
K2
A1
Select-Plus S8133
160cm 2 x S840
115 120 125 130 140 150 155 170 175 185 200 215 225 250 275 300 325 350 375 400 425 450
A1 a --- 10 10 10 10 10 10 10 10 10
K1 b --- 25 25 25 25 25 25 25 25 25
K2 c --- --- --- --- --- --- --- --- --- ---
180cm 2 x S840
115 120 125 130 140 150 155 170 175 185 200 215 225 250 275 300 325 350 375 400 425 450
A1 a --- --- --- 10 10 10 10 10 10 10 10 10
K1 b --- --- --- 25 25 25 25 25 25 25 25 25
K2 c --- --- --- --- --- --- --- --- --- --- --- ---
200cm 2 x S840
115 120 125 130 140 150 155 170 175 185 200 215 225 250 275 300 325 350 375 400 425 450
A1 a --- --- --- --- 10 10 10 10 10 10 10 10 10
K1 b --- --- --- --- 25 25 25 25 25 25 25 25 25
K2 c --- --- --- --- --- --- --- --- --- --- --- --- ---
225cm 2 x S840
115 120 125 130 140 150 155 170 175 185 200 215 225 250 275 300 325 350 375 400 425 450
A1 a --- --- --- --- --- --- 10 10 10 10 10 10 10 10
K1 b --- --- --- --- --- --- 25 25 25 25 25 25 25 25
K2 c --- --- --- --- --- --- --- --- --- --- --- --- --- ---
250cm 2 x S840
115 120 125 130 140 150 155 170 175 185 200 215 225 250 275 300 325 350 375 400 425 450
A1 a --- --- --- --- --- --- --- 10 10 10 10 10 10 10 10
K1 b --- --- --- --- --- --- --- 25 25 25 25 25 25 25 25
K2 c --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
275cm 2 x S840
115 120 125 130 140 150 155 170 175 185 200 215 225 250 275 300 325 350 375 400 425 450
A1 a --- --- --- --- --- --- --- --- --- 10 10 10 10 10 10 10
K1 b --- --- --- --- --- --- --- --- --- 25 25 25 25 25 25 25
K2 c --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
Select S8130
Select S8130
Select S8130
Select S8130
Select S8130
Select S8130
150cm 2 x S840
115 120 125 130 140 150 155 170 175 185 200 215 225 250 275 300 325 350 375 400 425 450
A1 a 10 10 10 10 10 10 10 10 10 10
K1 b 25 25 25 25 25 25 25 25 25 25
K2 c --- --- --- --- --- --- --- --- --- ---
Select S8130
TW /
Fixing bracket distribution with 2 folding arms /
Distribución de los soportes con 2 brazos articulados
