- 18 -
3. OPERATION
RP522 & RP652
3.1 GENERAL INFORMATION
This machine has been built according to the state-
of-the-art in compliance with the pertinent rules.
Nevertheless, these machines can still constitute a
hazard to persons and property if:
Not used for the intended purpose.
Not operated by suitably qualified and
instructed personnel.
Modified or converted in an improper
manner.
The pertinent safety regulations are not
observed.
For this reason, any person entrusted with the
operation, maintenance, or repair of the machine is
obligated to read and follow the operating
instructions and particularly to observe the safety
regulations.
If necessary, this must be confirmed by the signature
of the company using the machine.
Furthermore, the following must be made known
and observed:
Pertinent regulations for the prevention of
accidents.
Generally recognized safety rules.
Country-specific regulations.
3.2 DESCRIPTION
The RP522 and RP652 are reversible vibrating
plates operating on the basis of the twin-shaft
vibration system principle.
The engine drives the exciter on the baseplate via a
centrifugal clutch and a V-belt. The exciter
produces the vibration required for compaction as a
result of the built-in imbalance.
The machine is guided at the tow-bar grip. It is
operated with the operating controls on the tow-bar.
TAKE GREAT CARE ON DOWNSLOPES. THE
MACHINE COULD SLIP DUE TO LOOSE
MATERIAL OR IF THE SURFACE IS
SLIPPERY. DO NOT WORK ON HARD
CONCRETE OR SET ASPHALT SURFACING.

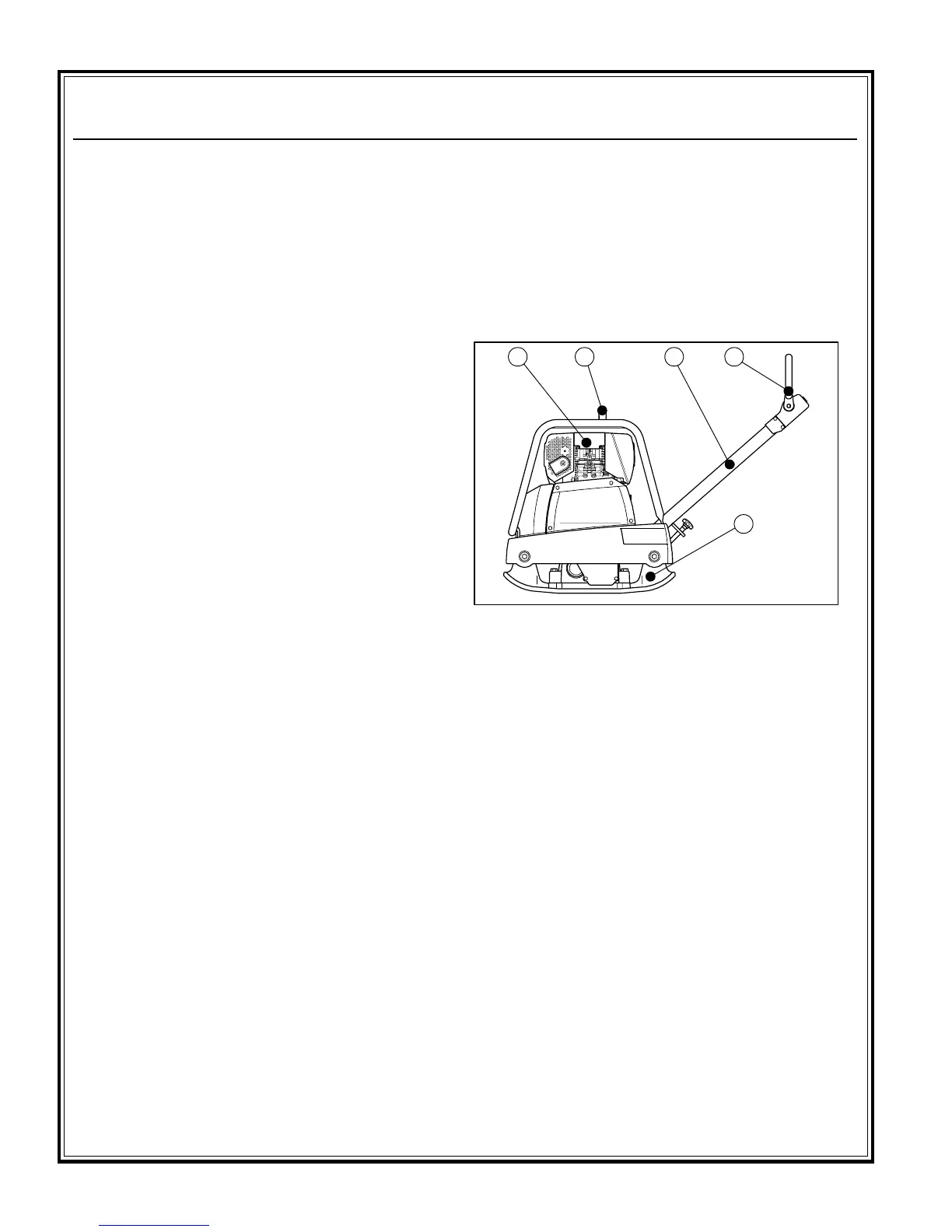

Equipment Overview
1. Engine
2. Central point suspension
3. Tow-bar
4. Operating control/tow-bar
5. Base plate with exciter
3.3 NORMAL USE
This machine is only intended for all compaction
work in the fields of Civil Engineering and Road
Construction.
All ground materials such as sand, gravel, sludge,
crushed stone, asphalt, and composite set paving can
be compacted.
3.4 IMPROPER USE
The machine can constitute hazards if not used by
instructed personnel or for other than the intended
purpose. The machine is not to be used on hard
concrete, hardened bituminous surfacing or frozen
soil.
2 3 41
5
