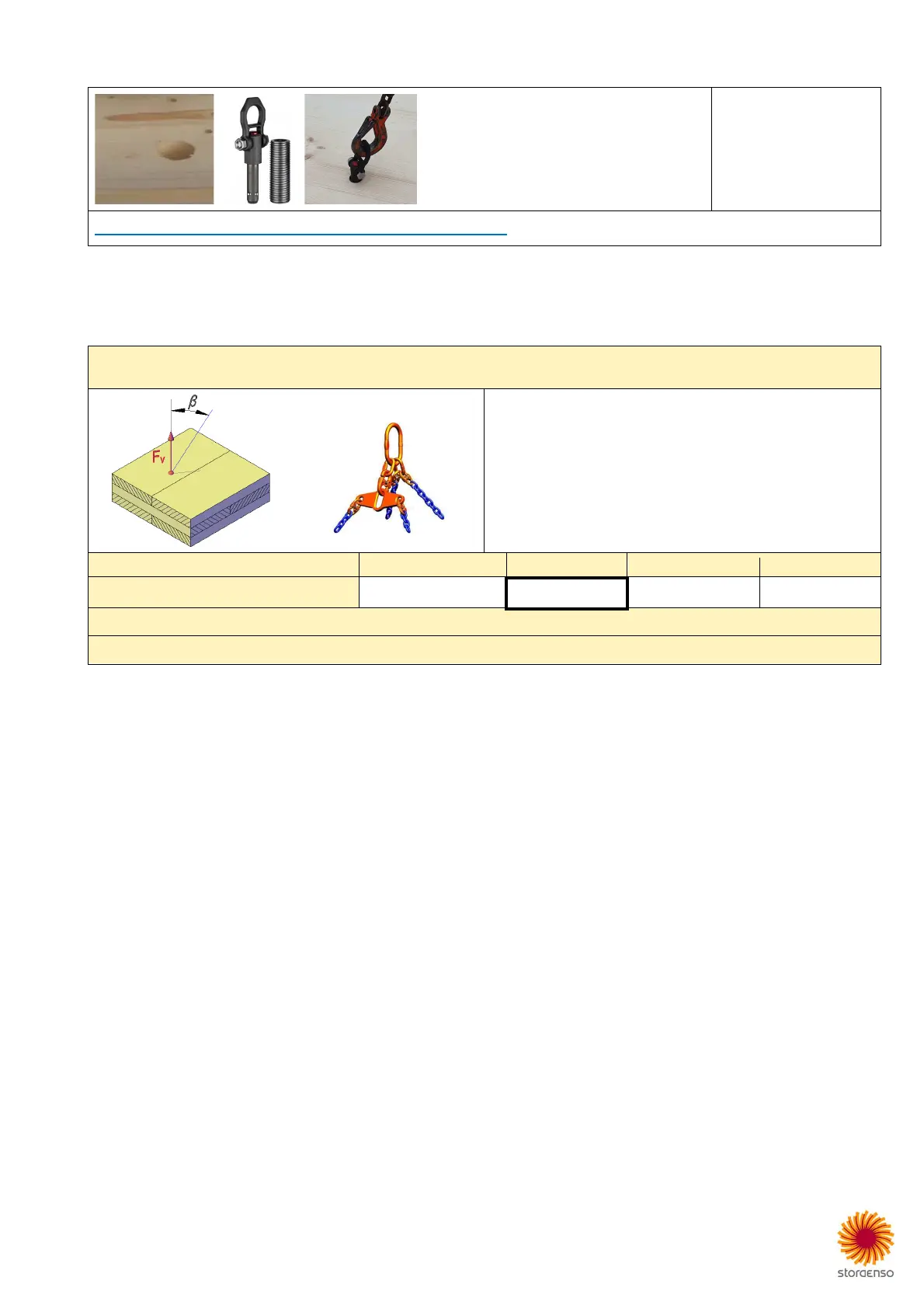

13 (16) CLT Lifting Guideline
RAMPA lifting gear
Floor
https://www.rampa.com/service/en/products/wood-applications/lifting_gear/
Use must be done according to the original instructions for use (technical data sheets). To always get the latest documents, we ask you to visit
the homepage of supplier and/or contact their technical support. Please inform Stora Enso if here indicated links do work correctly or if there is a
relevant discrepancy with summarized info below.
Regarding insert type-X is installed and on demand ball-lock anchor (load suspension type-X) can be delivered.
The lifting angle (β) is assumed to be maximal 30°.
Indicated loads are only valid for hoisting velocity up to 36 m/min = 0.6 m/s.
with load distributor *
Minimal panel thickness: 80 mm
Blind-hole: D34x75 mm
RAMPA-Insert: Type-X D36x73 mm
load distributor (or something equivalent)
indicated loads have to be reduced
To Next Page
