6 (16) CLT Lifting Guideline

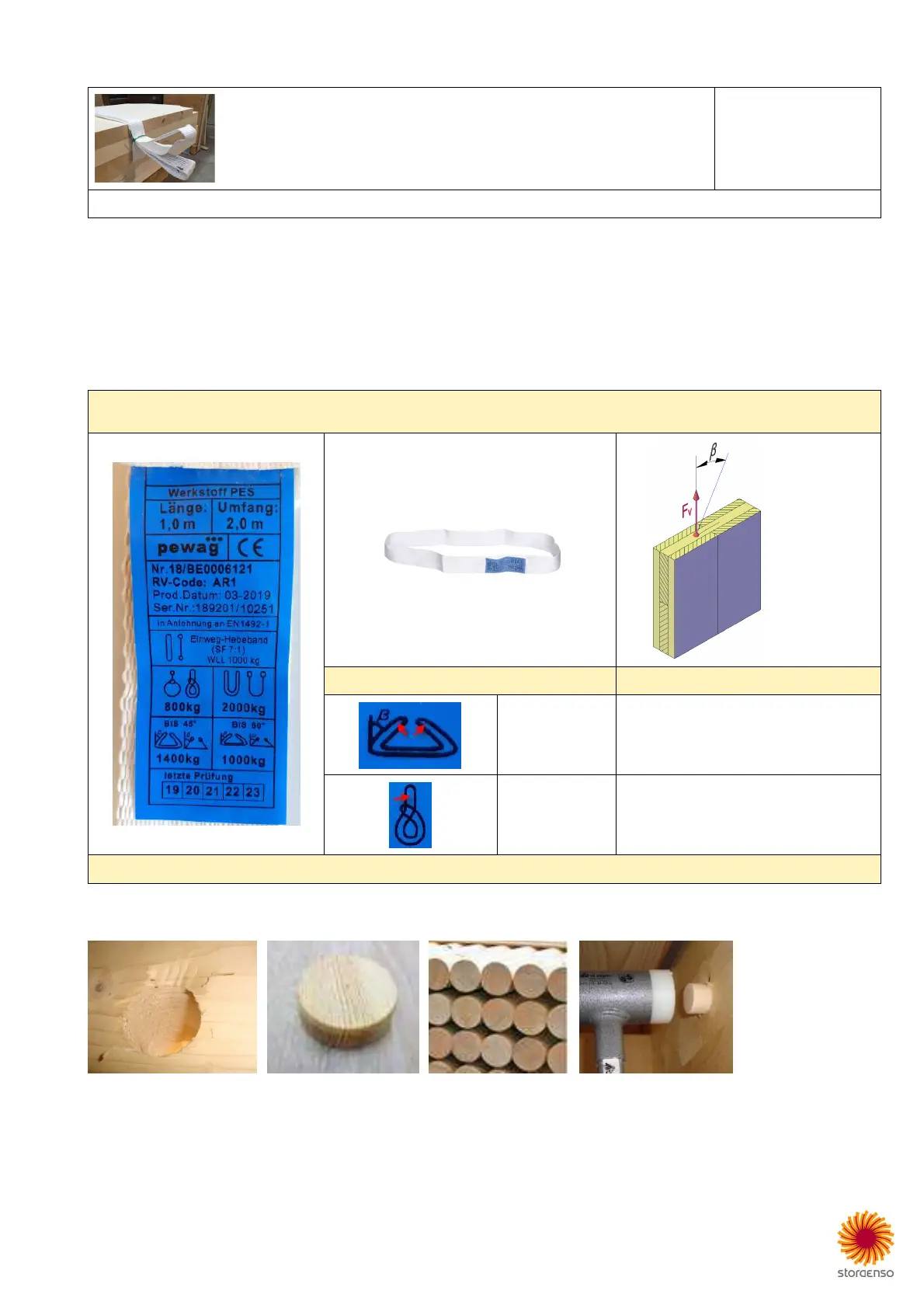

Lifting sling – one hole
Wall
This lifting device is based on a webbing sling made of 100 % Polyester (PES). Standard length is 1 meter, width is 50 mm and thickness is
about 3 mm. On request special lengths like 2 or 4 meters are available.
The sling is installed in a hole with D35 mm and it is for single-use only. “Single-use” means maximal 6 lifting cycles with the same panel. It is
not allowed to remove slings to use them for other panels.
All slings must always be checked for damages before each lifting cycle.
The standard lifting method must be “Basket”. The sling is pre-mounted and delivered this way by Stora Enso and it is not allowed to
choke afterwards. On demand exceptions are possible. But this must be clarified with Stora Enso and finally formally confirmed.
The lifting angle (β) is assumed to be maximal 30°.
Indicated loads are only valid for hoisting velocity up to 36 m/min = 0.6 m/s.
≤ 30°
“Basket”
(standard)
1000 (1400) *
“Choked”
(on request)
400 (560) *
to be formally confirmed,
values in brackets can be
The drilling diameter is 35 mm. Depending on the load, the sling can cause localised crushing of the timber around the hole. The lifting hole can
be plugged when lifting is complete, using D35x10 mm timber plugs, or D35x1000 mm wooden poles that can be delivered:
