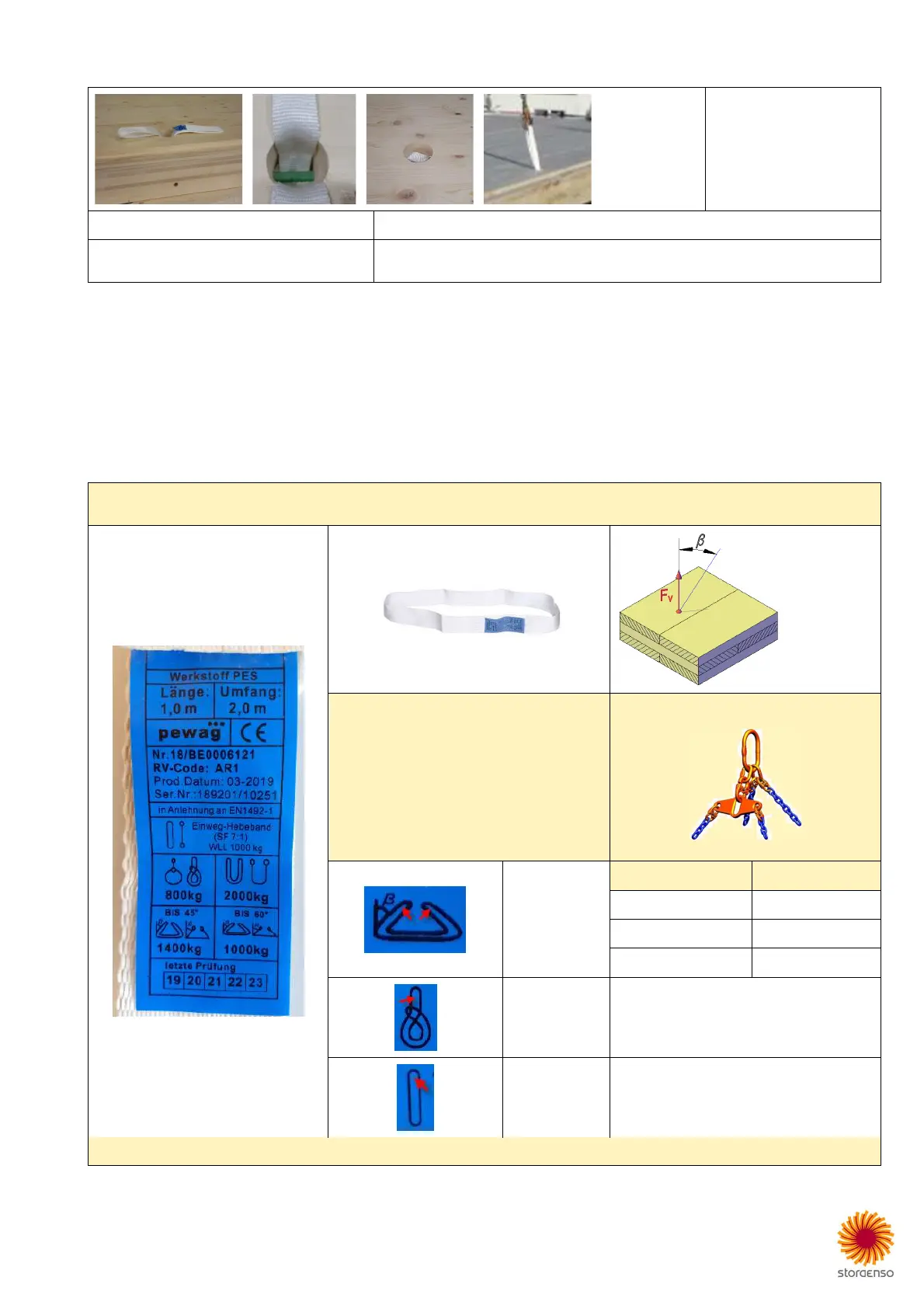

8 (16) CLT Lifting Guideline
Lifting sling – with blind-hole and dowel
Floor
declaration of conformity
Expert Opinion No. GU20-403-3-01
Graz University of Technology
The webbing sling is made of 100 % Polyester (PES). Standard length is 1 meter, width is 50 mm and thickness is about 3 mm. On demand
special lengths like 2 or 4 meters are available.
The sling is installed in a blind-hole with D68 mm and it is for single-use only. “Single-use” means maximal 6 lifting cycles with the same panel,
but you are not allowed to remove slings to use for other panels.
The sling is fixed by a steel dowel and is stuffed into the blind-hole for easy stacking and transport.
All slings must always be checked for damages before each lift.
The standard lifting method must be “Basket”. The sling is pre-mounted and delivered this way by Stora Enso and it is not allowed to
choke afterwards. On demand exceptions are possible. But this must be clarified with Stora Enso and finally formally confirmed.
The lifting angle (β) is assumed to be maximal 30°.
Indicated loads are only valid for hoisting velocity up to 36 m/min = 0.6 m/s.
≤ 30°
Lifting Method
with load distributor *
“Basket”
(standard)
CLT (mm) F
(kg)
80 - 90 500
100 - 150
> 150 1250
“Choked”
(on request)
max. 560
“Inline”
(on request)
max. 700
