Stora Enso CLT - Overview of Lifting Devices; Lifting Sling - One Hole; Lifting Sling - Two Holes; Lifting Sling with Blind-Hole and Dowel

5 (16) CLT Lifting Guideline

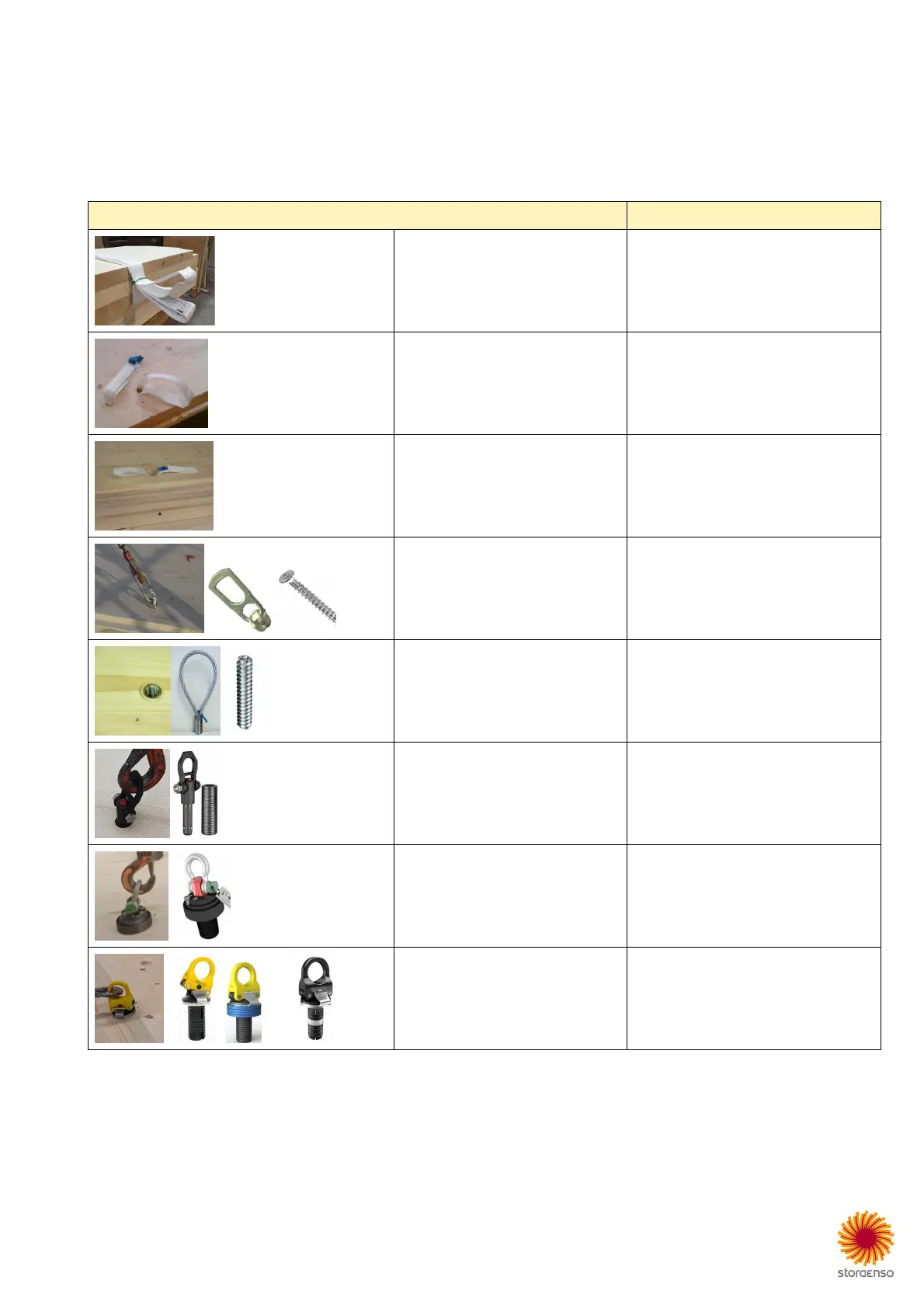

Overview lifting devices
The lifting of CLT panels is a very important and responsible topic to be considered in the early planning phase. There are different lifting devices
supported by Stora Enso, but not all can be used because of different national and/or own safety standards. It is the responsibility of the customer
to verify the lifting devices that are permitted for their projects.
Panel thickness, surface quality, building part type, mode of loading and most of all the load-bearing capacity (WLL = Working Load Limit) are
also important criteria that influence the choice of the proper lifting device.
Lifting
Device
B
uilding
P
art
T
ype
Lifting sling - one hole Wall: installed
Lifting sling - two holes Floor: installed
Lifting sling with blind-hole and dowel Floor: installed
Lifting screw with anchor
Floor: not installed; blind-hole on demand
Wall: not installed; blind-hole on request
RAMPA insert and lifting loop Floor: installed
RAMPA Lifting:
• ball-lock pin
• insert type-X
Floor: installed
Sihga Pick – blind-hole
Floor
Wall: on request
Power Clamp – blind-hole
Floor
Wall: on request
