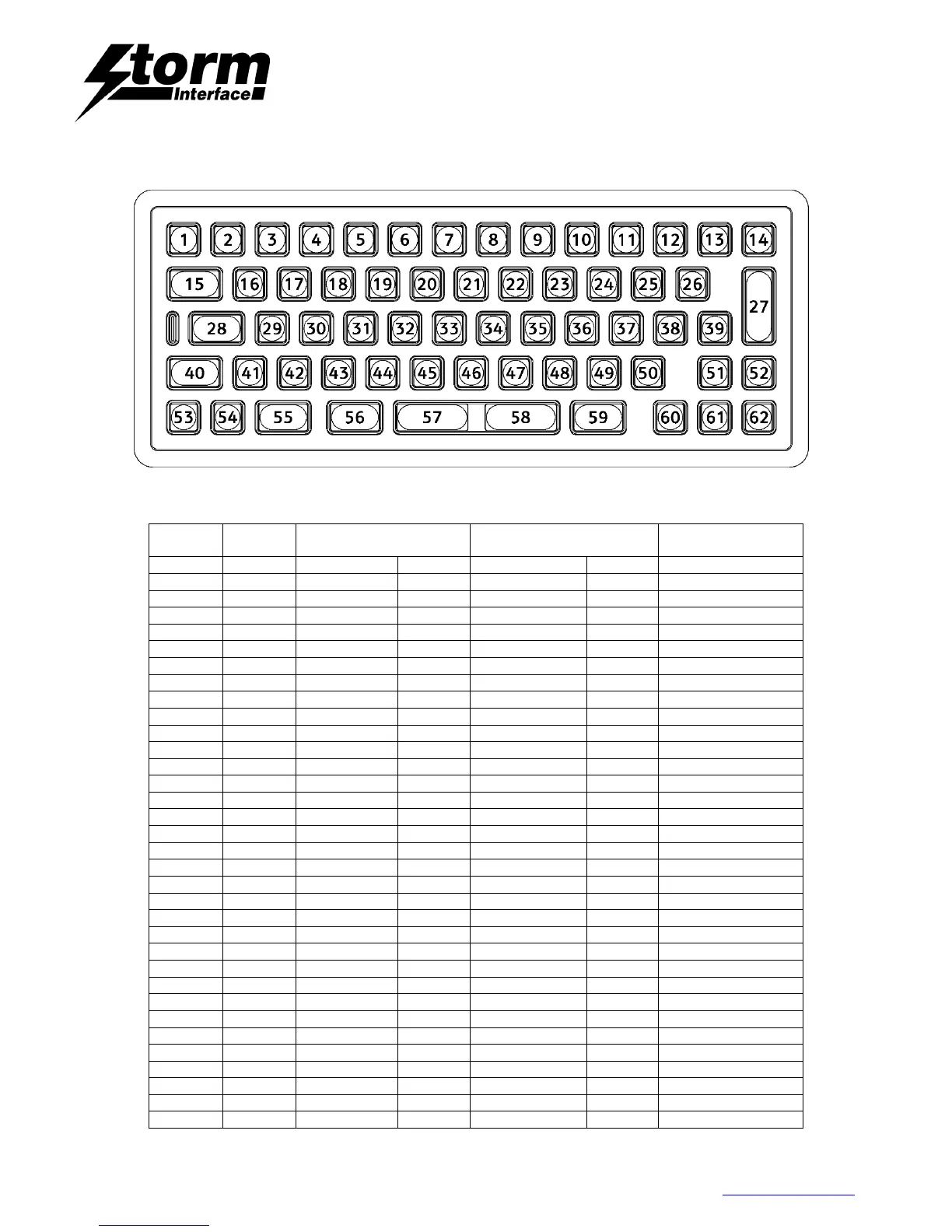

2210/12 Positions and Codes
Key
Position
Row /
Column
2210
UK Layout.
2210
US Layout.
PC/AT Code
(Code Set 2)
Base
Shifted
Base
Shifted
1
R0C0
Escape
Escape
76
2
R1C1
1
!
1
!
16
3
R1C2
2
“
2
@
1E
4
R1C3
3
£
3
#
26
5
R1C4
4
$
4
$
25
6
R1C5
5
%
5
%
2E
7
R1C6
6
^
6
^
36
8
R1C7
7
&
7
&
3D
9
R1C8
8
*
8
*
3E
10
R1C9
9
(
9
(
46
11
R1C10
0
)
0
)
45
12
R1C11
-
_
-
_
4E
13
R1C55
=
+
=
+
55
14
R3C12
Backspace
Backspace
66
15
R2C0
Tab
Tab
0D
16
R2C1
Q
Q
q
Q
15
17
R2C2
W
W
w
W
1D
18
R2C3
E
E
e
E
24
19
R2C4
R
R
r
R
2D
20
R2C5
T
T
t
T
2C
21
R2C6
Y
Y
y
Y
35
22
R2C7
U
U
u
U
3C
23
R2C8
I
I
i
I
43
24
R2C9
O
O
o
O
44
25
R2C10
P
P
p
P
4D
26
R2C11
#
~
\
|
5D
27
R4C12
Enter
Enter
5A
28
R4C0
Caps
Caps
58
29
R3C1
A
A
a
A
1C
30
R3C2
S
S
S
S
1B
31
R3C3
D
D
d
D
23
32
R3C4
F
F
f
F
2B
33
R3C5
G
G
g
G
34
