Preparation
Instructions for use • IMAGE1 PILOT • HLI417_EN_V2.0_11-2021_IFU_CE-MDR 11
5 Preparation
5.1 Unpacking the product
1. Carefully remove the product and accessories from the packaging.
2. Check the delivery for missing items and any possible damage.
3. In the case of damage, hidden defects, and short deliveries, document their nature and
extent and contact the manufacturer or supplier immediately.
4. Keep packaging for further transport.
5.2 Assembling the product
The product is attached to the operating table using a KARLSTORZ articulated stand.
Two IMAGE1PILOT products can be connected at the same time, enabling the product
to be operated in both sterile and unsterile environments.
1. Fasten the articulated stand onto the operating table and position it.

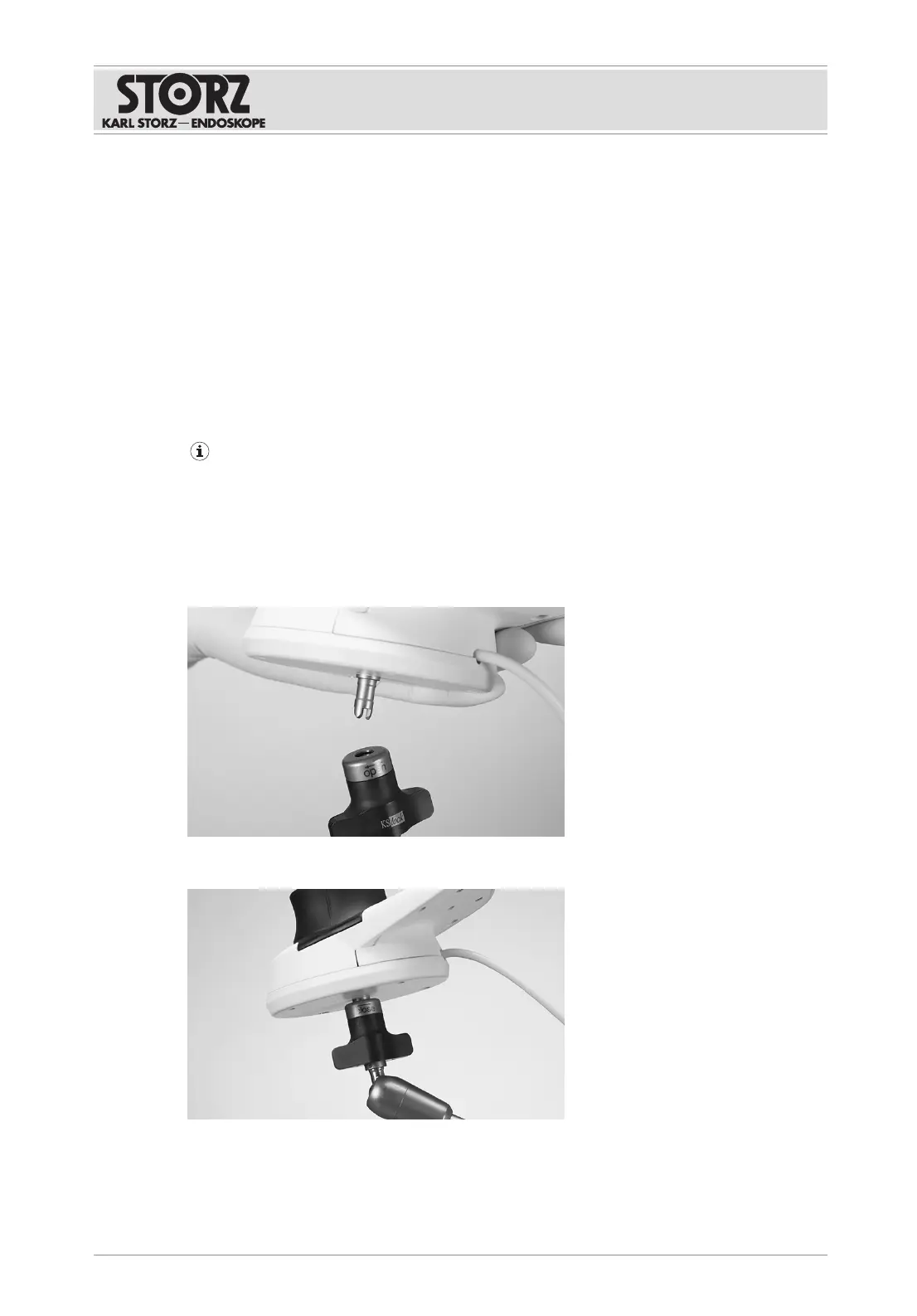

2. Open the KSLOCK quick release coupling (female) on the articulated stand by turning it in
the “OPEN” direction.
3. Insert the KSLOCK quick release coupling (male) on the bottom of the IMAGE1PILOT
until it audibly clicks into place.
4. Make sure that the product is inserted properly.
