Product description
Instructions for use • IMAGE1 PILOT • HLI417_EN_V2.0_11-2021_IFU_CE-MDR 8
4 Product description

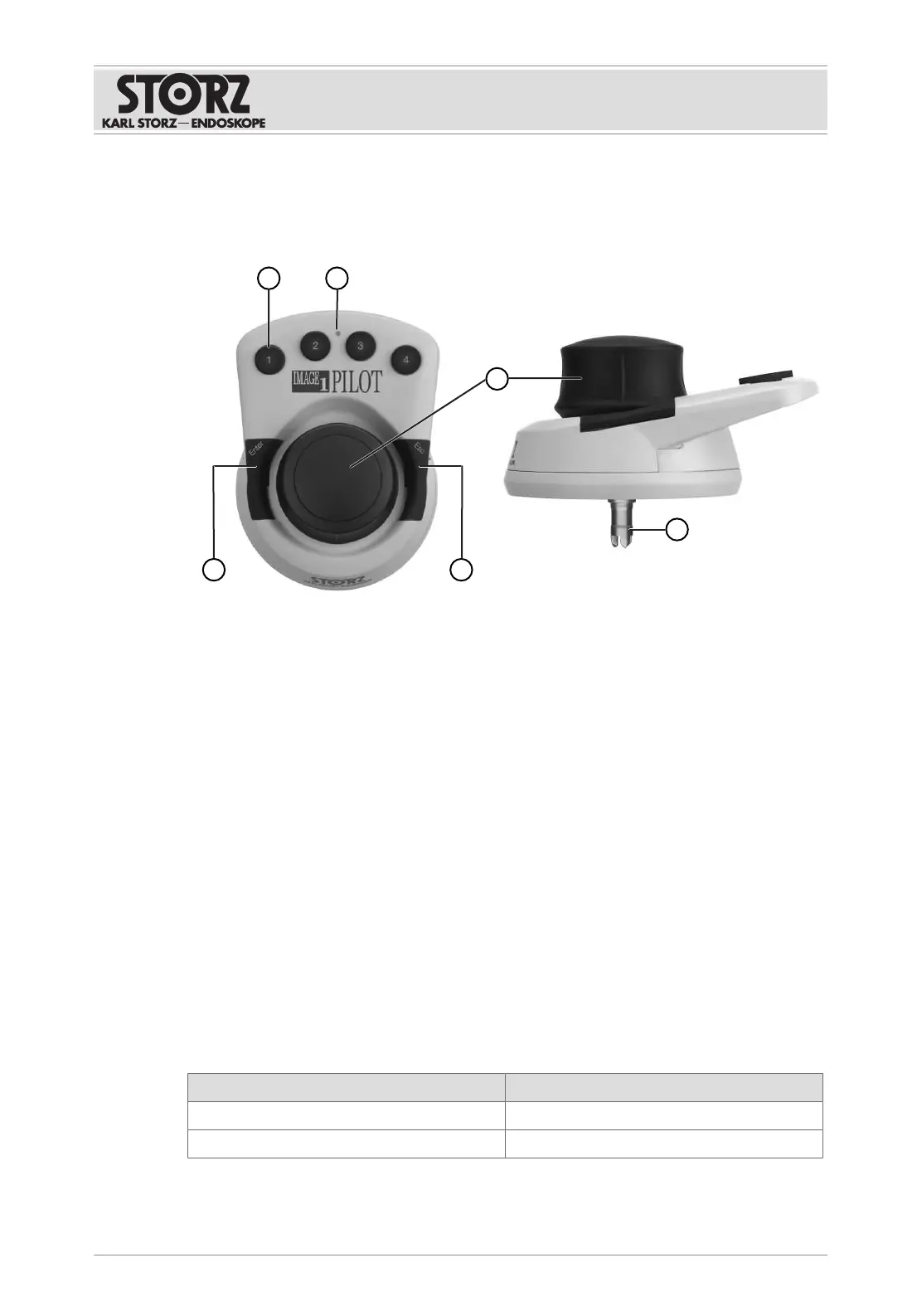

4.1 Product overview
4
1
2
3
6 5
1 Control buttons 1–4 for programmed
functions
4 KSLOCK quick release coupling (male)
for connection to a KARLSTORZ hold-
ing system
2 LED for operating status display 5 Right control button: canceling, jump-
ing back from a menu, and ESC
3 3D wheel for controlling the zoom, fo-
cus, and ROI as well as navigating
through the menu
6 Left control button: opening the cam-
era menu, Setup menu, selection
4.2 Possible combinations
It is recommended that the suitability of the products for the intended procedure be checked
prior to use. Please note that the products listed here may not yet be available in all countries
due to differences in approval requirements.
The IMAGE1PILOT is an accessory to the IMAGE1Scamera platform.
The product can be combined with camera heads, articulated stands, and rotation sockets,
e.g.:
– VITOM3D (TH200)
– Articulated stand (28272HB)
– Rotation socket (28172HR)
4.3 Technical data
Description Value
Dimensions (LxHxW) 123x61x92mm
Weight 355g
