OPERATION GUIDE
2-450174-030A
WWW.VARI-LITE.COM

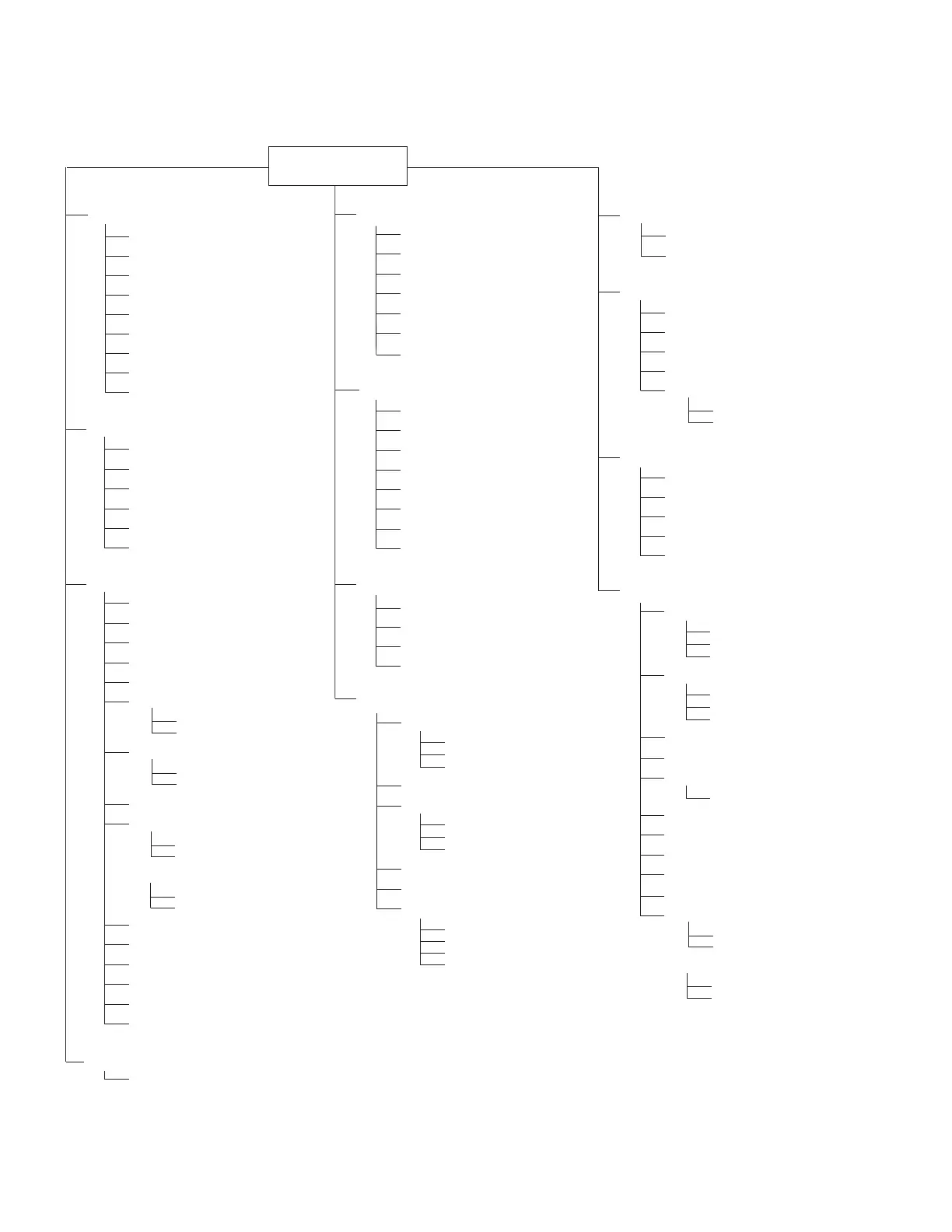

DIMMER CONFIG
SET DIMMER PATCH
VIEW FULL OUTPUT V
SET FULL OUTPUT VOLTS
VIEW REGULATION MODE
SET REGULATION MODE
SET CIRCUIT NAMES
AUTONUMBER CIRCUIT ID
DIMMER DYNAMICS
VIEW RESPONSE TIMES
SET RESPONSE TIMES
VIEW PROFILES
SELECT PROFILES
VIEW CUT LEVELS
SET CUT LEVELS
VIEW MINIMUM LEVELS
SET MINIMUM LEVELS
BACKUP LOOKS
CFG BACKUP LOOKS
SET POWER-ON BACKUP
POWER-ON HOLD
SET ACTIVE LOOK
INPUT CONFIG
SET DMX A OPTIONS
OFF
IN
OUT
VIEW DMX A LABEL
SET DMX B OPTIONS
OFF
IN
OUT
VIEW DMX B LABEL
NO MUX HOLD TIME
SET PANIC OPTIONS
USE DIP SWITCH
ON REQUEST
AUTOMATIC
DISABLED
LOCAL CONTROL
SET DIMMER LEVEL
SET DIMMER LEVEL RANGE
STATUS REPORTING
VIEW LIVE STATUS
VIEW RACK STATUS
VIEW EVENT LOG
VIEW SYSTEM UP TIME
SET TEMPERATURE SCALE
CELSIUS
FARENHEIT
VISION.NET CONFIG
ENABLE BRIDGING
SET UNIQUE ID
SET AREA ID
ENABLE REFRESH
VN PATCH
FACTORY
SET PHASE CONFIG
A-B-C-A-B-C
A-A-A-C-C-C
L1-L1-L2-L2-L3-L3 (EC21 only)
SET RACK SIZE
12
24
48
SET RACK SLOT ORDER
ADJUST ZERO CROSS
VIEW SERIAL NUMBER
AA:BB:CC:DD:EE:FF
VIEW PROJECT NAME
VIEW DEALER NAME
VIEW DEALER CONTACT
VIEW DEALER EXTRA INFO
REVERT TO MFG CONFIG
REBOOT RACK
YES
NO
HIDE FACTORY MENU
VISIBLE
INVISIBLE
(requires key sequence to un-hide)
RACK IDENTITY
VIEW RACK NAME
VIEW RACK LOCATION
VIEW MAIN BREAKER ID
VIEW SERIAL NUMBER
VIEW DEALER INFO
SET DATE (MM/DD/YY)
SET TIME (HH:MM:SS)
VIEW RACK SIZE
VIEW SOFTWARE VERSION
NETWORK CONFIG
SET IP ADDRESS
SET SUBNET MASK
VIEW HOST NAME
SET GATEWAY IP
VIEW MAC ADDRESS
IP PROT SUBNET
RACK CONFIG
VIEW MODULE TYPES
SET MODULE TYPE
SET MODULE TYPE RANGE
SET FAN CONTROL
SET LCD BACKLIGHT
LOCK MENU
ENABLE
DISABLE
SET PREFERRED PROCESSOR
MAIN
BACKUP
FORCE ACTIVE PROC
ENABLE CABLE COMP
ENABLED
DISABLED
ENABLE VOLTLOSS COMP
ENABLED
DISABLED
SAVE CONFIG TO USB
DOWNLOAD CFG FROM USB
SAVE CFG TO EEPROM
RESTORE EEPROM CFG
UPDATE FIRMWARE
CHANGE PASS CODE
USER PROFILE
SET USER PROFILE
MAIN MENU
