At the onset of pollution at the inlet the pollution at the outlet will not immediately rise
to the same level. For a pollution level of X% arriving at the inlet, the pollution level
at the outlet will rise with the inverse exponential of time towards X% and in theory
never actually reach it. This effect is illustrated in Figs. 3 & 4.
Plant Room
A
A
Filter
Air Inlet
0
Pollution at Inlet
(as seen by reference detector)
Transport
delay through
duct work
During this period aspirating smoke
detection system has low sensitivity
Reference
compensation
added here
Time
D
Smoke Density
Pump
Inlet
0
Pollution at Outlet
Time
D(1-E)
Smoke Density
0
CALCULATED POLLUTION ADDED
Time
Density required for alarm
D(1-E)
Smoke Density

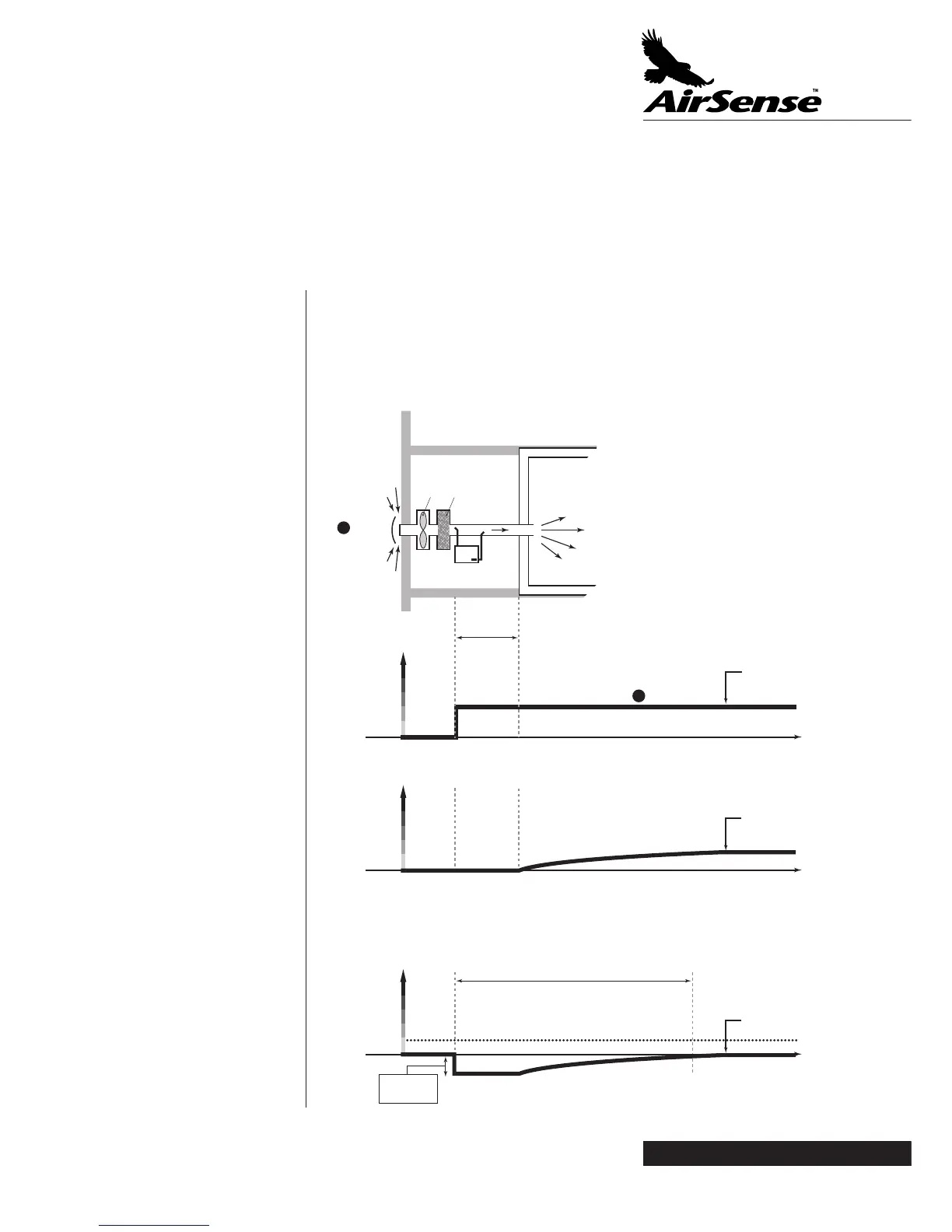

Fig. 3. Smoke
levels at the onset of
an external source
of smoke.
