STRATOS HSSD - Autronica BNX-3

World Patents Pending ©AirSense Technology Ltd. 1999
ISSUE 2.4
Page 36
TECHNICAL. MANUAL
Autronica BNX-3

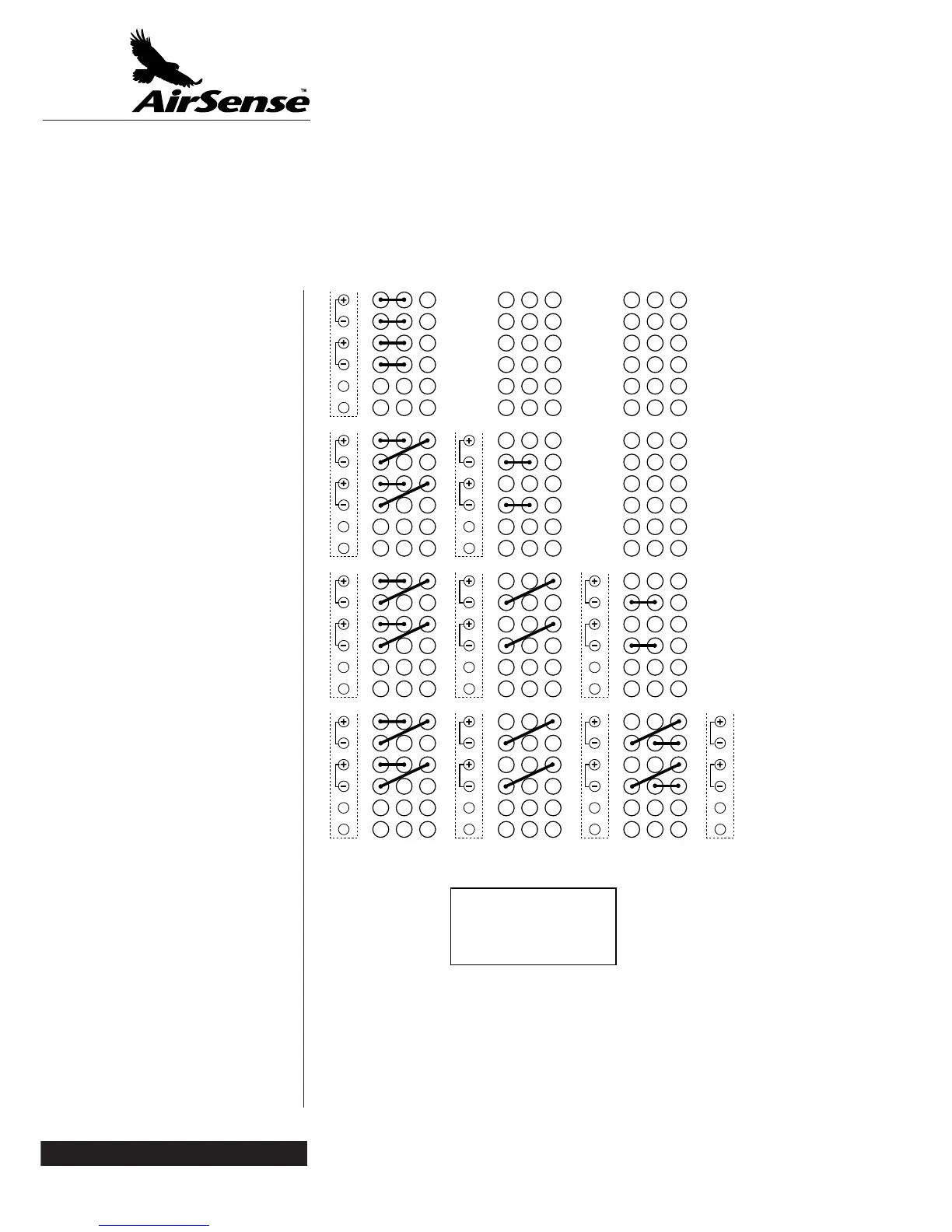

Master
+ 3 Slaves
Master
+ 2 Slaves
Master
+ 1 Slave
Single
Master
Line in +ve Line 1
Line out +ve
Line connections
Line 2
Line in -ve Line 3
Line out -ve Line 4
