Stratus 3i Installation Guide

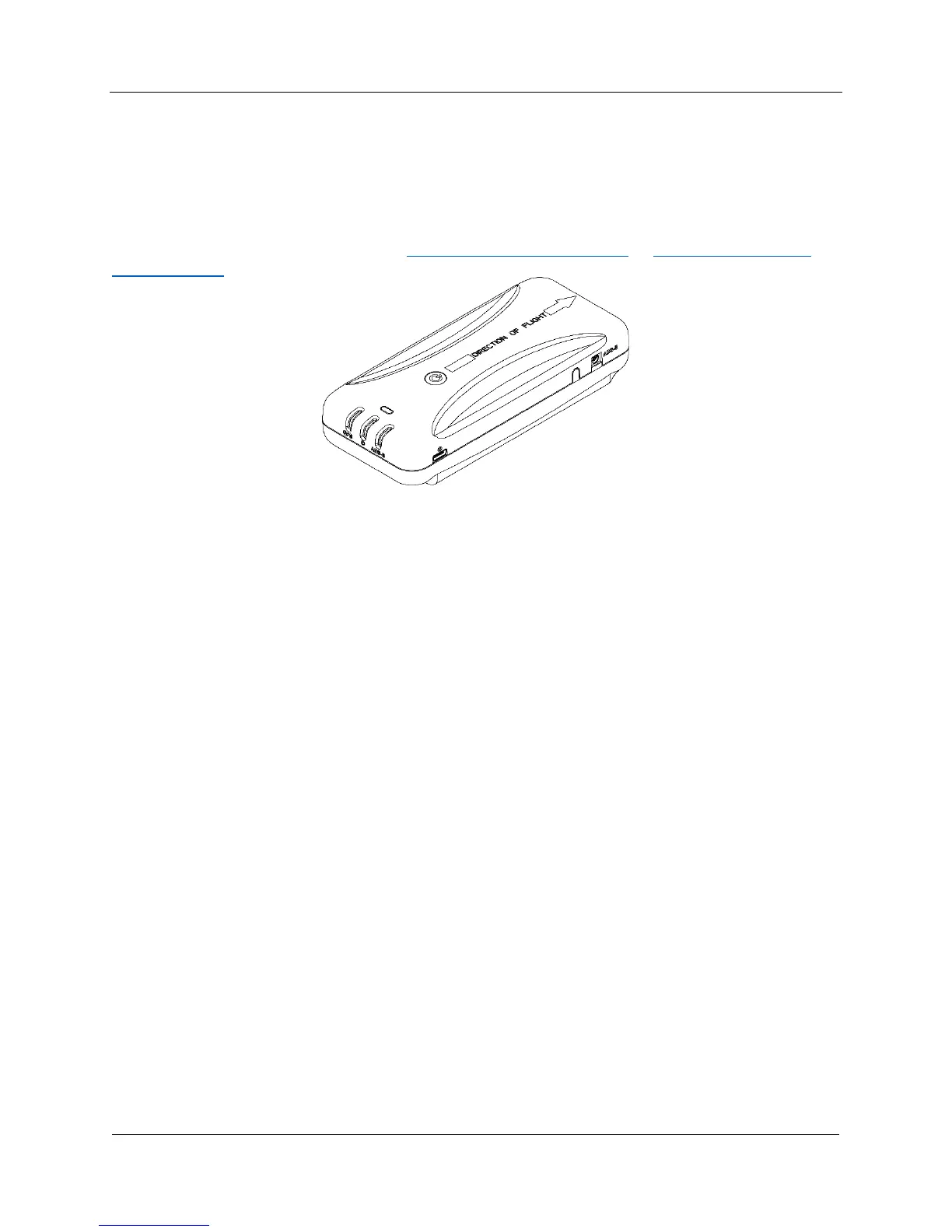

About Stratus 3i
Stratus 3i is a portable receiver that is wired to Stratus ES/ESG. It receives auxiliary power from
the transponder and also receives the ADS-B and GPS signal from the transponder’s externally-
mounted antennas.
Refer to the installation instructions on www.appareo.com/resources or
appareo.com/dealer-
portal/manuals to install Stratus ES/ESG.
Supplied Components
• Stratus 3i ADS-B In portable receiver
• Mounting clip
• 9-pin D-Sub connector with mounting hardware
• Power serial interface cable
• BNC jack to blind mate adapter
• RF interface cable
Placing Stratus 3i in the Aircraft
Stratus 3i can be placed anywhere in the cockpit in any orientation (including sideways or
upside down) as long as the Direction of Flight arrow on the top of the receiver points in the
direction of flight.
The provided mounting clip can be used to secure the receiver in the aircraft. The holes in the
Stratus 3i mount are also compatible with many RAM mounts.
