Strautmann EK 1109 - Adjusting Low Pressure; Adjusting High Pressure

Remedying Faults in PP 1207–Klöckner Möller
Remedying faults PP 1207
page 41 –April 2005
Adjusting low pressure:
Once the pressure has been adjusted,
the DBV2 must be locked again by a
locknut and the domed nut screwed
on.
Adjusting high pressure :
Gradually turn the DBV1 adjustment
screw clockwise. Use manual
operation to build up pressure to
check the pressure values by
manometer.
Adjust 230 bar maximal pressure !
Tighten nuts after adjusting system
and lock them with the counternuts.

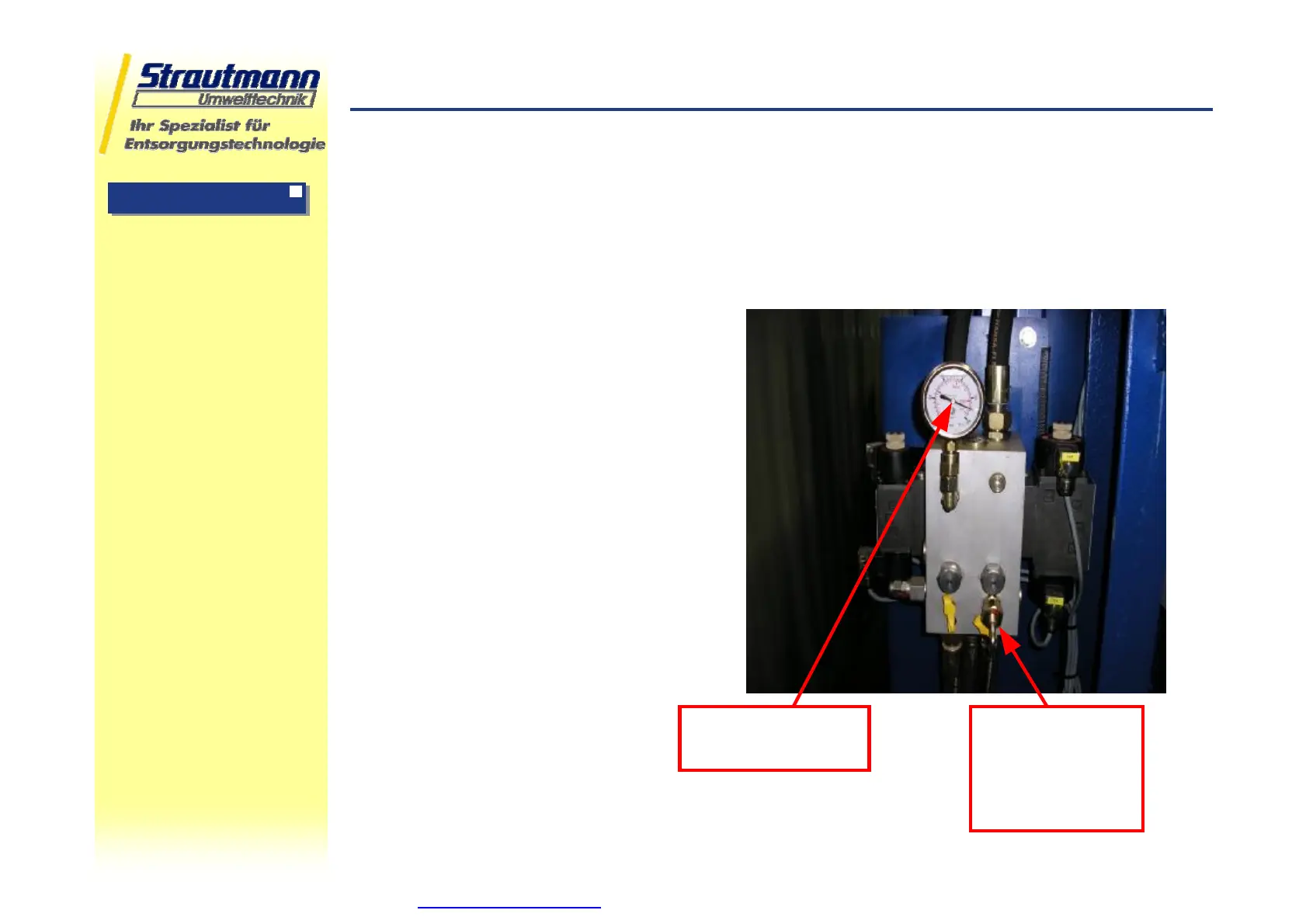

DBV
adjusting
screw
Max. 230 bar
system pressure
