Stream HYDROBOX 900 - Overall Dimension; Working Condition; Installation; Product Structure

Pumped medium: Clear water and other liquids with physical properties similar to clear
water
Environment temperature: 0-45℃
Environment humidity: max.85% (RH)
Medium temperature: 0-55℃

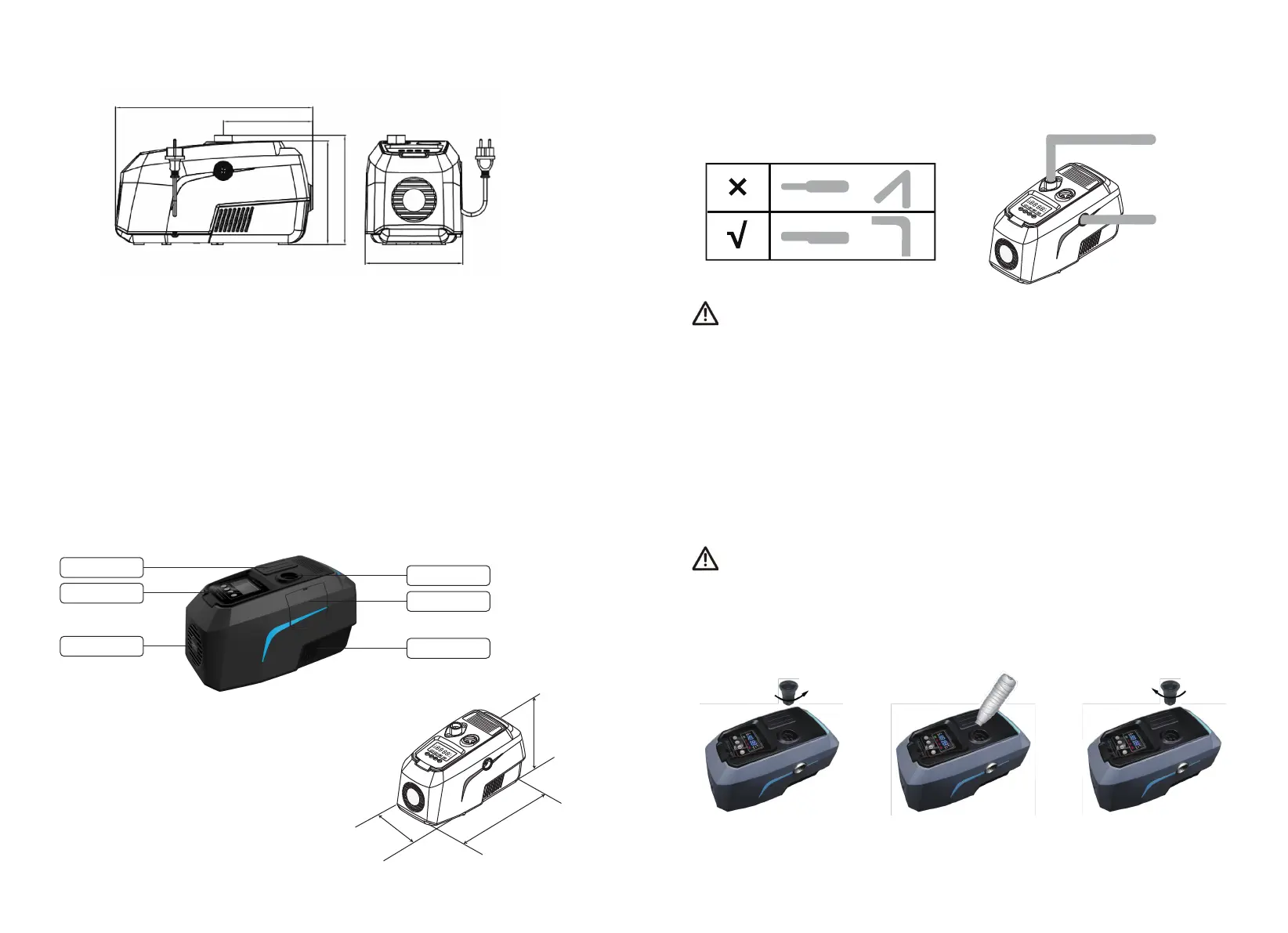

2.5 Overall Dimension
2.6 Working Condition
3.1 Product Structure
3.2 Installation Steps
427
193
224
237
211
3 Installation instructions
Water Outlet
Water Filling
Water Inlet
Air Outlet
Control Panel
Control Panel
3.2.1 Put the product in place. Please ensure
that the product is placed in a safe and
stable place with enough space aroundit.
224mm
427mm
211mm
4 5
3.2.2 Connect the inlet and outlet pipes. Use 1”G male threaded quick connector to
connectthe water inlet and outlet respectively. Please ensure the connection is
sealed properly and no leakage.
3.2.3 Open the exhaust knob, fill with water(900ml) and exhaust until the water
overflows, tighten the knob; If there is pressure at the inlet (0.5Bar), open the
faucet directly until the water flows out normally.
Note:
1. Complete the water-filling when you use the product for the first time.
2. During the use, the water supply is stopped due to water shortage in the inlet pipe. After the water
supply is resumed, if the outlet pressure is insufficient or there is no water flow, please fill water again and
resume normal use.
Note:
1. The inlet pipe should minimize the elbows and reduce the suction resistance.
2. To ensure normal water flow, the inlet pipe diameter should be at least the same as inlet diameter, so as
to avoid wasting water power and weakening the water performance.
3. Make sure that the product is not affected by the pressure of the pipeline when setting up the pipeline.
4.If you are not sure whetherthe pumped water is clean or not, install a suitable filter at the inlet.
