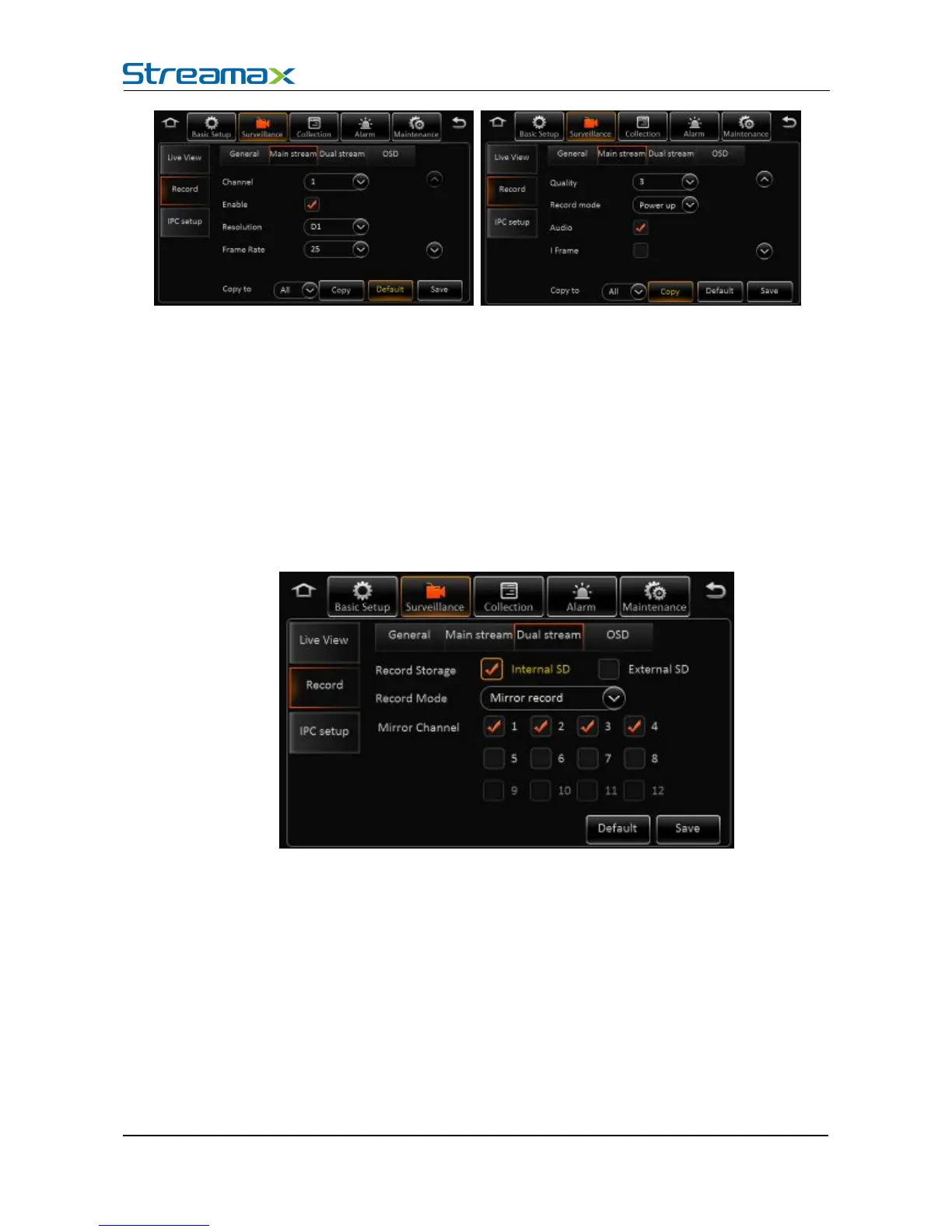

Channel: 1-20 channels can be chosen and set the record parameters

Enable: Enable the main stream record function

Resolution: The analog channel supports D1/HD1/CIF/WD1/WHD1/WCIF while the digital one
supports 720P

Frame Rate: Frame Rate of the record

Picture Quality: Picture Quality of the record

Record Type: Ignition, Time, Event optional. Each channel can be set separately. The
sub-stream and mirror record are the same

Audio: Enable the audio. Note: Audio can not be record separately

I frame only without alarm: Enable to let the frame rate invalid, record file is I frame only

Record- Dual stream

Record Storage: The storage type for second stream, internal SD, or external SD

Record Mode:Mirror record, alarm back-up, and sub stream
Mirror Record: Channel is selectable. Video resolution and frame rate are the same with main
stream.
Alarm Back-up: Channel is selectable. The parameters are the same with main stream
Sub-stream: Channel is selectable. Recording parameters are configurable

Mirror channel: It is selectable according record mode

Dual stream-Sub-stream
