ASSEMBLY INSTRUCTIONS FOR: Ca 7s / BCa 7s
B2B Panel
K2B Panel

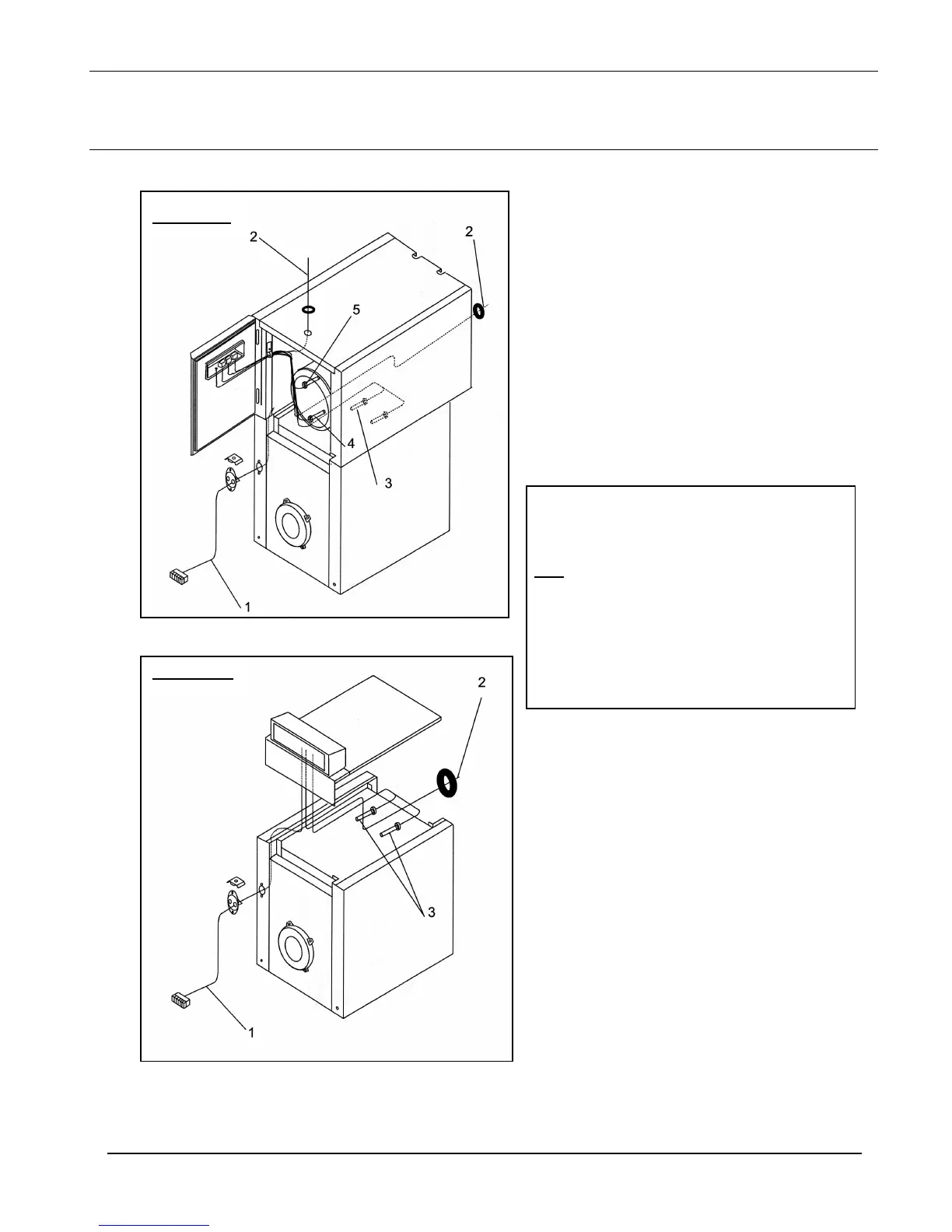

The diagrams opposite shows connections to the
instrument control panel.
Key:
1. Burner Cables
2. Power Supply Connection.
3. Stage 1 & Stage 2 Thermostat Sensor & boiler
Thermometer Sensor Pockets.
4. Calorifier Thermostat Sensor Pocket.
5. Calorifier Thermometer Sensor Pocket.
