ASSEMBLY INSTRUCTIONS FOR: Ca 7s / BCa 7s

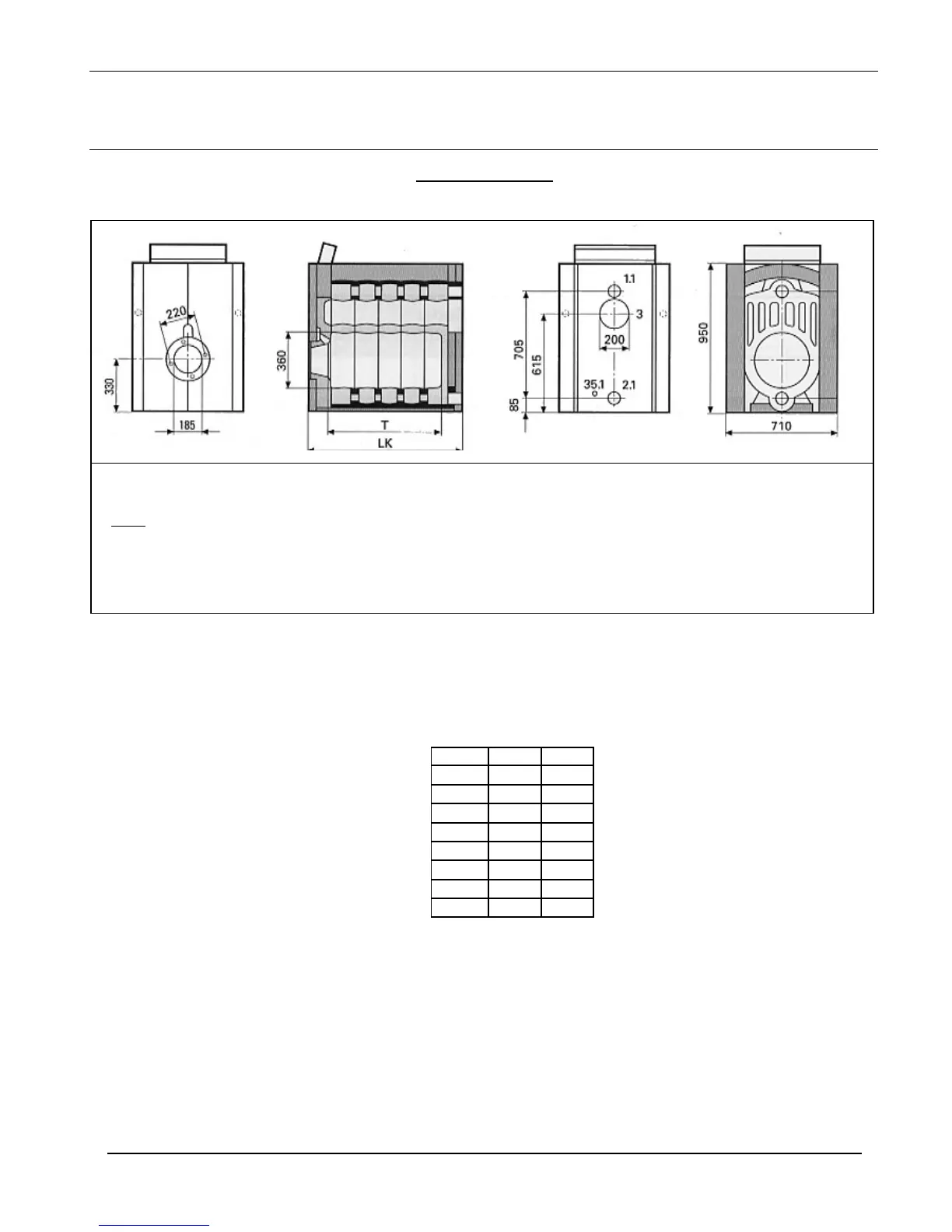

Boiler Dimensions
Ca 7s - Dimensions
Boiler LK mm Tmm
Ca7s-4 865 555
Ca7s-5 1015 705
Ca7s-6 1165 855
Ca7s-7 1315 1005
Ca7s-8 1465 1155
Ca7s-9 1615 1305
Ca7s-10 1765 1455
KEY:
1.1 Boiler Flow 130mm NW65
2.1 Boiler Return 130mm NW65
35.1 Boiler Drain 3/4”
