Strebel Ca 7s - Page 5

Page 5
23/03/01
ASSEMBLY INSTRUCTIONS FOR: Ca 7s / BCa 7s

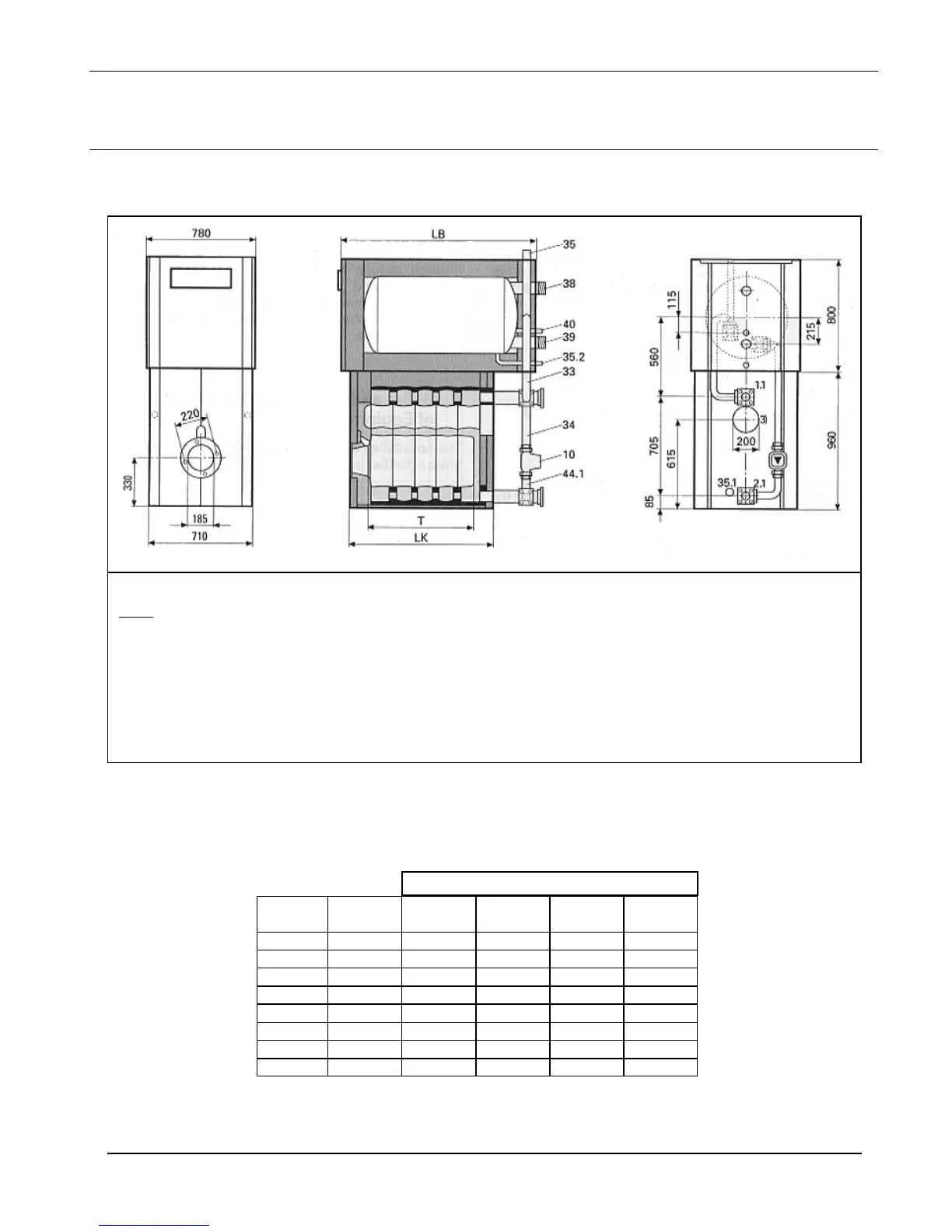

BCa 7s - Dimensions
LK Calorifier Type CSH-
Boiler 240S 300S 360S 500S
LK mm mm mm mm mm
Ca7s-4 865 1175
Ca7s-5 1015 1175 1475
Ca7s-6 1165 1475 1625
Ca7s-7 1315 1475 1625 2075
Ca7s-8 1465 1625 2075
Ca7s-9 1615 2075
Ca7s-10 1765 2075
1.1 Boiler flow 130mm NW65
2.1 Boiler return 130mm NW65
10 Primary pump 1x230V 1¼”
33 Primary connection pipe (1¼”*) 1½”
34 Return connection pipe (1¼”*) 1½”
35 Air vent 3/8 “
35.1 Boiler drain off ¾”
35.2 HWS drain off ¾”
38 HWS water connection flow (1½”*) 2”
39 Cold water connection (1½”*) 2”
40 Circulation connection ¾”
44.1 Non return valve
* Available for calorifier CSH 240S
KEY:
