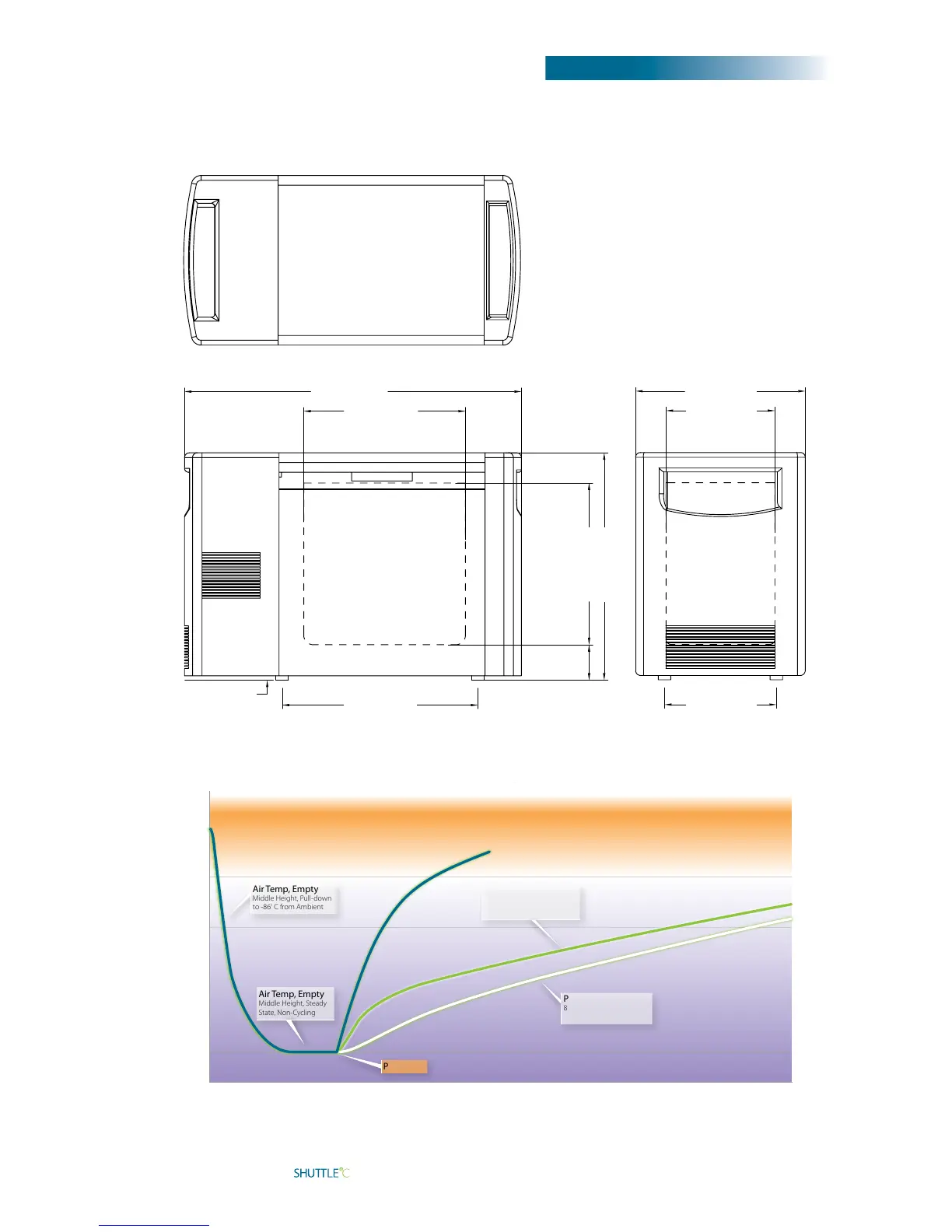

9.2 – Freezer Dimensions
9.3 – Pull-Down and Warm-Up Characteristics, 25
º
C Ambient
TOP
SIDE FRONT
TOP
SIDE FRONT
8.7" (220 mm)
8.7" (221 mm)
13.8" (350 mm)
TOP
SIDE FRONT
27.3" (692.5 mm)
13.1" (332 mm)
13.5" (343 mm)
.3" (8 mm)
13.4" (340 mm)
18.1" (460 mm)
SIDE
FRONT
TOP
Air Temp, Empty
Middle Height, Pull-down
to -86
º
C from Ambient
Air Temp, Empty
Middle Height, Steady
State, Non-Cycling
TEMPERATURE (
º
C)
TIME (HOUR)
40
20
0
-20
-40
-60
-80
-100
0 9 123 6 15 18 21 24
PULL-DOWN AND WARM-UP
CHARACTERISTICS, 25
º
C AMBIENT
