3.2 Needle lever

3.2.1 Assembly

A T T E N T I O N !

Switch off the machine electrically!

Remove screw (1), move the Thread take-up lever and remove the needle lever. During

installation, please ensure that the needle runs through the centre of the needle

groove and the needle tip is flush with the left needle guide (Fig. 11).

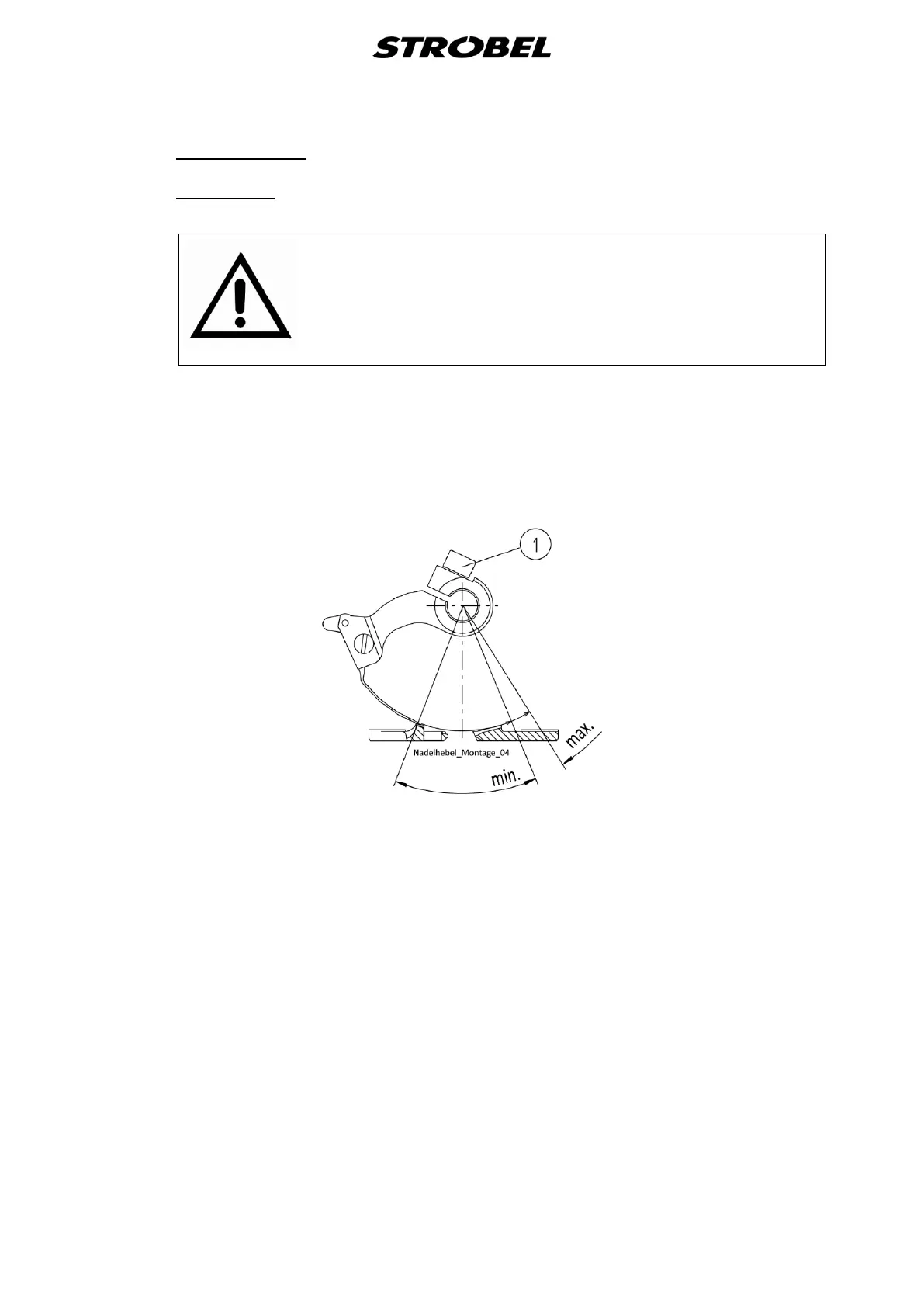

Fig. 11
