4.3.6 Thread trimmer

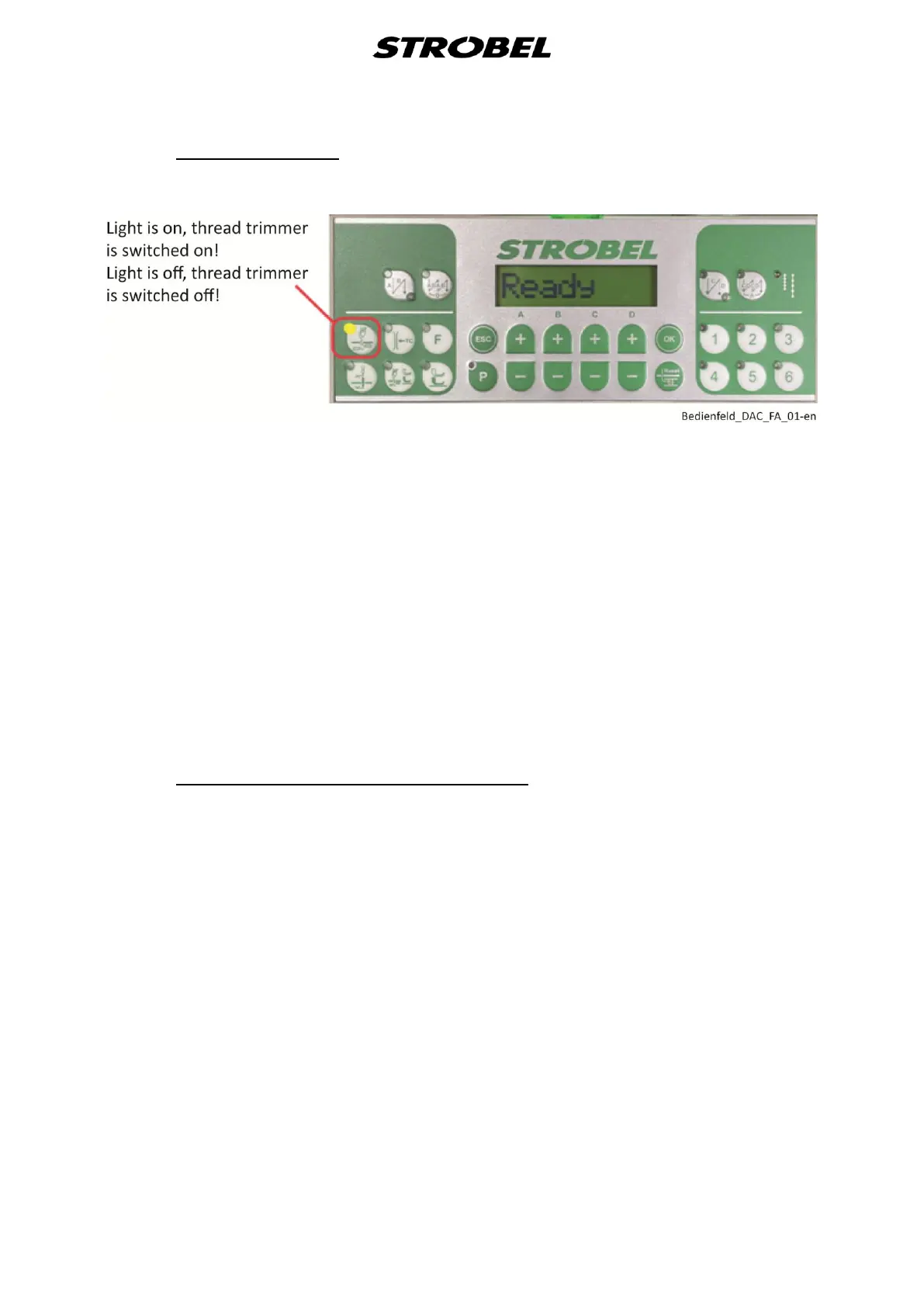

Fig. 29
For the STROBEL thread trimmer we use PINS 19 and 33 in the 37-pole motor
connector. In the DAC Classic control the chain cutter function is responsible for the
thread trimmer.
The running lock t 50 00 is set to 1.
- Select parameter t 51 50 for setting the output functions.
- Select value 40 (chain cutter) and confirm with "OK".
- Select parameter t 28 00 with key "B+" and key "D" and confirm with "OK".
- Set mode to "1". Chain cutter "On".
- Confirm with "OK".
- Select parameter t 28 02 and confirm with "OK".
- Set the on-time for the thread trimmer to 180ms and confirm with "OK".
Machines without thread trimmer
If a machine is equipped without thread trimmer, the following parameters are set:
- t 28 00 chain cutter to value 0
- t 50 00 running lock to value 0
- t 51 50 Output functions to value 0
If a Strobel thread trimmer is retrofitted, the following parameters must be set:
- t 28 00 chain cutter to value 1
- t 50 00 running lock to value 1
- t 51 50 Output functions to value 40
