Strong Super Trouper - Page 13

XST/011
4080870
6541000
4250503
4110750
83748000
65131000
4080870
65844000
REAR OF LAMPHOUSE OBSERVE CORRECT POLARITY
PartNo. Description 65131000 Anode(+)ContactClamp 65410000 Cathode(-)ContactClamp 65844000 RearBulbSupportCollet,2kW 83364000 FrontBulbSupportBaseBracket 83410000 CoilSpring(inside 83748000; not shown) 83748000 FrontBulbSupportRing 4080870 ContactClampingScrew 4100620 SupportRingClampingScrew 4110750 BulbSupportBracketMountingScrew 4250503 LeadMountingScrew NOT SHOWN 65948000 Negative(-)LeadAssembly,29"(ClamptoShunt) 65966000 Positive(+)LeadAssembly(incl.65131000)
2000 Watt Operation: 75 Amperes Nominal DO NOT EXCEED 90 AMPERES

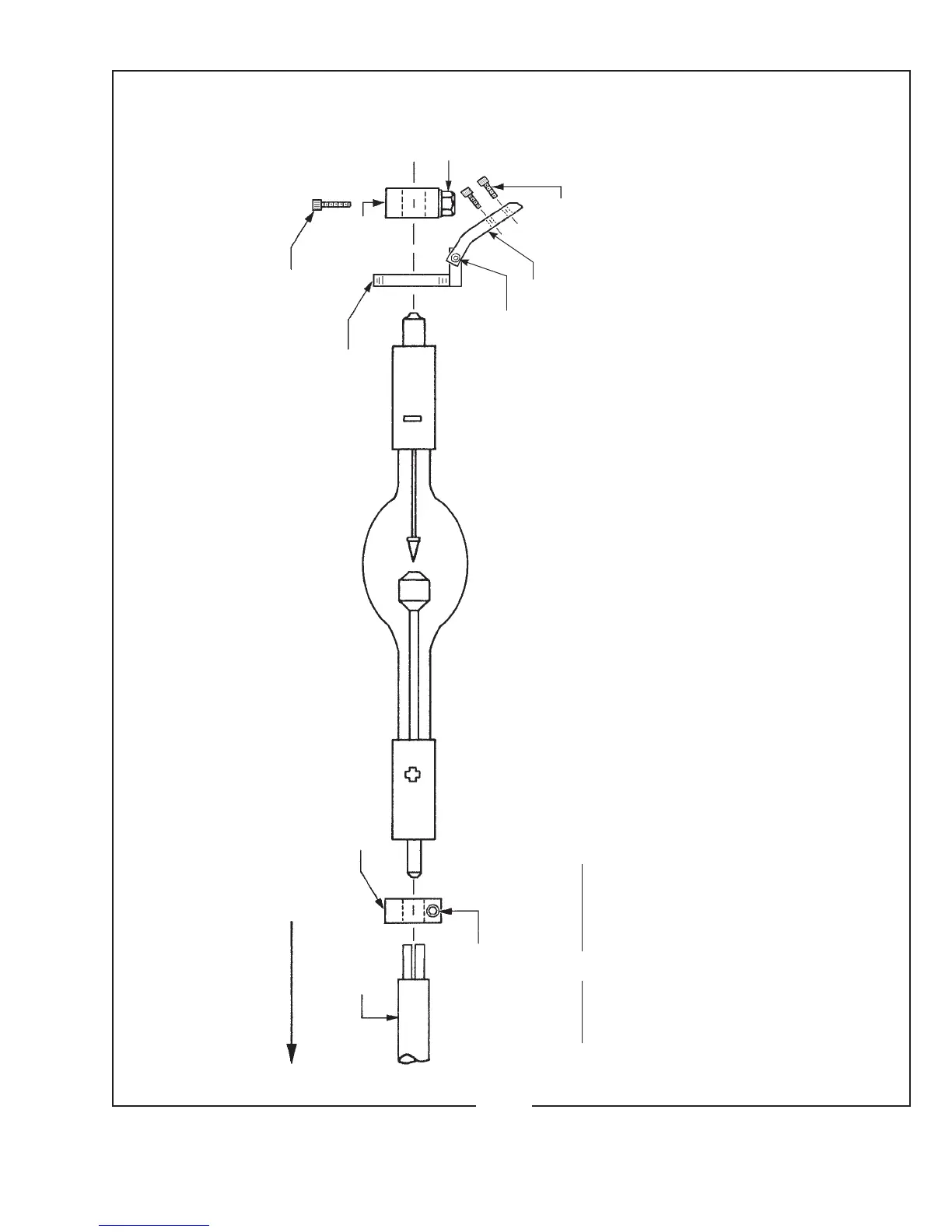

2000 WATT BULB INSTALLATION
Position Ring at 90° (as shown) and tighten 4100620 Clamping Screw
DETACH & DISCARD ANY FACTORY-MOUNTED LEAD CONNECTED TO BULB END CAP SHORT 2000 WATT (Type “HS” ) BULB NOT USED IN XENON SUPER TROUPER
8336400
