Labotom-3
Instruction Manual

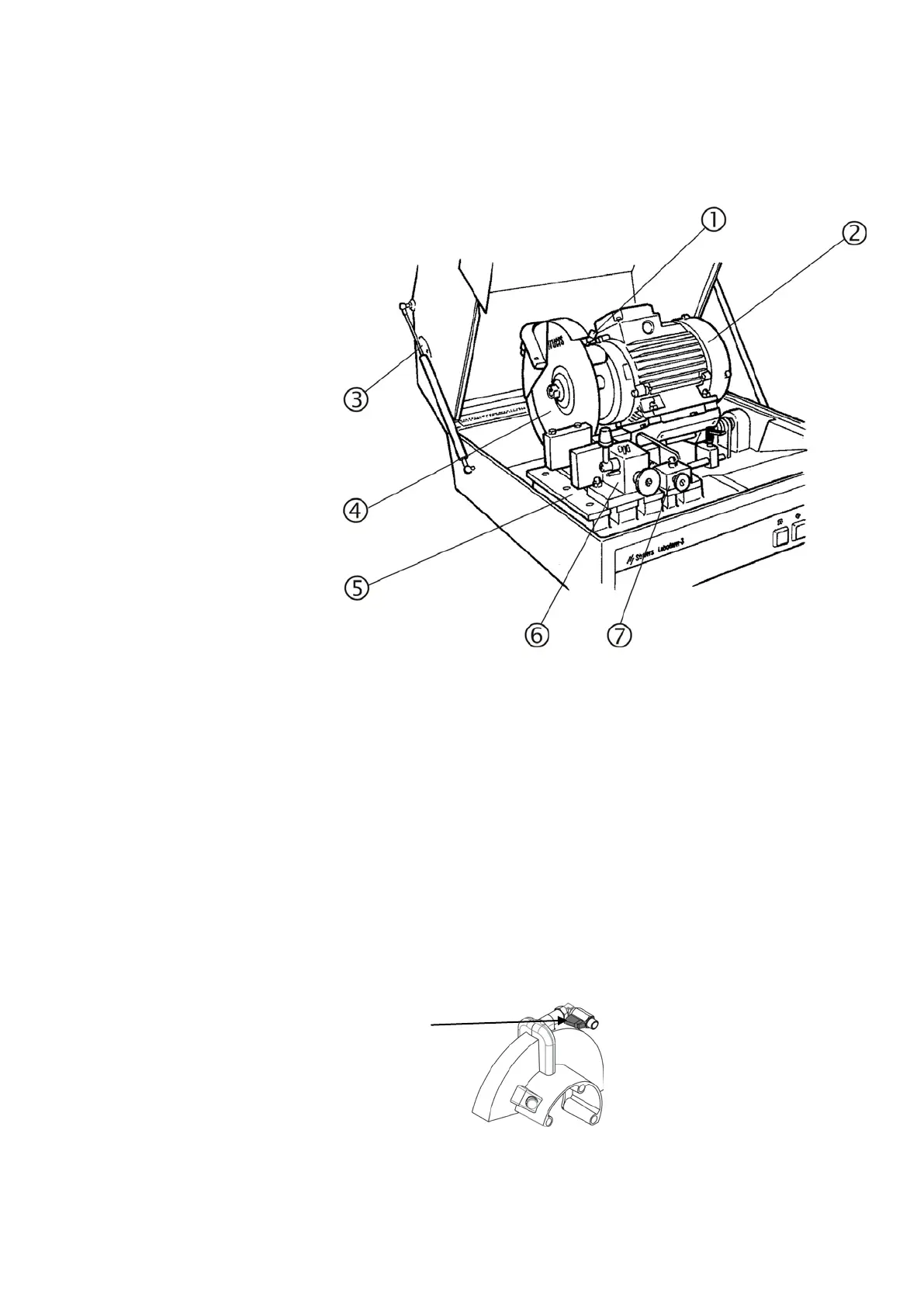

Spindle lock
Tilting cutting unit
Connection for external fume
extraction system (optional kit required)
Cut-off wheel
Cutting table
Quick-clamping device (optional)
Spring clamp (optional)
The cooling valve lever is mounted behind the guard for the cut-off
wheel.
Cutting the lever is turned clockwise and the water is directed
to cool the cut-off wheel.
Cleaning the lever is turned counter-clockwise to flush the
cutting chamber.
