IInnssttaalllliinngg tthhee fflloooorr ppllaattee
Install the Stryker universal floor plate in your vehicle patient compartment before you install your cot fastener system. See
the Stryker Global Floor Plate Installation Manual (6390-009-020) for instructions.
PPeerrffoorrmmaannccee--LLOOAADD aasssseemmbbllyy kkiitt cchheecckklliisstt
Make sure that you have all the required components to install the PPeerrffoorrmmaannccee--LLOOAADD system.
PPeerrffoorrmmaannccee--LLOOAADD assembly kit components (6392-001-014)
(2) Cleat (6392-001-400) (4) Cleat locator washer (6392-001-401)
(4) Flat head cap screw (0001-194-000) (1) Center cover assembly (6392-001-011)
• (1) Hex wrench (0057-011-000)
• (1) Floor plate cover (6392-001-403)
• (1) Removal tool extension (6392-001-406)
0001-194-000 (4)
6392-001-401 (4)
6392-001-400 (2)
6392-001-403 (1)
6392-001-406 (1)
0057-011-000 (1)

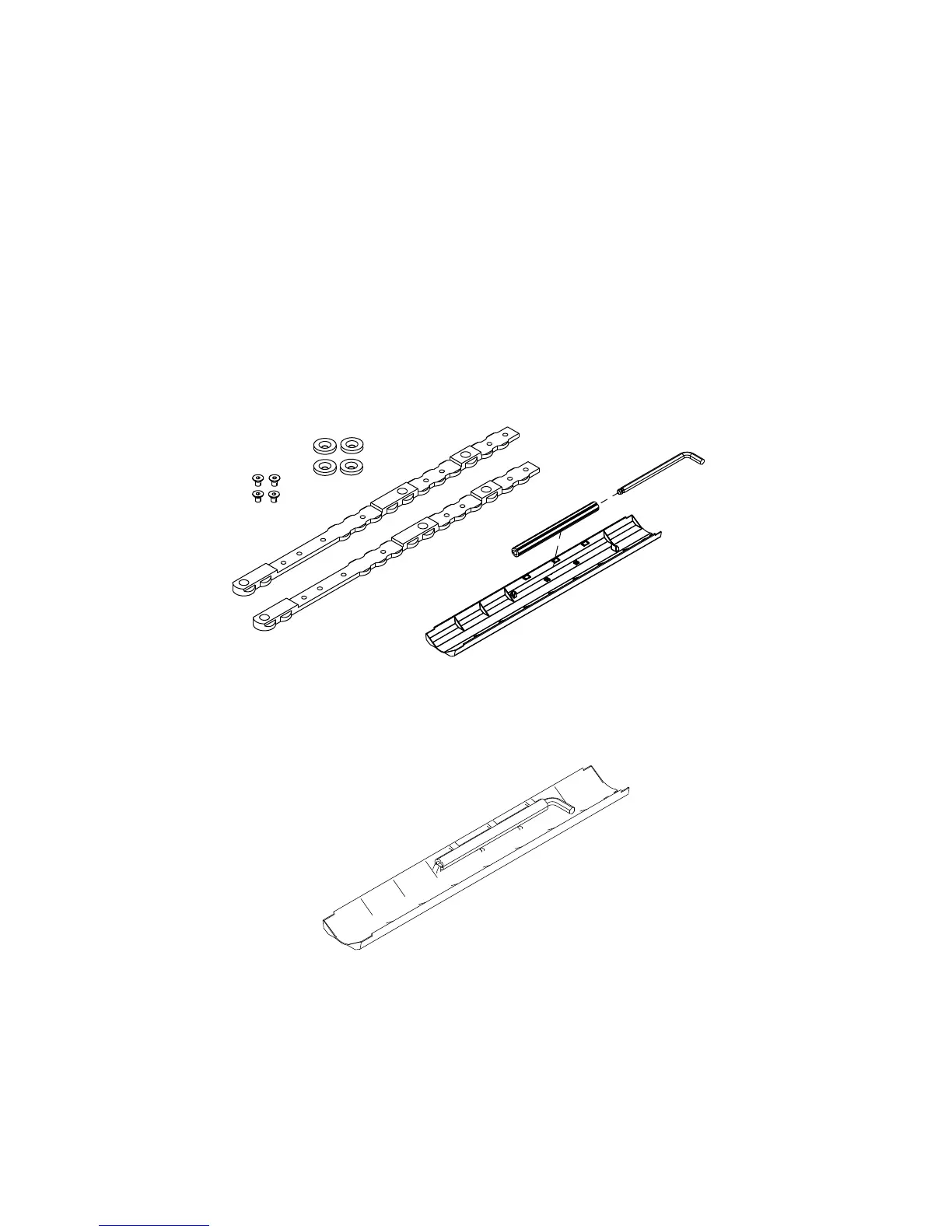

FFiigguurree 22 –– PPeerrffoorrmmaannccee--LLOOAADD aasssseemmbbllyy kkiitt ccoommppoonneennttss
NNoottee -- Store the hex wrench and removal tool extension (Figure 3) inside of the center cover assembly, so you can access
these tools when you are Removing Performance-LOAD quickly.
6392-001-011 (1)
FFiigguurree 33 –– HHeexx wwrreenncchh aanndd rreemmoovvaall ttooooll eexxtteennssiioonn
6392-009-001 Rev D.3 11 EN
