SSeelleeccttiinngg wwhheerree ttoo iinnssttaallll PPeerrffoorrmmaannccee--LLOOAADD
Follow these steps to determine location and orientation of cleats and washer locations:
1. Select your sill to cot distance (A) (Figure 4).
Record your distance here: _____
2. Using the table below, select your Section based on your sill to cot distance (A).
Record your section here: _____
3. Proceed to your section to install your cleats.

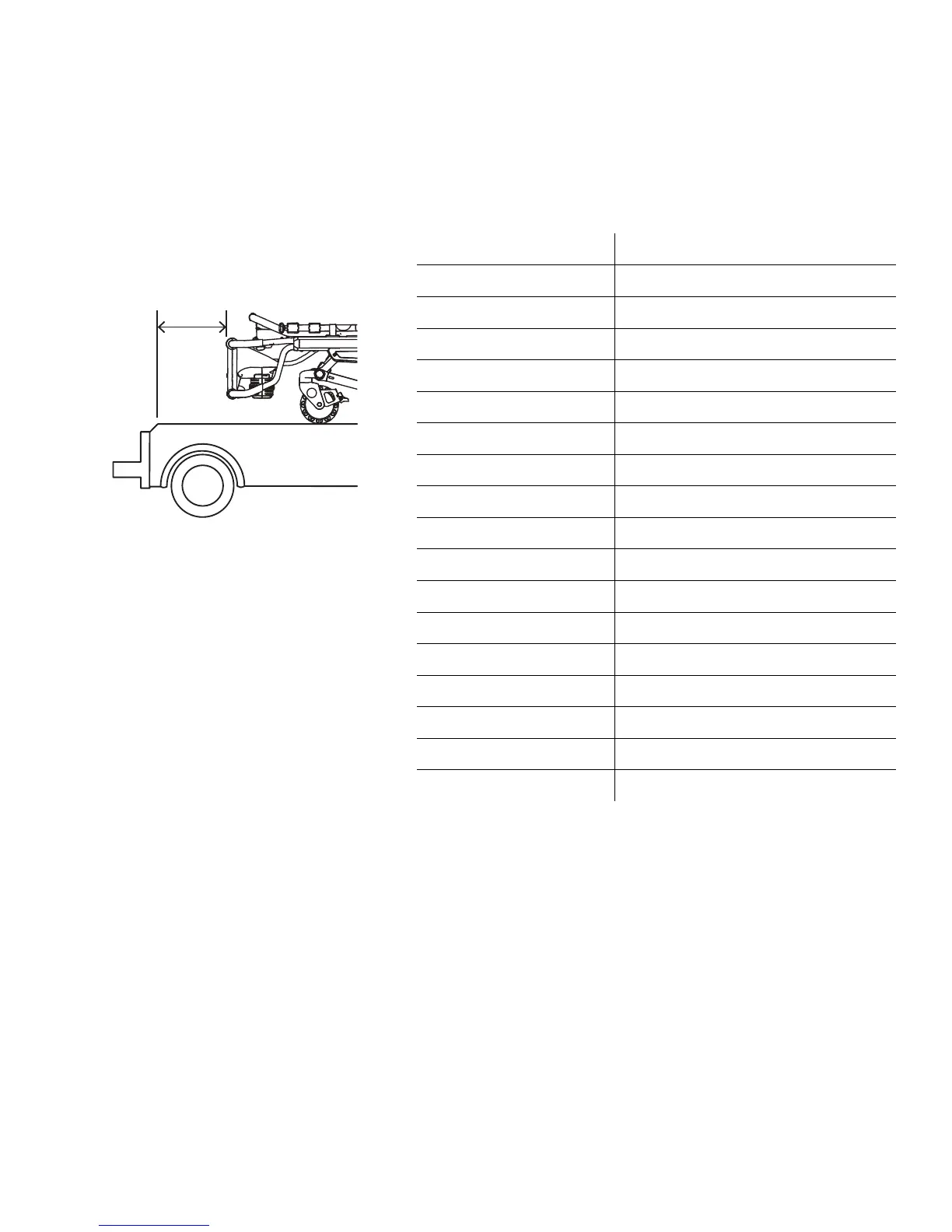

FFiigguurree 44 –– SSiillll ttoo ccoott ddiissttaannccee ((AA))
SSiillll ttoo ccoott ddiissttaannccee ((AA)) SSeeccttiioonn
5 in. (13 cm) Section A
6 in. (15 cm) Section B
7 in. (18 cm) Section C
8 in. (20 cm) Section D
9 in. (23 cm) Section E
10 in. (25 cm) Section F
11 in. (28 cm) Section G
12 in. (30 cm) Section H
13 in. (33 cm) Section I
14 in. (36 cm) Section J
15 in. (38 cm) Section K
16 in. (41 cm) Section L
17 in. (43 cm) Section M
18 in. (46 cm) Section N
19 in. (48 cm) Section O
20 in. (51 cm) Section P
21 in. (53 cm) Section Q
EN 12 6392-009-001 Rev D.3
