Features and Functions
• Battery Latch - Depress the latch to release the battery pack from the handpiece.
• Battery Pack - Contains a rechargeable battery that provides power to the handpiece.
• Blade Lock Button - The button allows the insertion and release of the blade.
• Blade Retainer- The retainer holds the blade.
• Sagittal Head - The sagittal head may be indexed in 45° increments and can turn in a complete 360° rotation to
achieve the desired cutting angle.
• Trigger Switch - The trigger is pressure sensitive for variable speed operation. When rotated, the trigger switch
allows the cutting tool to operate in STD (standard), SAFE and FAST mode.

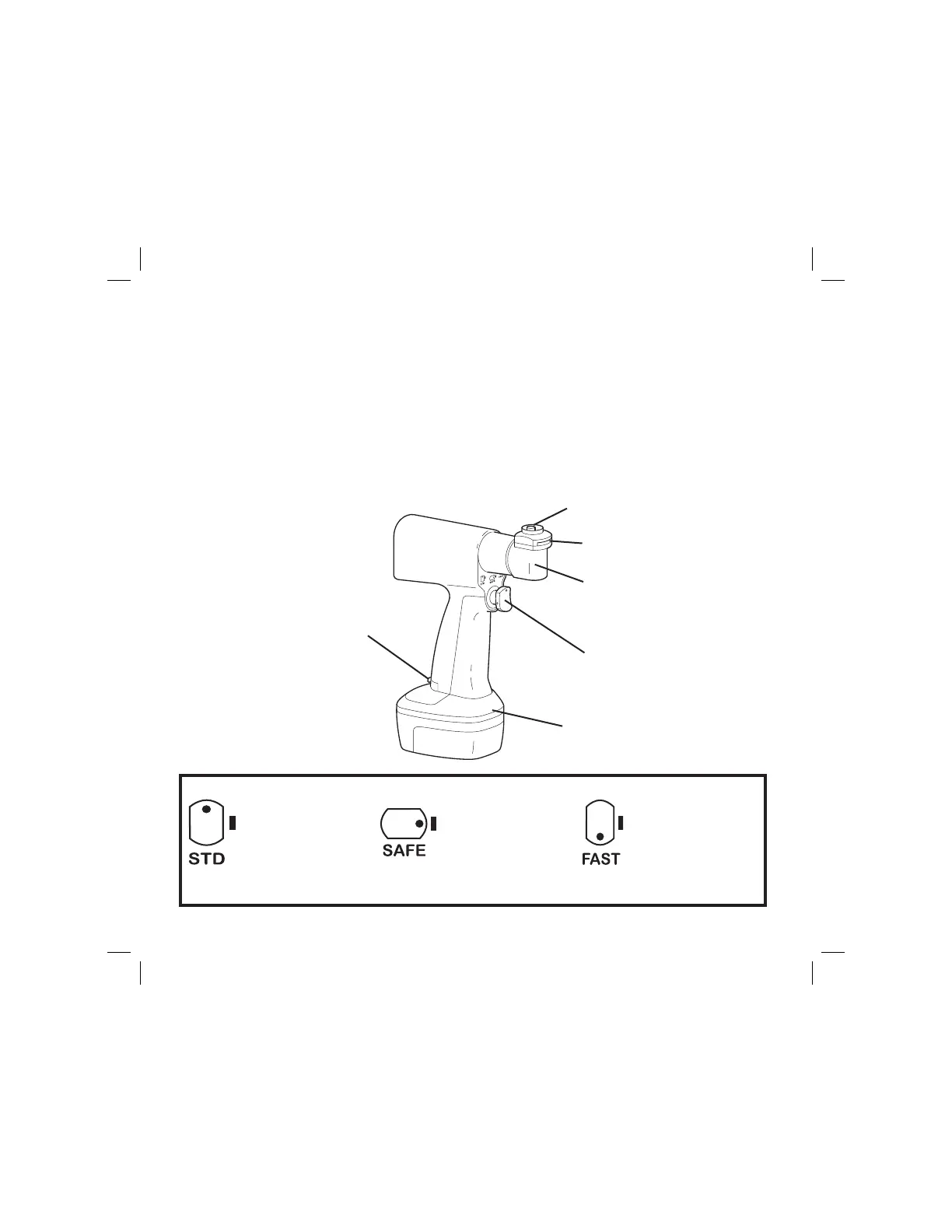

Battery Pack
Sagittal Head
Blade Retainer
Symbol Definitions
Blade Lock Button
Trigger Switch
Battery Latch
The SAFE position locks
the trigger and prevents
inadvertent operation
of the handpiece; the
handpiece cannot be
operated.
The FAST position
allows the handpiece
to operate at high
torque and high speed
when the trigger is
depressed.
The STD (standard)
position allows the
handpiece to operate
at high torque and
standard speed
when the trigger is
depressed.
