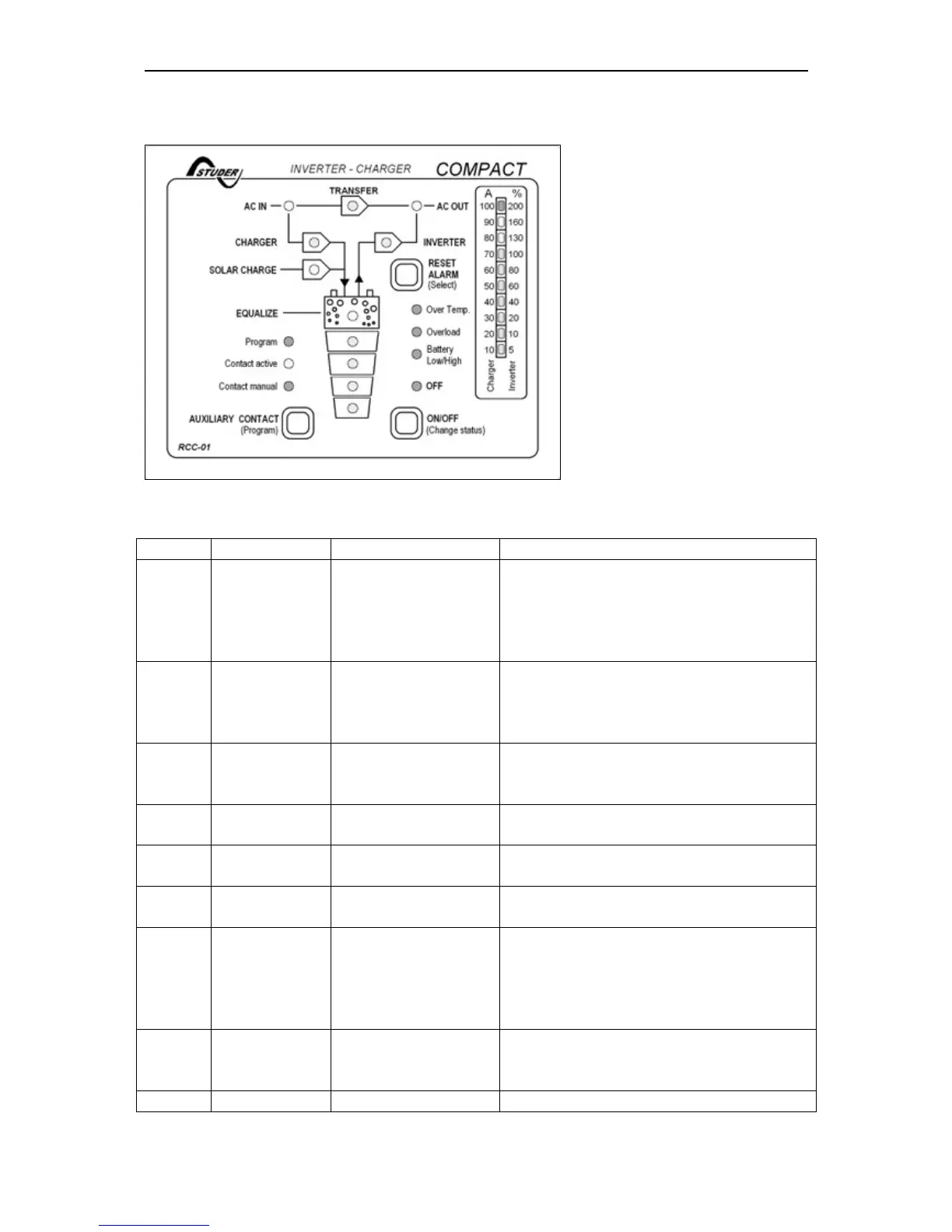

4.2 Display and control parameters on remote control panel (optional)
4.3 Light Emitting Diodes (LED)
LED Marking LED lit LED blinks
1 AC IN
Voltage
corresponding to
self-adjusted
values is at the AC
IN input.
A voltage outside the self-adjusted
values is at the AC IN input, or the XP-
COMPACT is in synchronization
phases
2 CHARGER
Battery charger is
working
The battery charger is locked OFF
(see chap. 4.7) or provisory out of
order. In that last case it will restart
within 10 seconds
3
SOLAR
CHARGE
Connected solar
modules are
delivering energy
4 Program
Program mode for
Aux. Contact
5
Contact
active
Auxiliary Contact is
activated
6
Contact
manual
Aux. Cont.
manually activated
7 TRANSFER
Transfer system is
active. In- coming
voltage is being
sent directly to AC
OUT outlet
Transfer (bypass) is disabled (see
chap. 4.8)
8 AC OUT
There is a voltage
at the AC OUT
outlet
The Inverter is in Standby-Mode
9 INVERTER Inverter is working Forced Inverter Mode (see chap. 4.6)
