STUDER INNOTEC XP-COMPACT
XP-COMPACT V5.4 21/77

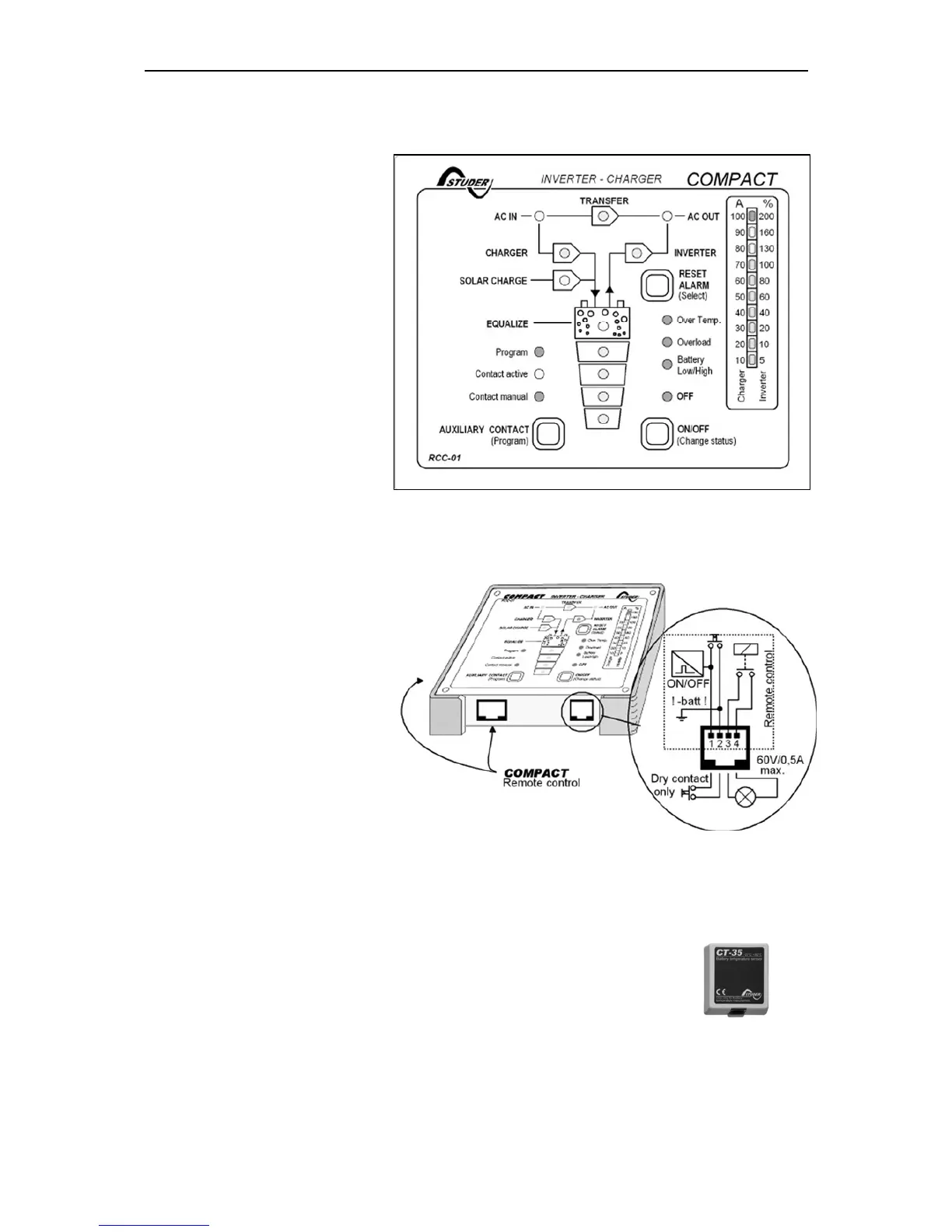

4.11 The Remote Control RCC-01
As an option, a Remote
Control can be connected to
the XP-COMPACT. All
operating controls and
displays except from level
adjustment are available on
the Remote Control. The
Remote Control is supplied
with a 20m long cable. It can
as long as 40m. The Remote
Control is suitable for surface
mounting on the wall or on to
a switch board. It is fixed with
4 screws. The XP-COMPACT
can also be programmed with
the Remote Control. The
Programming is descry-bed in
the section „Programming“.
The output power and the charging currents are displayed on the Remote Control.
In the Remote Control there is an additional Alarm Contact and a built-in Control
Input. These two functions are available through Tip-jack RJ11/4 for use. This
Auxiliary Contact is Front / Work Contact (max. 0.5A!), which is independent from the
Auxiliary Contact of the XP-
COMPACT. This con-tact is
active in case of an alarm of
the XP-COMPACT.
The Control Input is connected
in parallel to the ON/OFF-
push button. The XP-
COMPACT can be switched on
or off through this input with an
impulse button or an impulse
contact.
Caution: No external voltage
should be connected to this
Input Control.
Order Number for Remote Control: RCC-01
Dimensions: H x B x T / 111.5 x 136.5 x 25mm
4.12 The Temperature sensor CT-35
Operating voltage of lead-acid batteries change depends on the
temperature. To correct the operating voltages according to the
actual temperatures, a temperature sensor can be connected to the
XP-COMPACT.
The compensation through the sensor is –3mV/°C/Cell.
Order Number: CT-35
Dimensions: H x B x T / 58 x 51.5 x 22mm
