STUDER INNOTEC XP-COMPACT
XP-COMPACT V5.4 9/77

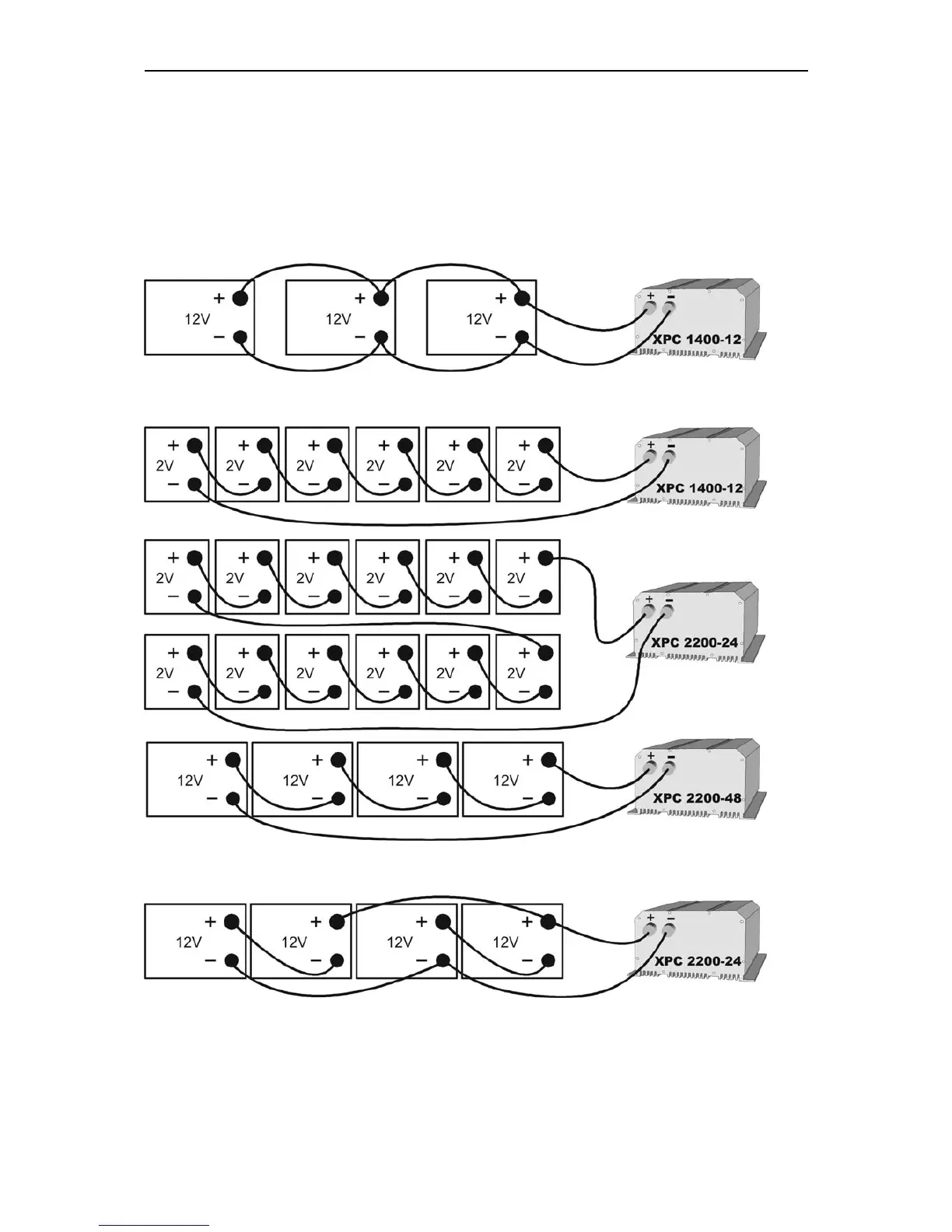

2.3 Battery connecting
Lead-acid batteries are normally available in blocks of 2V, 6V or 12V. In most cases,
to generate the necessary operating voltage and the capacity of the batteries for the
XP-COMPACT many batteries have to be connected together in parallel and or in
series. Here are 3 examples of connection:
2.3.1 Connection in parallel
2.3.2 Serial connection
2.3.3 Serial and parallel connection
