Node Name The name of this D23m frame.
Cloud Id The Cloud Id of the IO Cloud.
Node Id The Node Id of this D23m frame.
Communication Port As a default, the communication Port for the communication with IO frames
is Port 3001.
Use Multicast This enables to use IP multicast group communication, making use of the
UDP protocol.
Multicast Group Address Here the IP multicast group address is defined. As a default, the Multicast
Group Address for the communication with IO frames is 239.255.23.1 .
Log level Here the level of details about the logged information is set.

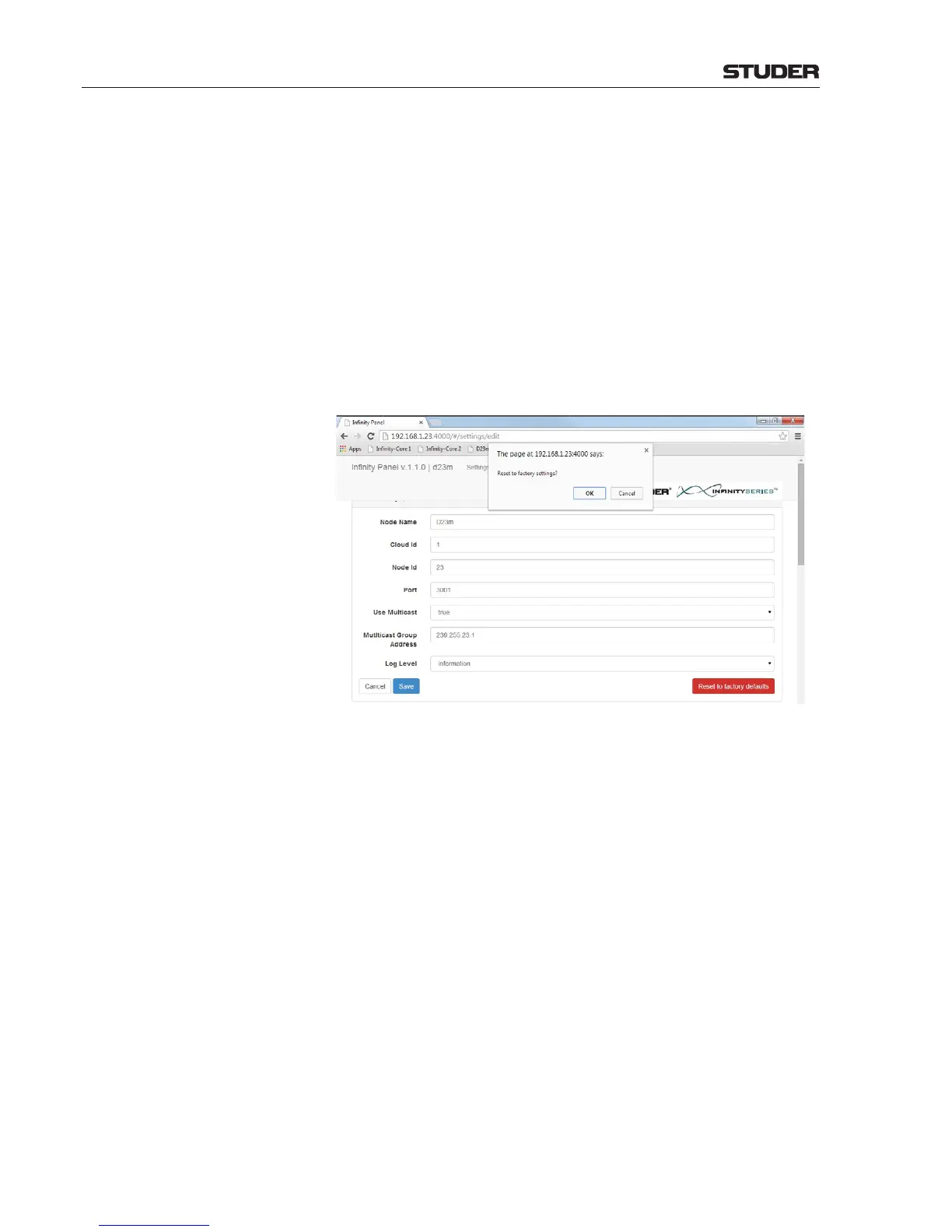

Going to the Settings page and clicking on the Edit button, there is also
the possibility to reset all parameters to the defualt values. This is done by
clicking on the red Reset to factory defaults button.
