STUDIO DUE Control Five - 3 Basic Operations; Programs

3 – BASIC OPERATIONS
PROGRAMS:
- Press PROG button to select a program..

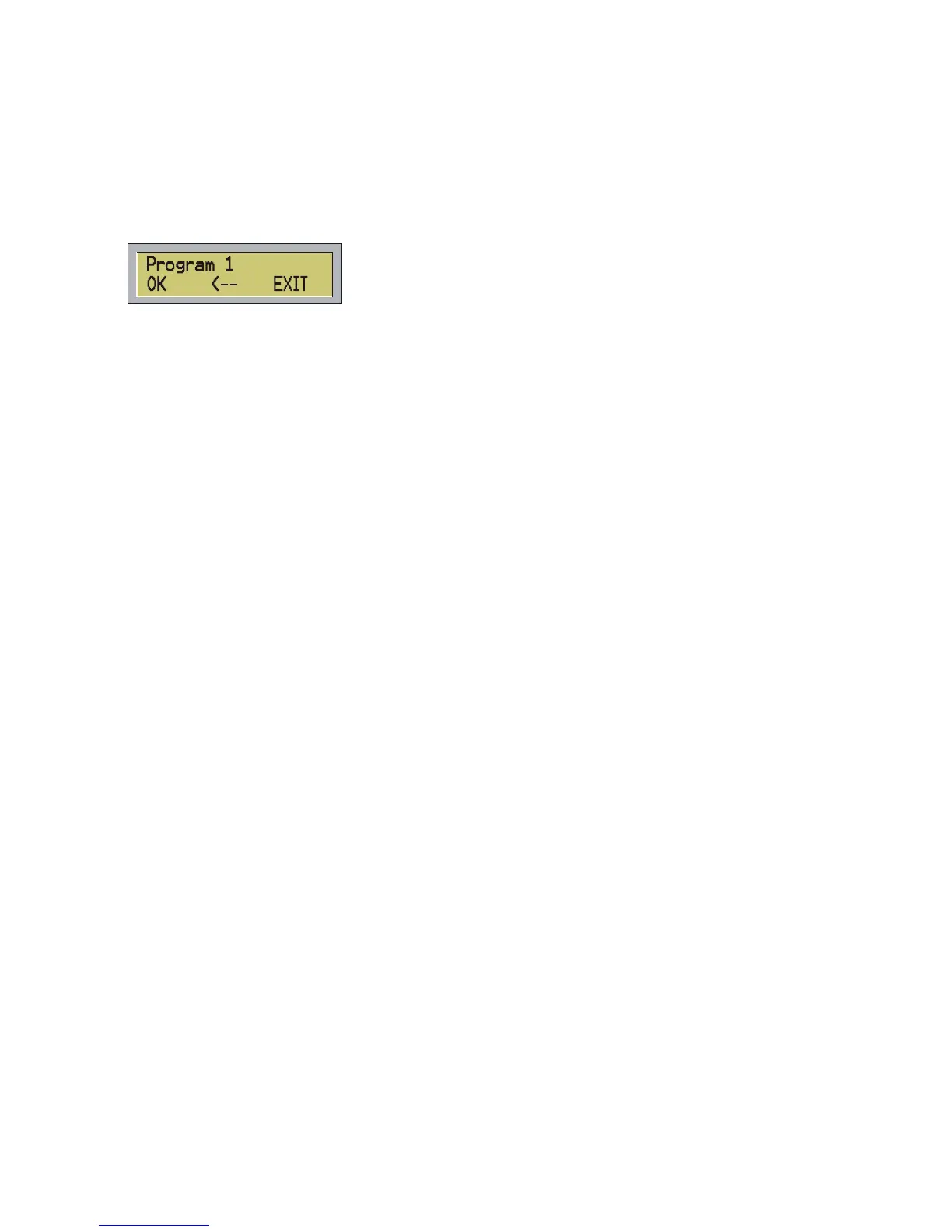

- The following menu will be shown:
- Using the 0-9 buttons, digit the required program number and press OK (F1) or ENTER. To cancel the last
digit number press F2. To decrease the value press – to increase press +, to leave the function press EXIT
(F3) or ESC.
- 100 programs are available, all numbered from 1 to 100. If 0 or a number bigger than 100 is
settled the error message ‘WARNING! OUT OF RANGE’ will be shown, and if you forget to
digit the number before pressing OK (F1) or ENTER the display shows the error message
WARNING. MISSING VALUE.
SPOTS:
- Control Five can drive up to 40 spots, numbered from 1 to 40.
- There are different ways to select the spots:
1) SINGLE button
- When LED is off (function SINGLE disconnected) pressing SPOT 1-20/21-40 allows the
selection and deselection of the corresponding spot. In this way it is possible to select more than
one spot togheter.
- Pressing two buttons SPOT 1-20/21-40, at the same time, all the fixtures included between them
will be selected. Ex: pressing SPOT 1 and SPOT 8 (at the same time) you can select fixtures
1,2,3,4,5,6,7,8 in one shot.
- When LED is on (function SINGLE working) pressing SPOT 1-20/21-40 allows the selection of
the corresponding spot and the deselection of the previous one. In this way the spot can be only
selected one-by-one.
The button SPOT 1-20/21-40 allows to select alternatively all the spots 1-20 and 21-40.
2) ALL button
- The ALL button will selects all spots.
3) NONE button
- The NONE button will deselects all spots
4) SPOT GROUPS buttons
- The SPOT GROUP buttons (1-5 ) will recall five groups of spots.
To memorize a group of spots, operate as following:
- Select the required spots through the SPOT 1-20/21-40 buttons and then press one of the 5 buttons
SPOT GROUPS 1-5,
- press the above button for more than 1 second,
- When all the LEDs of the buttons SPOT start to flash, leave the button SPOT GROUPS.
- w the group of spots is memorized on that button and, pressing it, the user will call those spots
anytime.
