STUDIO DUE Control Five

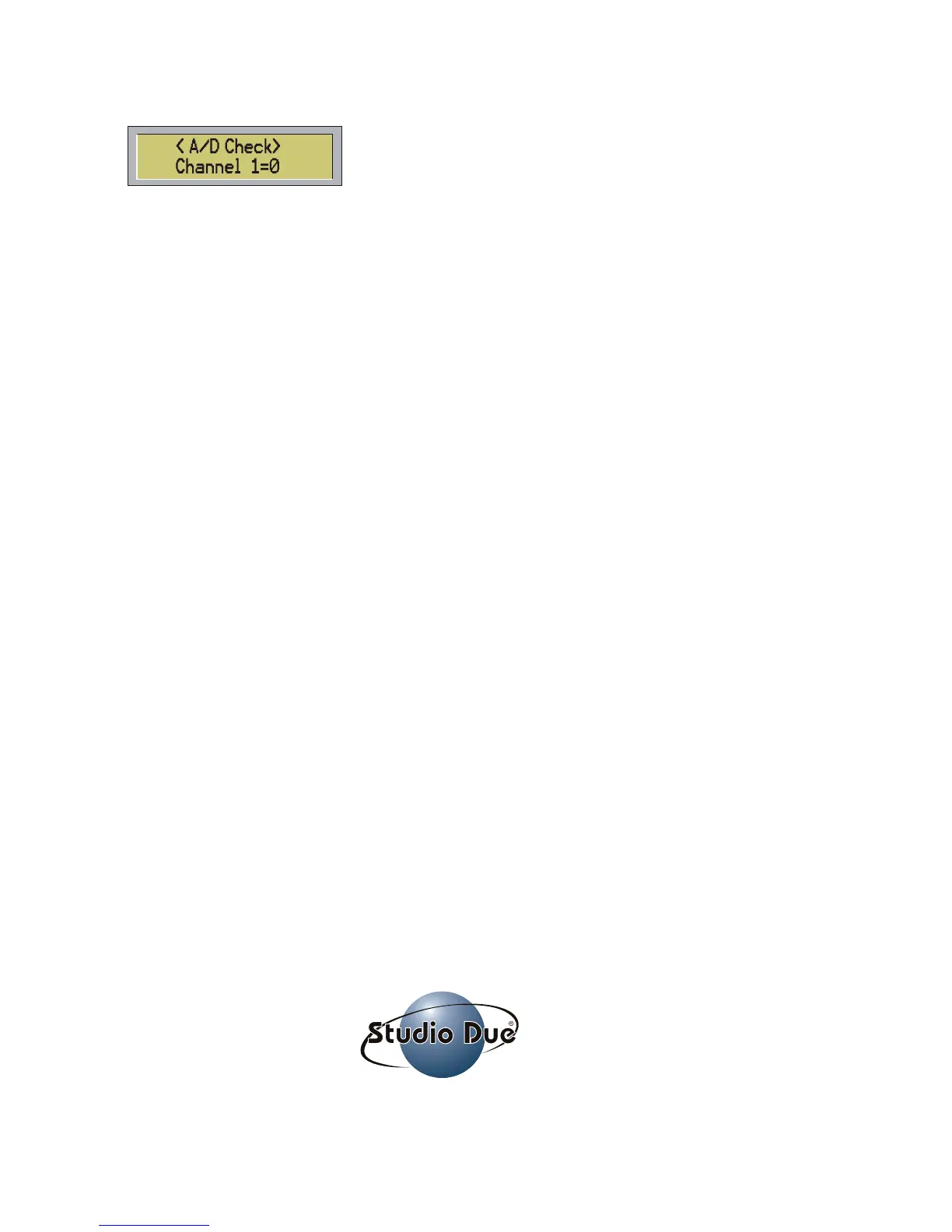

1: converters A/D test

To decrease the channel press – to increase press +. Moving the referring parameters the value will

not Press ESC to exit from the procedure.

2: keypad test.

Press any buttons to visualize the corresponding hexadecimal code. Press ESC to exit form the

procedure.

3: memory test.

To test the not-volatile memory. At the end, without any errors, the procedure ends automatically, otherwise

the message ERROR will be shown, after the visualization of the memory address that has created the

error.

4: To see the numbers of the ignitions.

Press any button to exit from the procedure.

5: To see the initial, the version and the date of the last service.

Press any button to exit from the procedure.

6 To see the content of the not-volatile memory.

To decrease the address press -, to increase press +.

Pressing 1,2,3 e 4 the buttons +/- can be changed (to increase or decrease) as follow:

1:8

2:128

3:2048

4:32768

Press ESC to exit form the procedure
