KEYBOARD LAYOUT: DETAILS
Transport-
Live Edit Controls
Sliders
Back Panel
Midi Out
Adapter In
Power
Switch
Pedal In
Sliders 1-8
Master
Volume
Drawbars 1-9
Banks: A-B-C
vv
vv
m
m
m
m
kk
kk
--
--
88
88
88
88
TT
TT
UU
UU
DD
DD
II
II
OO
OO
LL
LL
OO
OO
GG
GG
II
II
CC
CC
Live Edit Controls
Transport

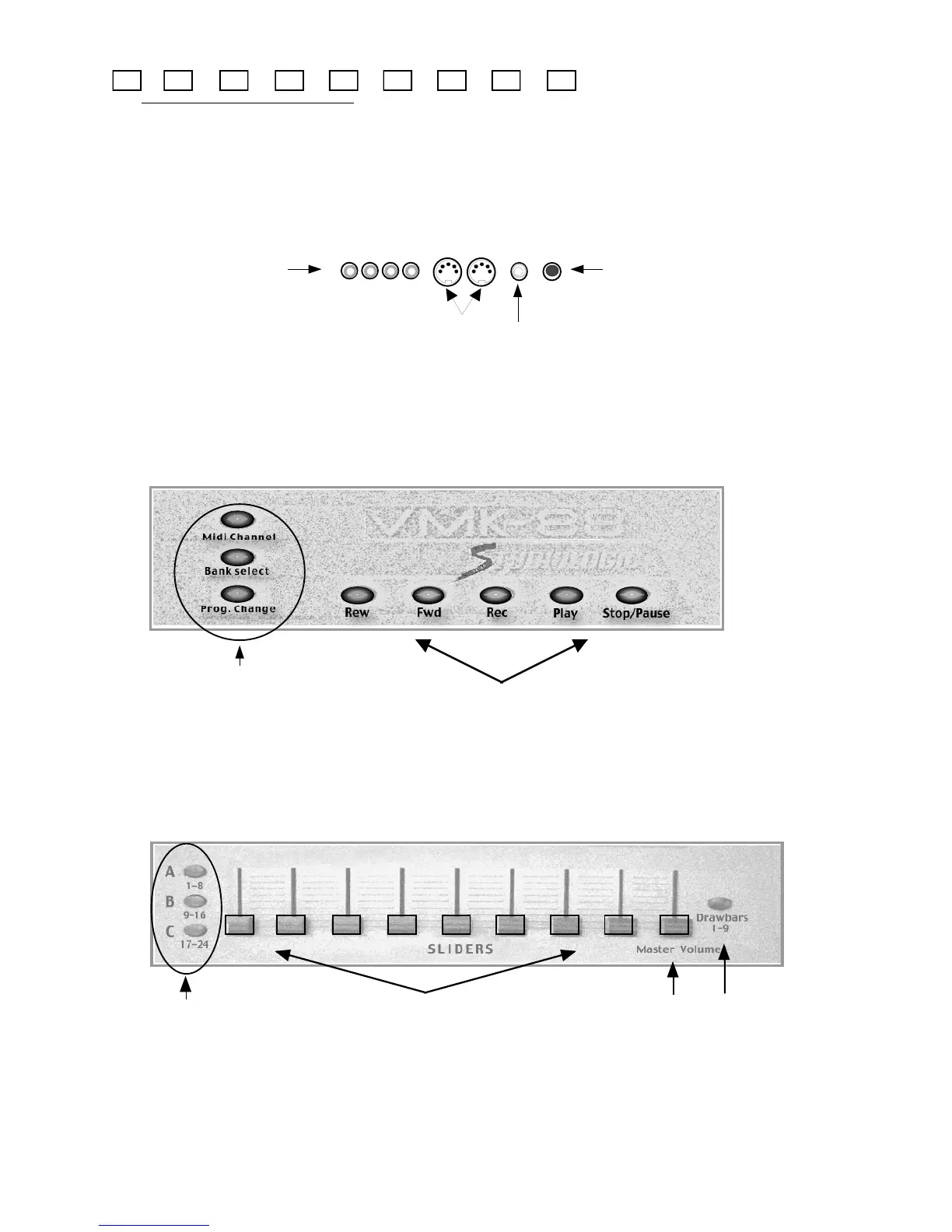

The back panel contains the connective parts of the keyboard: Dual Midi outputs and 4
independent foot controller inputs. The pedal inputs can accept sustain or volume
pedals, each capable of sending out a completely different controller message. Pedal
inputs can be programmed to accept almost any variety of manufacturers foot pedals
regardless of polarity. The power adapter input and power switch are also located in the
rear panel.
Transport and Live Edit controls are centrally located for quick
access at a gig or in the studio. Simple but powerful, the Transport
can easily be programmed to control a sequencer or a drum machine.
Live Edit is indispensable for a quick program change, bank select or
Midi channel change.
Sliders are perhaps the most desirable controls in a studio setting. Each of the 9 sliders may be
programmed independently. They can send command specific messages, like volume, to a
sound module. Or they can send control messages that may be routed through a sequencer to
control various functions of the program you are running.
See your program manual for details. 4
banks in total x 9 sliders gives you 36 slider commands per patch.
Note: Drawbar is also a Bank.
