CYBERWALL™ INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Microprocessor Controller
An E² pluS microprocessor controller is supplied standard with CyberWall™ systems (see Figure 1).
Controller features include full alarm system; input/output monitoring status; full integrated control of
cooling; multi-A/C unit control and remote communication with building management systems. The
controller’s Graphic Terminal is mounted on the main electrical box door. The display features a large color
display to clearly show information. Information is color coded so that at a glance, the unit’s status is can be
determined (e.g. In Alarm or In Override mode).

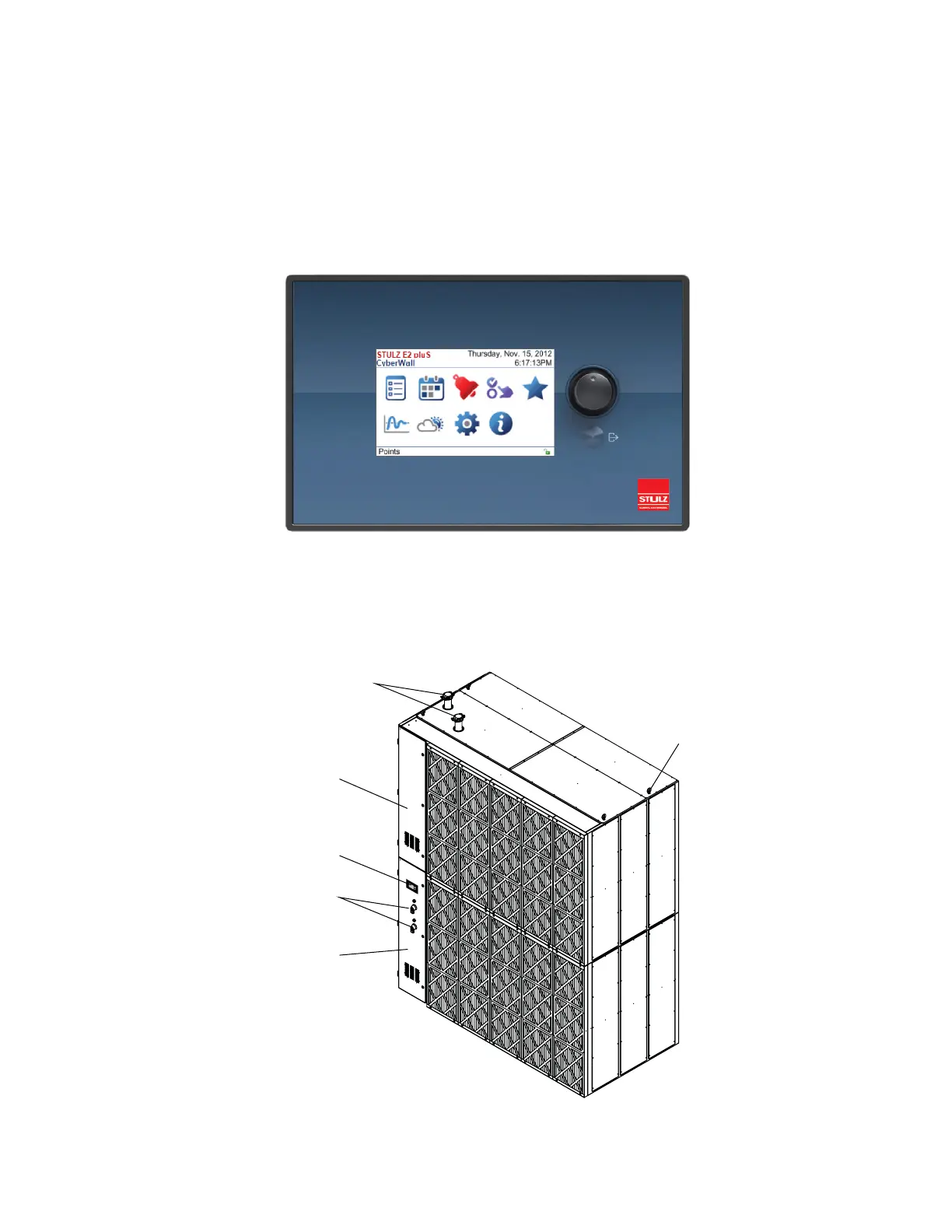

Figure 1. E2 pluS Microprocessor Controller
Mechanical Interfaces and Features
Figure 2 shows the major mechanical and control interfaces on the unit.
CHILLED WATER CONNECTIONS
POWER DISCONNECT
SWITCHES
GRAPHIC TERMINAL
AUXILIARY
ELECTRICAL
BOX DOOR
MAIN
ELECTRICAL
BOX DOOR
LIFTING EYES (4 PL)
Figure 2. Unit Cabinet Features
