6. Installation
6.1 Positioning
Check that the installation site is appropriated for the unit weight, which you can read in the technical data.
The A/C unit is designed for the inside installation on a level base. The solid base frame contributes significantly to
an even weight distribution. When selecting the installation site take into account the necessary clearances for the
maintenance and the air flow.
Children, unauthorized persons and animals may not have access to the installation site of the A/C unit.
Vibrations emanate from the A/C unit due to compressor operation. To avoid such vibrations, install the unit on a
vibration absorbing base, as it is realized in case of a positioning on a raised floor socket e.g. by Mafund strips.
Use a vibration absorbing base for upflow units also.
Do not operate the A/C unit in office rooms or other rooms sensitive to noise.
Maintenance
clearance
Air intake area for Downflow units and air
outlet area for Upflow units without duct
connection
The unit may not be operated in an explosive atmosphere!
Size 1 Size 2

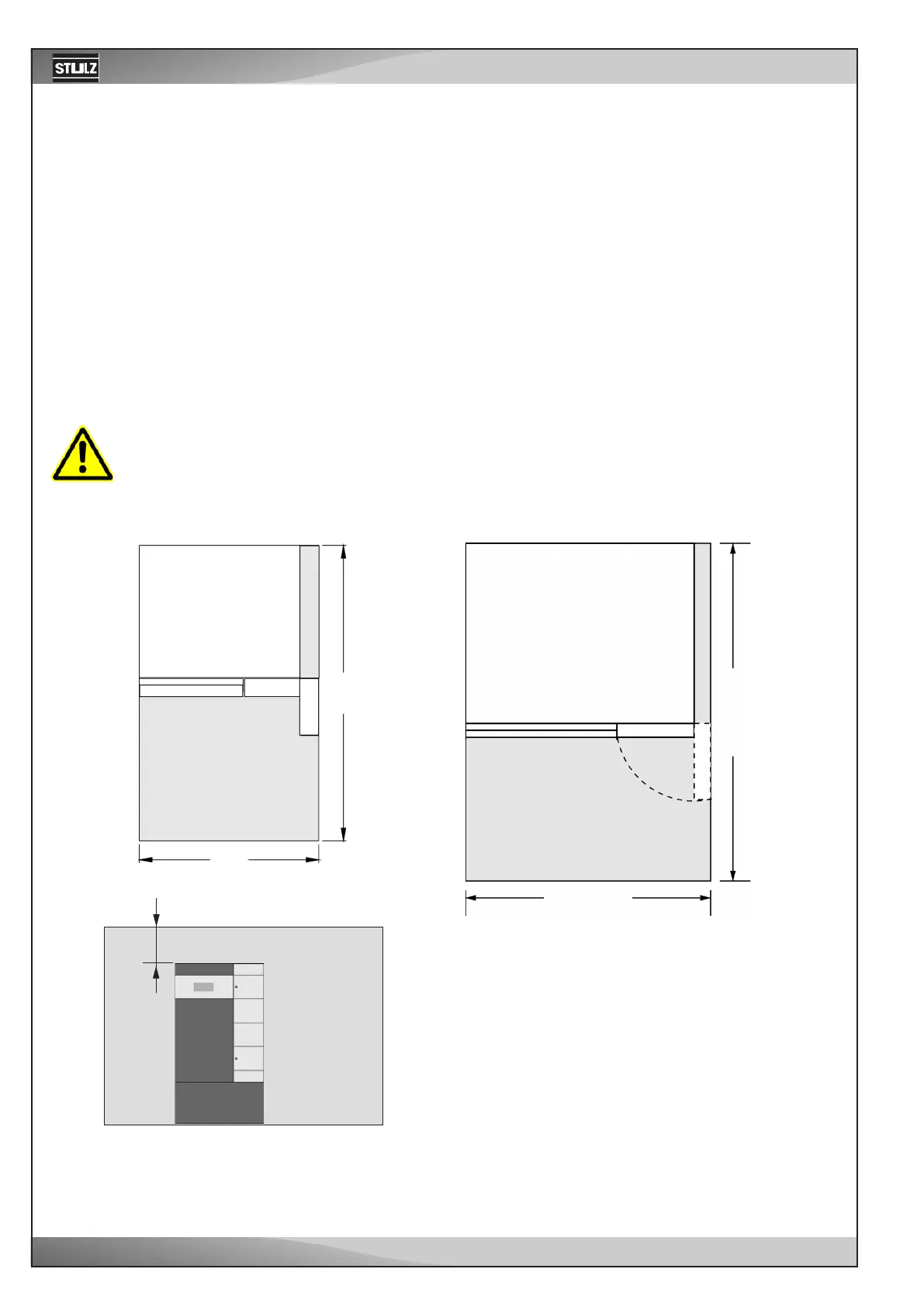

Maintenance clearance
