Stulz Mini-Space DX CCD151A - Air Damper for Downflow Units

8
/01.2017/air_MSDX
120
80
EN
Bottom view
Front side
Bottom view
Front side

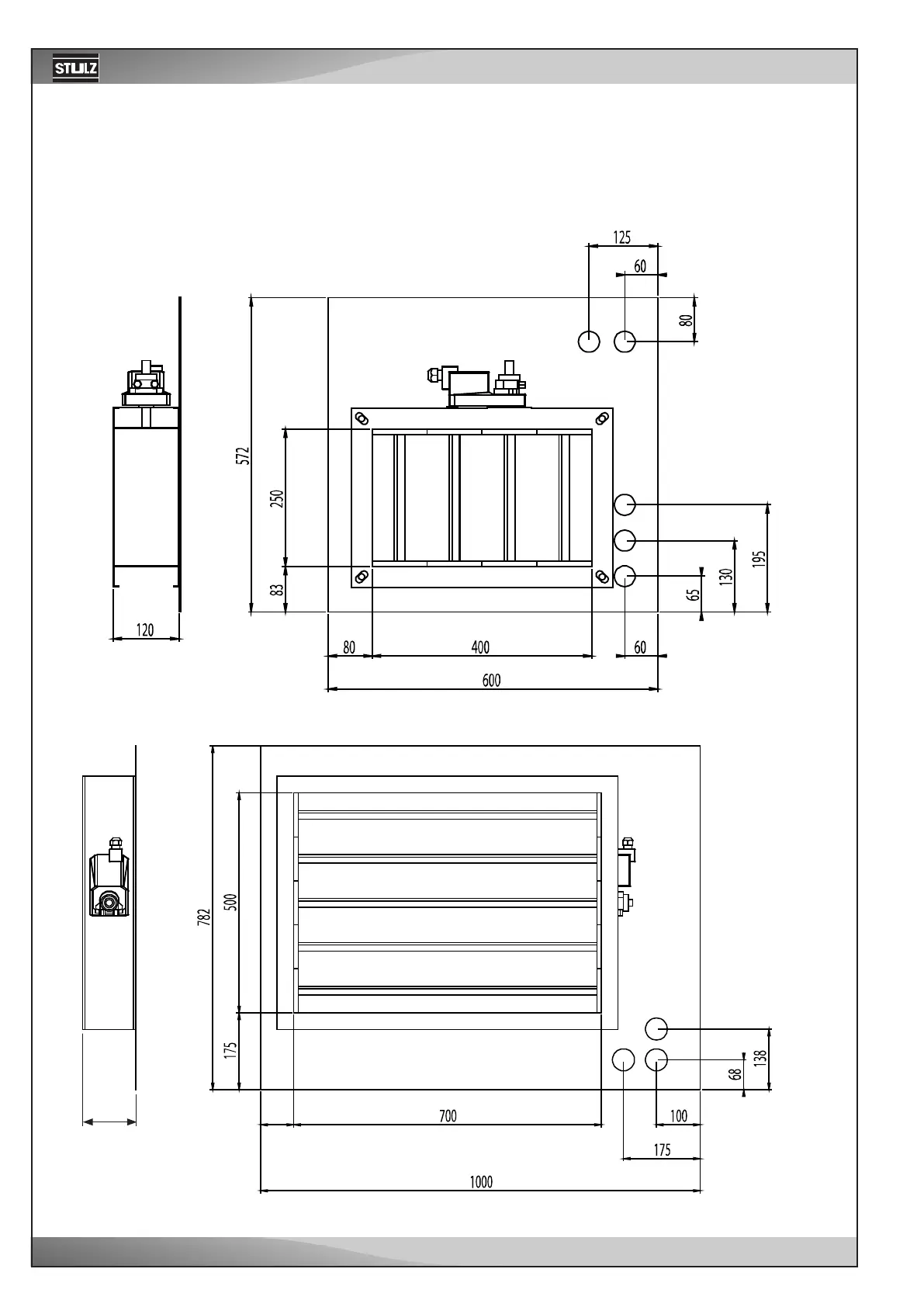

Air damper - Downflow
Here the use of the air damper on the discharge side of downflow units is shown. For the installation of an air damper
below the downflow unit an adaptor plate (see page before) is necessary.
Size 2:
Size 1:
