Stulz Mini-Space DX CCD151A - 12.4 Raised Floor Stand

1
/11.2015/raisedfloor
1
2
3
4
T
T + 20
B
B + 20
Baugröße 1 2
B mm 600 1000
T mm 575 782
- mm - -
Stützen Stk 4
Rechteckprofile 70 x 40 Stk 4
Mafundstreifen Stk 4
Schrauben M8 x 30 Stk 8
EN

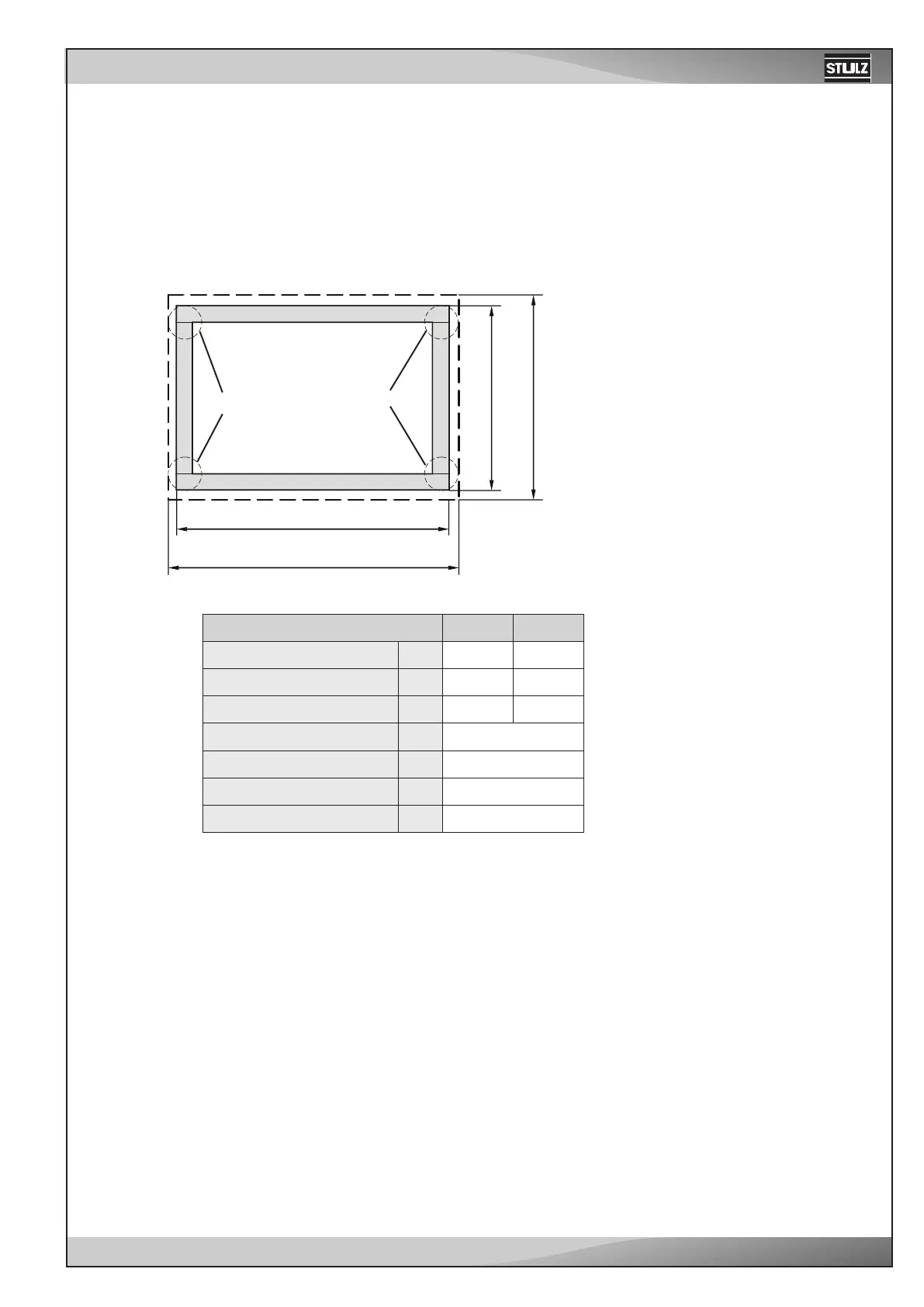

12.4 Raised floor stand
The floor stand is used to adjust the height of the A/C unit to the existing raised floor and consists of an encircling
rectangular profile of galvanized steel with adjustable screw sockets. Anti vibration compound is recommended bet-
ween concrete floor and base plate.
Locating the supports
(correspondingly on
the other side)
Cabinet size
B mm
mm
mm
Supports n°
Rectangular profiles 70 x 40 n°
Mafund strips n°
Screws M8 x 30 n°
Cabinet size:
