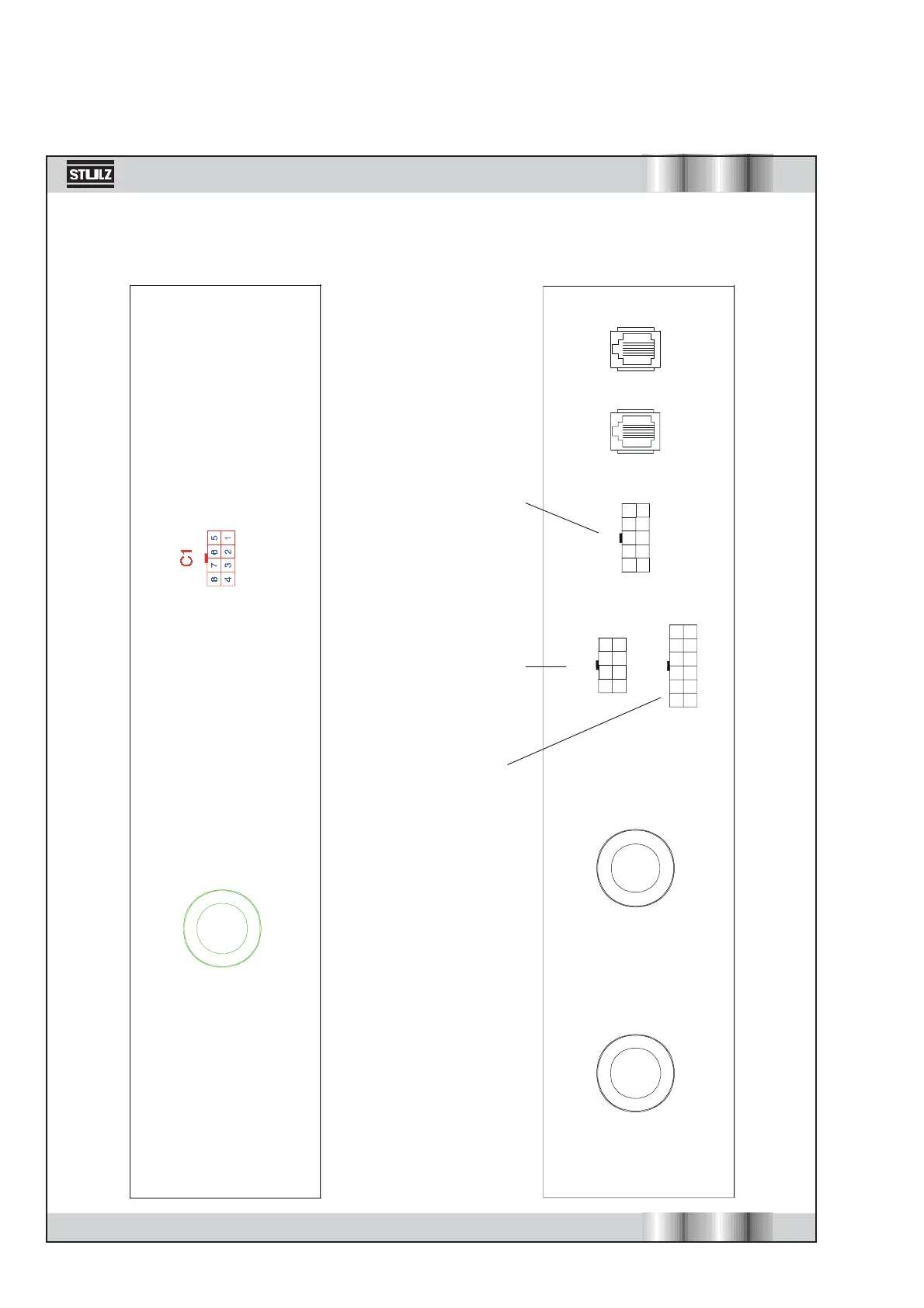

Configuration for cable connections
On electrical panel in the unit, the following socket configurations can be found:
with units type 2 (mechanically controlled)
Main power supply
Pin Description
1/5 Common alarm
2/6 not used
3/7 not used
4/8 not used
Main power supply Emergency power supply
with units type 1 (C1010 controller)
Master/Slave
Connector
Remote Panel
Connector
Pin Description C1
1/5 Air flow alarm
2/6 High pressure alarm
3/7 Low pressure alarm
4/8 Common warning
Pin Description C2
1/7 Common alarm
2/8 High humidity alarm
3/9 Low temperature alarm
4/10High temperature alarm
5/11Dirty filter alarm
6/12Not used
Pin Description C3
1/2 External enable
3/4 Door open/Intrusion alarm
6/7 Internal humidity sensor
8/9 Fire-smoke presence
5/11External humidity sensor
