wib8000 original instructions
3.2 Ethernet patch cable
(not included)
crossed
Net-
work

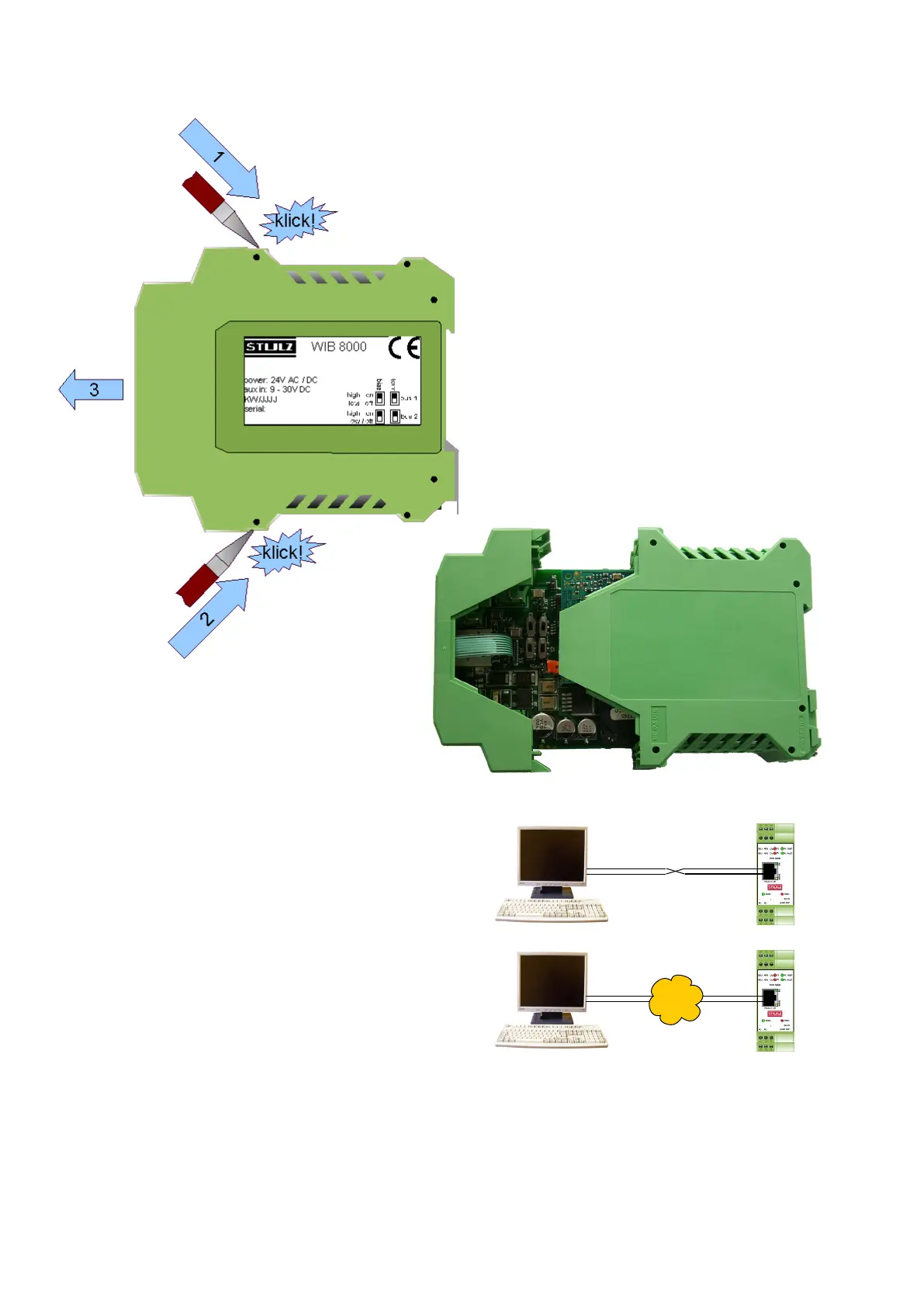

The WIB8000 housing can be opened best with a
screw driver by pressing down the latchings.
The front part of the housing at which the board is
fixed can be drawn out to the front.
Note:
In chillers with a C6000, no sequencing at the chiller itself may be activated when a WIB8000 connection
exists or is planned. Otherwise a communication with the WIB8000 is not possible, as the BMS bus is already
used for the chiller sequencing.
switch, no hub) a cross type cable is necessary.
The cable length should not exceed 100 m
according to the Ethernet standard.
When installing the cable take care of not installing
it in the proximity of power cables.
