PAGE 10 STUV 6 | SPECIFICATIONS & MANUFACTURER INSTALLATION GUIDE
^

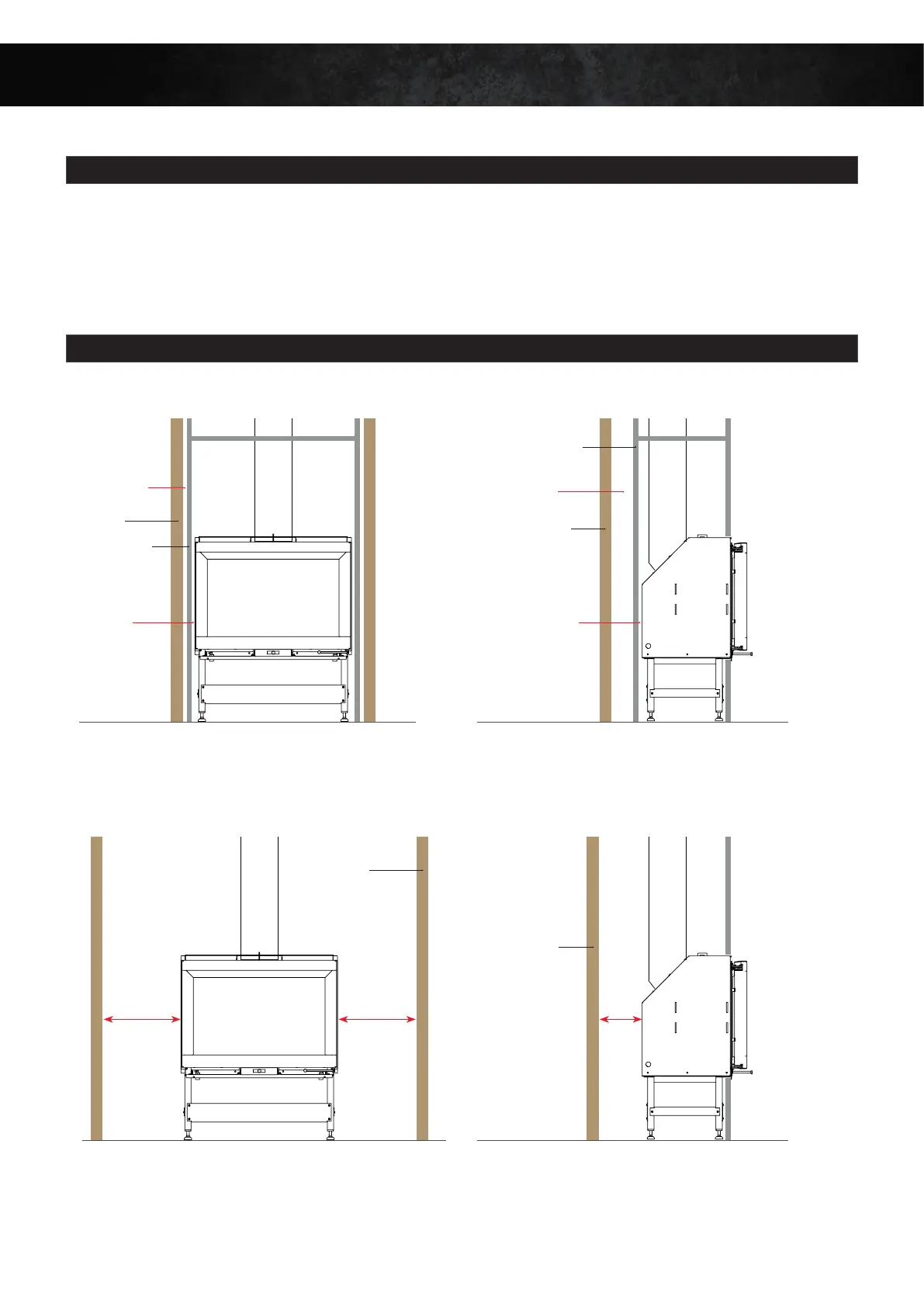

2.2 FRAMING CLEARANCES
Stuv 6 is a zero clearance box to masonry. Allowing a small expansion gap is recommended to
prevent possible damages to the firebox or surrounding materials.
IMPORTANT: The fireplace is not load bearing
With Silicate Board (40mm)
Without insulative board
MASONRY INSTALLATION
CLEARANCES TO COMBUSTIBLE MATERIAL
Timber stud
Timber stud
Combustible back wall
Combustible back wall
40mm silicate board
40mm silicate board
FRONT
FRONT
SIDE
SIDE
20mm air gap
400mm 150mm400mm
75mm air gap
10mm air gap10mm air gap
