PAGE 12 STUV 6 | SPECIFICATIONS & MANUFACTURER INSTALLATION GUIDE
^
SETTING UP THE CONNECTIONS

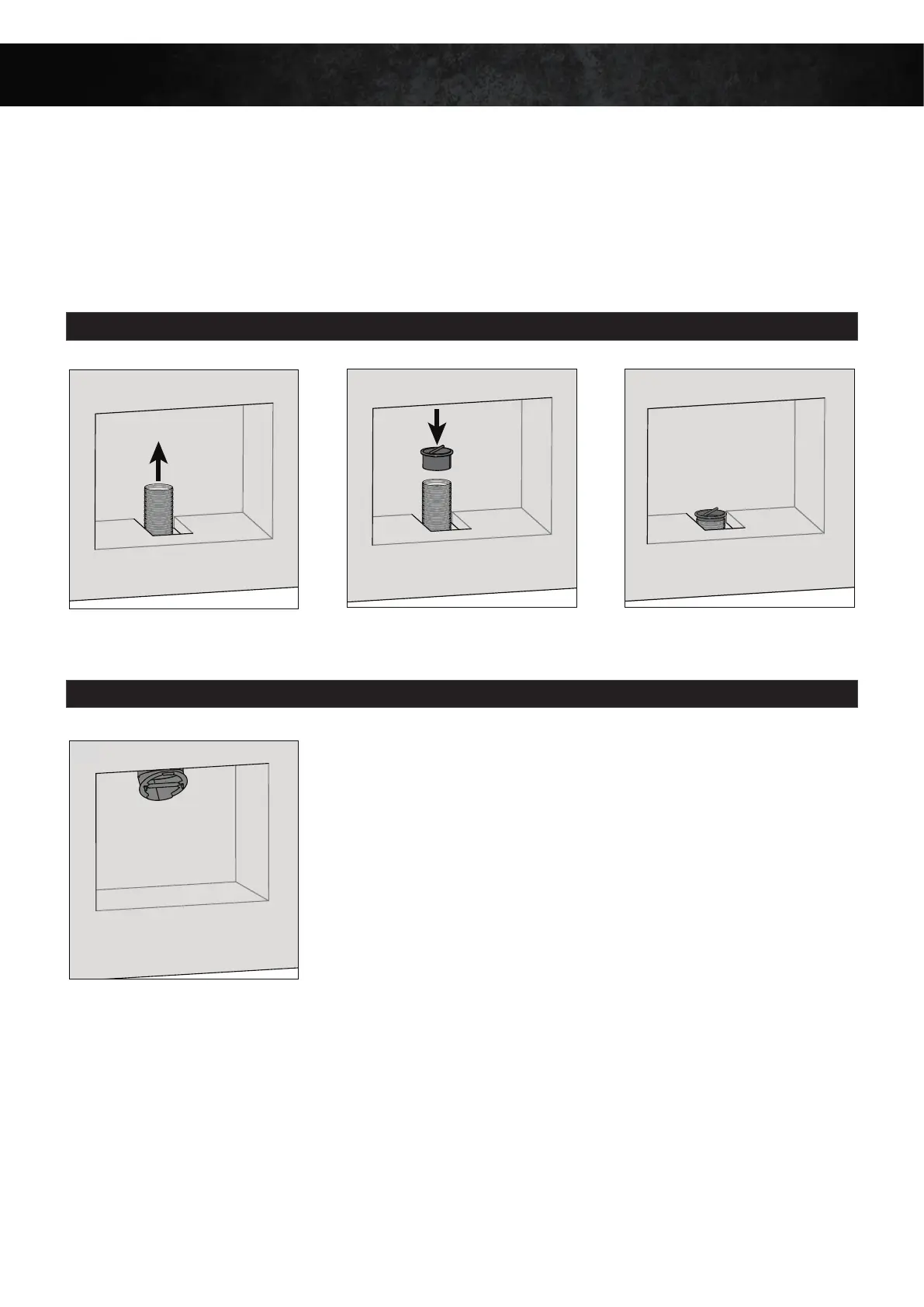

The STUV 6 is specifically designed so that it is easy to connect to outside air intake (optional) and smoke outlet
(flue). The connections are carried out from the inside of the unit once fitted.
So before fitting the unit, prepare the connections as per below:
Install the flexible or solid flue so that is comes out close to where the appliance outlet will be located. Attach the
smoke outlet connection provided with the fireplace (if using a flexi flue, use a metal duct clamp - not provided).
OUTSIDE AIR INTAKE - REAR OR BACK (OPTIONAL)
FLUE
2
3
1
3
21
2
3
1
3
21
Install the air inlet duct and attach the nozzle with a metal duct clamp.
