PAGE 21 STUV 6 | SPECIFICATIONS & MANUFACTURER INSTALLATION GUIDE
^

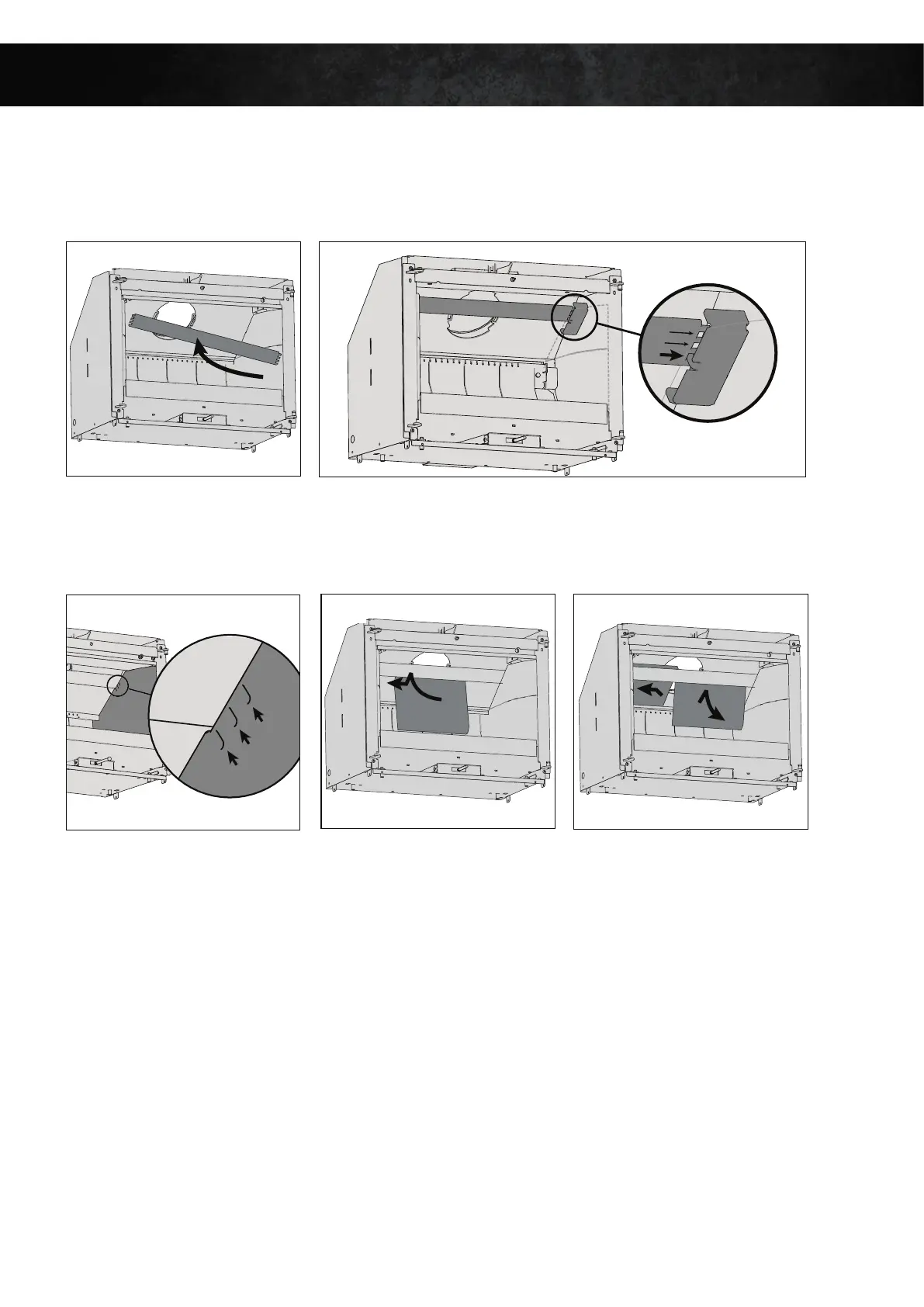

Put the combustion chamber parts back on in reverse from p14 and p13
Then put deflector back on as per below:
1
2
4
3
5
The default position of the vermiculite deflector housing is the highest
position. If you have a “lazy’” chimney, you can lower the housing to the
second or third notches (figure 2).
Use the markings on the side
to get the right position for the
deflector housing (figure 3).
FITTING INTERNAL PARTS AND DEFLECTOR BACK ON
