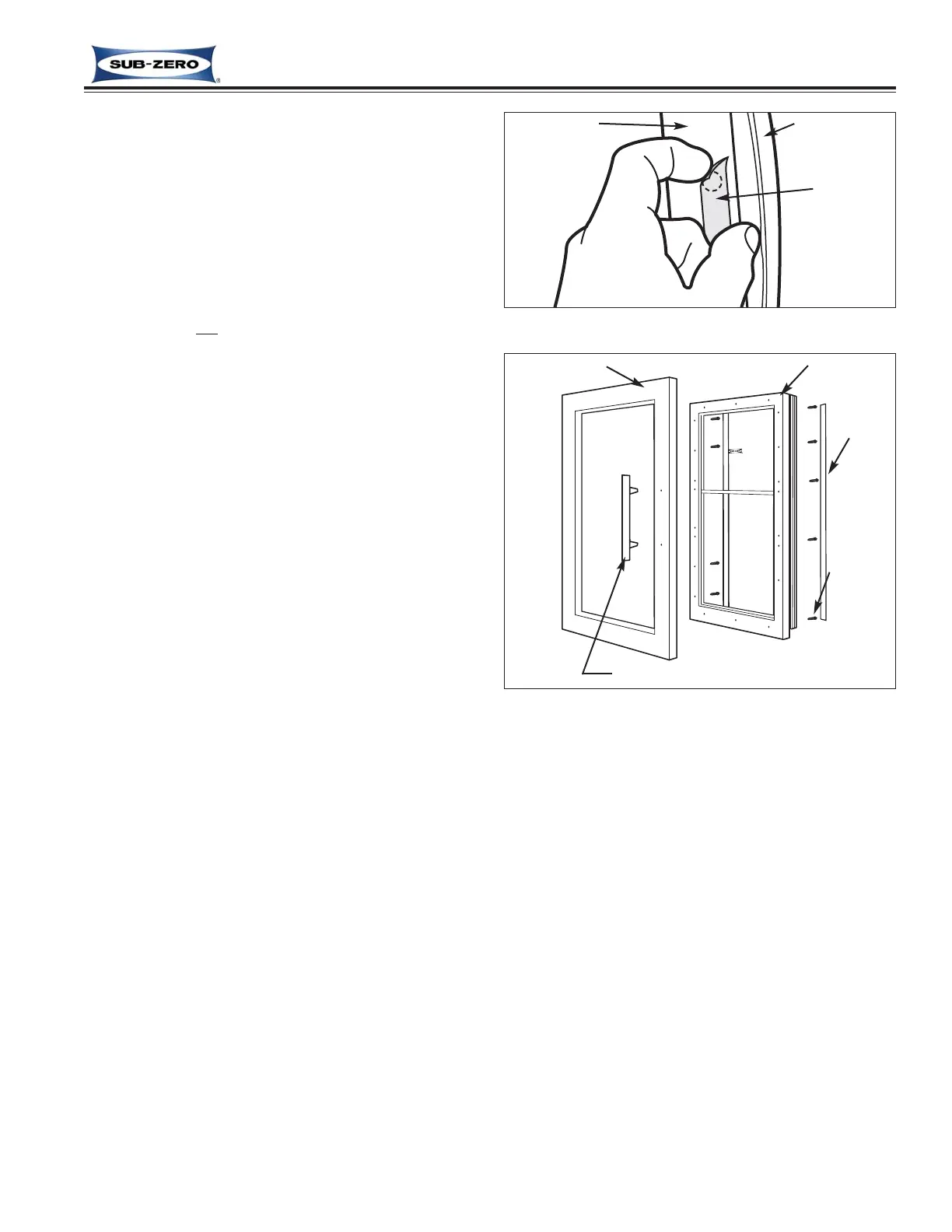

Figure 2-23. Overlay Door Panel Removal
Door Assy
Poly
Tape
Panel
Mounting
Screws
Overlay Panel
SS Handle Shown (Handle may vary)
Figure 2-22. Poly Tape Removal
Poly Tape
Door Gasket
Door Frame
Overlay Door Panel Removal and Installation (424-2)
Overlay panels are attached to the door using screws
passing through the door frame from the rear, into the
panel. The handle may also be attached through the
door frame or just through the panel.
To Remove an Overlay Panel:
1. Open door.
2. Remove Poly-tape under gasket which covers
panel mounting screw holes (See Figure 2-22).
NOTE: Do not
discard tape. It must be reapplied
when panel is reinstalled.
3. Extract panel mounting screws, and possibly handle
mounting screws. (See Figure 2-23)
4. Pull overlay panel from door.
NOTE: To install overlay panel, reverse steps above.
