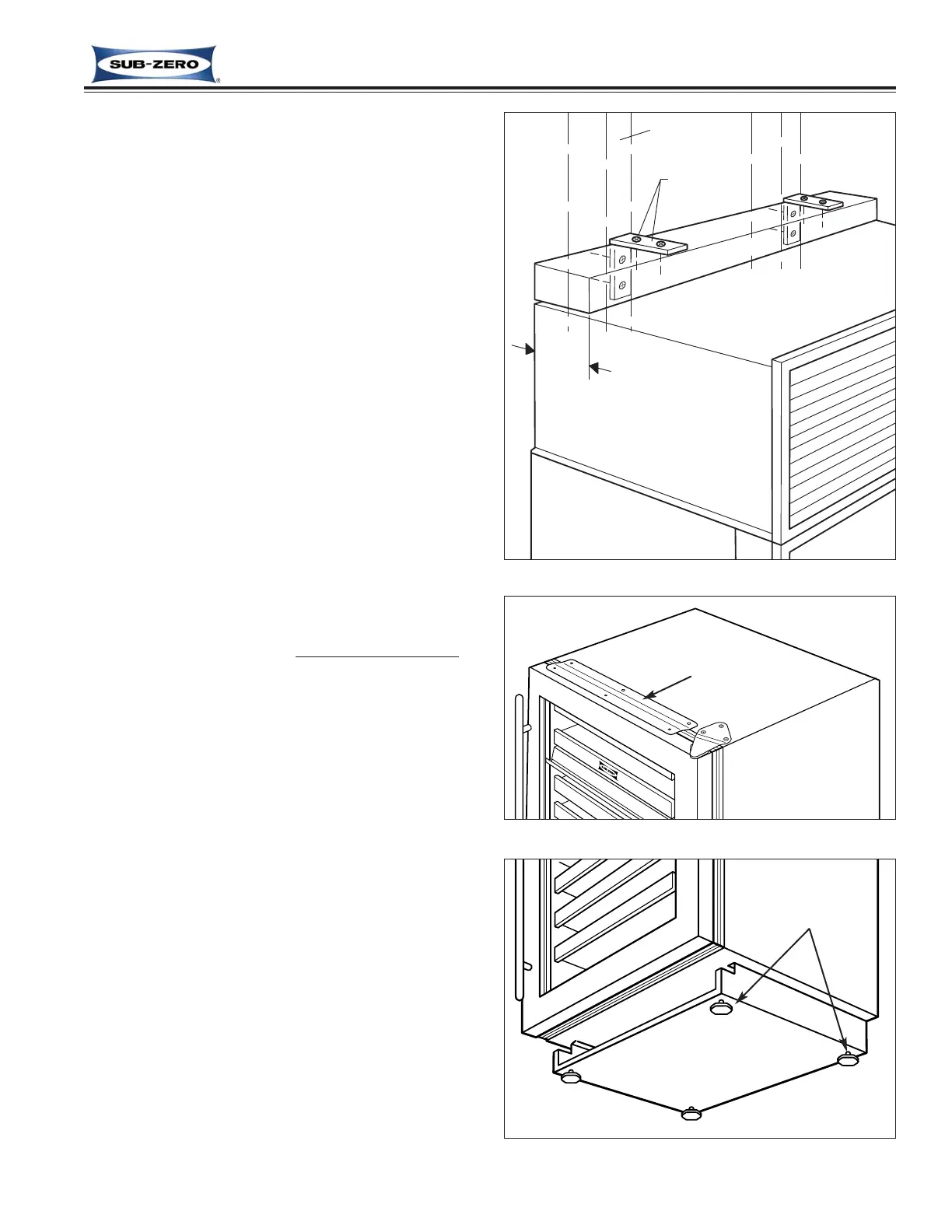

Figure 2-3. Anti-Tip Components
Wall Stud
Wood Block
Screws &
L-Bracket
Min. 3”
(76.2 mm)
Anti-Tip Components Installation (430-2)
If anti-tip components (aka wood block / blocking kit)
need be installed, follow these steps (See Figure 2-3):
1. Locate and mark two wall studs at back of unit
installation location.
2. Identify and mark proper height to clear unit top.
Space between unit top and bottom of wood block
must NOT be more then 1/4" (6.1 mm).
3. Using the L-brackets and screws provided, secure
wood block to wall studs, located in step 1, making
sure screws extend 7/8" (22.2 mm) into each wall
stud. The wood block must extend a minimum of 3"
(76.2 mm) over unit.
4. Utilizing front and rear levelers, raise and level unit
until it contacts wood block (See leveling instructions
on following pages).
5. Refer to Installation Guide provided with the unit for
any additional information needed.
Unit Leveling (424-2, 424FS-2)
NOTE: Model 424-2 must be leveled before installing
into rough-in opening. If unit is already installed and
anchored with countertop bracket (See Figure 2-4),
Extract anchor screws before leveling, reinstalled after.
To Level 424-2 - Place it in front of rough-in opening,
then turn each leveling leg clockwise to raise unit, coun-
terclockwise to lower unit (See Figure 2-5).
To Level 424FS-2 - Turn each leveling leg clockwise
to raise unit, counterclockwise to lower unit (See Figure
2-2).
Figure 2-5. Leveling Legs
Figure 2-4. Countertop Bracket
Leveling Legs (4)
Clockwise to raise,
Counterclockwise
to lower
Countertop Bracket
To Next Page
