Sealed System Information
600 Series
(Prior to #1810000)
4-7
#3756270 - Revision B - January, 2006

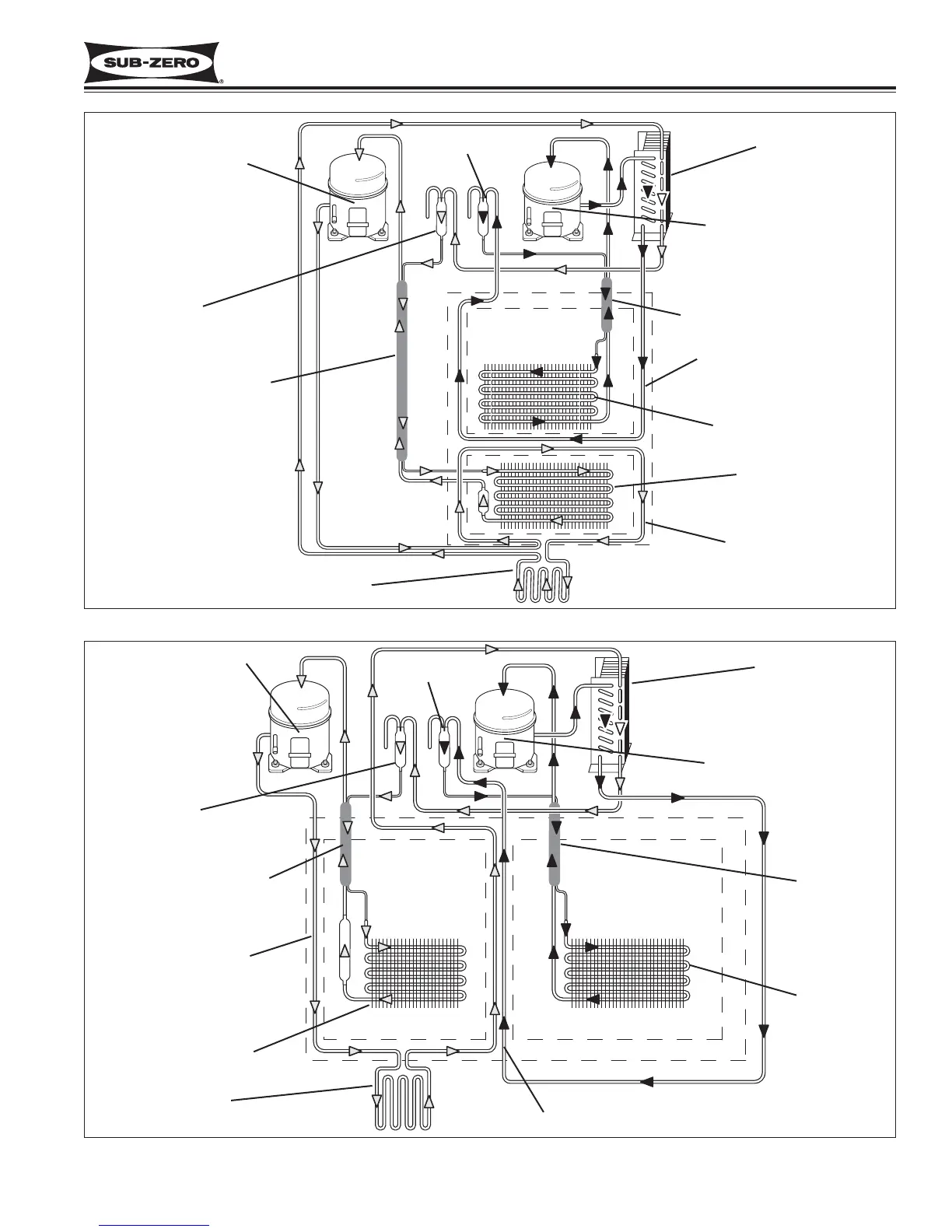

Figure 4-9. Models 611, 650 Refrigerant Flow
Figure 4-10. Models 632, 642, 690 Refrigerant Flow
Freezer Compressor
Freezer Drier
Freezer Heat Exchanger
Drain Pan Heater
Freezer Heater Loop
Freezer Evaporator
Refrigerator Evaporator
Refrigerator Heater Loop
Refrigerator Heat Exchanger
Refrigerator Drier
Refrigerator Compressor
Dual Condenser
Drain Pan Heater
Freezer Heat Exchanger
Freezer Compressor
Freezer Heater Loop
Freezer Evaporator
Freezer Drier
Refrigerator
Drier
Refrigerator Heater Loop
Refrigerator
Evaporator
Dual Condenser
Refrigerator Compressor
Refrigerator
Heat Exchanger
