Component Access / Removal
600 Series
(Prior to #1810000)
7-4
#3756270 - Revision B - January, 2006
Refrigerator & Freezer Compartment Shelves
(All Models)
Remove and adjust shelf by tilting up at front while lift-
ing the back up and out of the shelf ladders. (See
Figure 7-4)
To reinstall, tilt front of shelf up and align hooks at back
corners with slots in shelf ladders, then insert hooks
into slots and lower front of shelf.
Utility Basket
(Models 601R, 611, 632, 642, 650, 690)
Remove the utility basket from under the shelf assem-
bly by pulling the basket out and lifting at the front.
Reverse to reinstall. (See Figure 7-5)
Crisper Glass Shelf
(Models 601R, 611, 632, 642, 650, 690)
Remove crisper glass shelf assembly by opening top
drawer and lifting assembly off of crisper glass sup-
ports.
Large High Humidity Drawer
(Models 601R, 611, 632, 642, 650, 690)
Remove high humidity drawer assembly by pulling open
until drawer stops, then lift front of drawer while pulling
out. (See Figure 7-6)

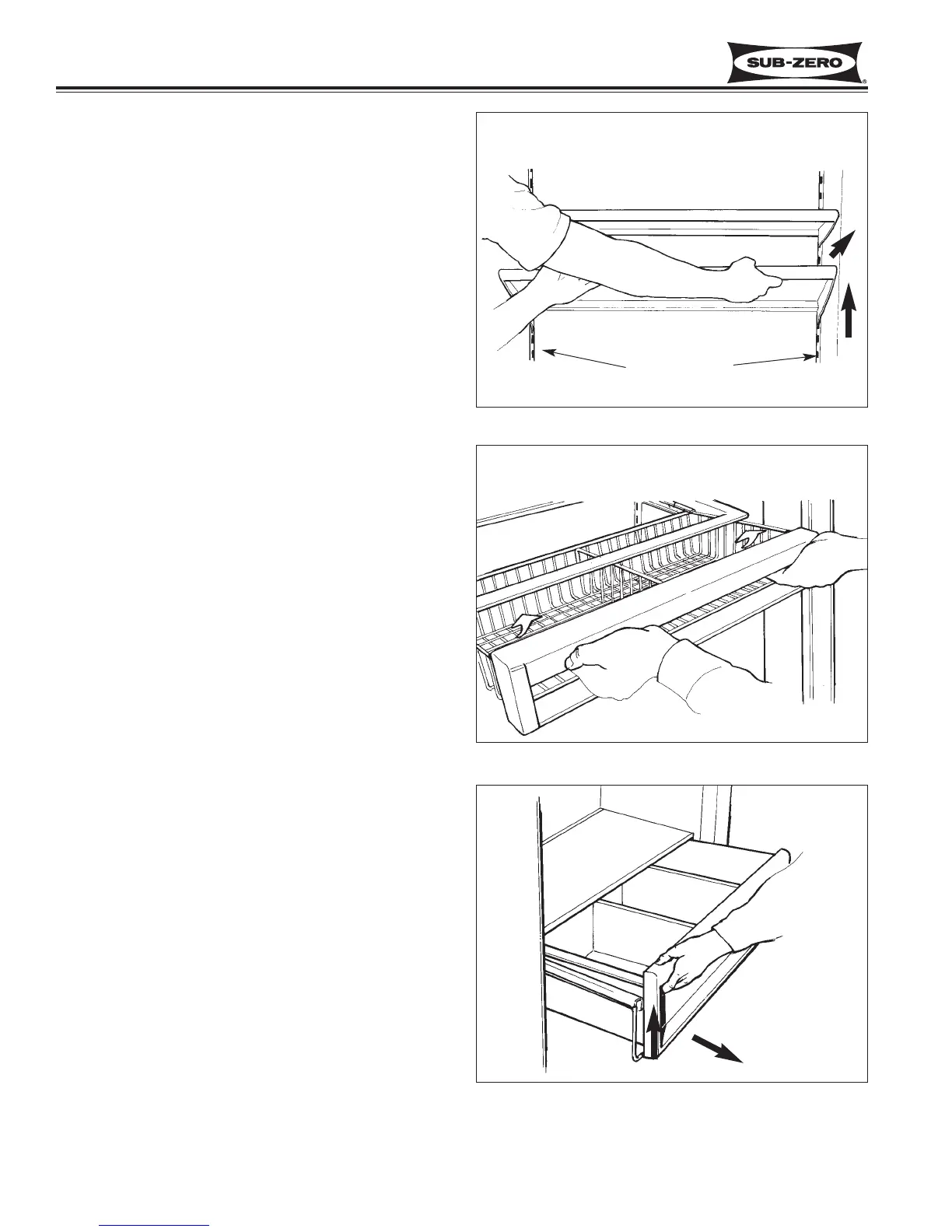

Figure 7-6. High Humidity Drawer Removal
Figure 7-4. Shelf Removal
Figure 7-5. Utility Basket Removal
Shelf Ladders
