Component Access / Removal
600 Series
(Prior to #1810000)
7-5
#3756270 - Revision B - January, 2006

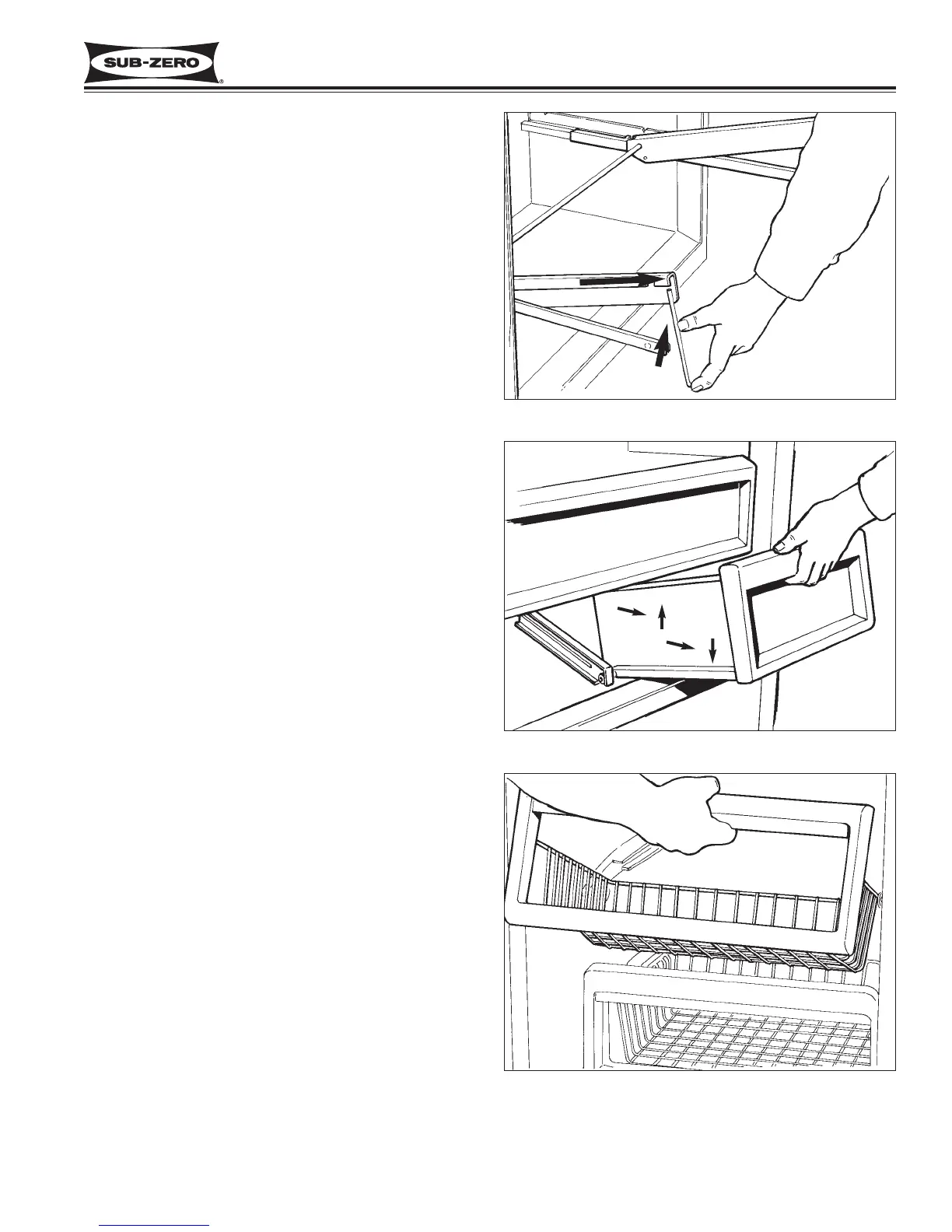

Humidity Drawer Carriage Assembly (Models 601R,
611, 632, 642, 650, 690)
After removing the crisper glass shelf and high humidity
drawer, lift carriage assembly up at front to disengage
from the tab on slide assemblies. Then pull carriage
assembly forward to disengage from hooks at rear of
slide assemblies. (See Figure 7-7)
NOTE: The silicone seal between carriage and slide
arm may need to be broken with a knife.
Small Storage Drawer
(Models 632, 642, 690)
Remove the small storage drawer assemblies by pulling
open until drawer stops (1). Raise front of drawer (2)
while pulling out further to bypass stop (3), then drop
front of drawer down while lifting rear drawer rollers out
of the roller/slide assemblies (4). (See Figure 7-8)
Freezer Basket
(Models 601F, 632, 642, 690)
Remove freezer baskets by pulling open until basket
stops, then lift up at the front and pull out. (See Figure
7-9)
Figure 7-9. Freezer Basket Removal
Figure 7-7. Drawer Carriage Assembly Removal
Figure 7-8. Small Storage Drawer Removal
1
2
3
4
