7-37
Built-In
Built-In
(600-
(600-
2
2
)
)
Series
Series
Component Access / Removal
#3758407 - Revision B - August, 2006

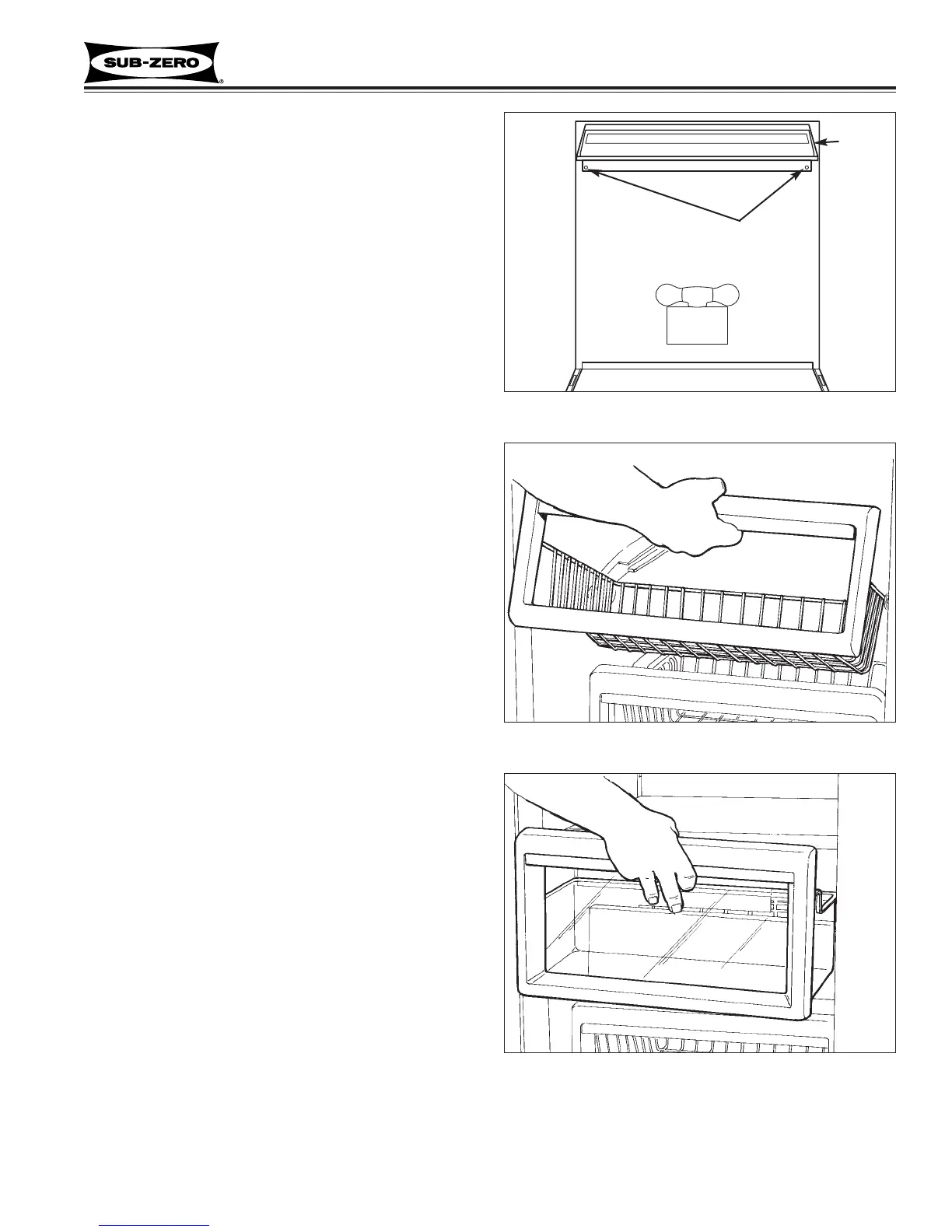

Figure 7-94. Ice Bucket Assembly
Pull
out.
Lift
up.
Freezer Upper Front Panel Assembly
(632-2, 642-2, 661-2)
The upper front panel assembly is secured to the ceil-
ing of a compartment by two rows of screws. The front
row of screws (which are hidden) pass through spacers
and fit into keyhole slots in the panel assembly. The
back row of screws hold the assembly in place.
To remove a upper front panel assembly, the light dif-
fuser must be removed first, then (See Figure 7-92):
1. Extract back row of screws from panel assembly.
2. Push panel assembly back to line up front row of
screws with keyhole slots.
3. Lower panel assembly down and pull out.
Freezer Basket Assembly (632-2, 642-2, 661-2)
To remove freezer basket assembly (See Figure 7-93):
1. Pull basket open until it stops.
2. Lift up at front and pull out.
Ice Bucket Assembly (632-2, 642-2, 661-2)
A flange at the back of the ice bucket assembly hooks
over the top edge of the ice bucket carriage assembly.
To remove the ice bucket assembly (See Figure 7-94):
1. Pull ice bucket open until it stops.
2. Lift up and pull forward.
NOTE: To reinstall ice bucket, pull ice bucket carriage
assembly all the way forward before attempting to hook
flange at back of ice bucket over top edge of carriage
assembly.
Figure 7-93. Freezer Basket
Figure 7-92. View of Compartment Top
Back row
of screws
Upper
Front
Panel
To Next Page
